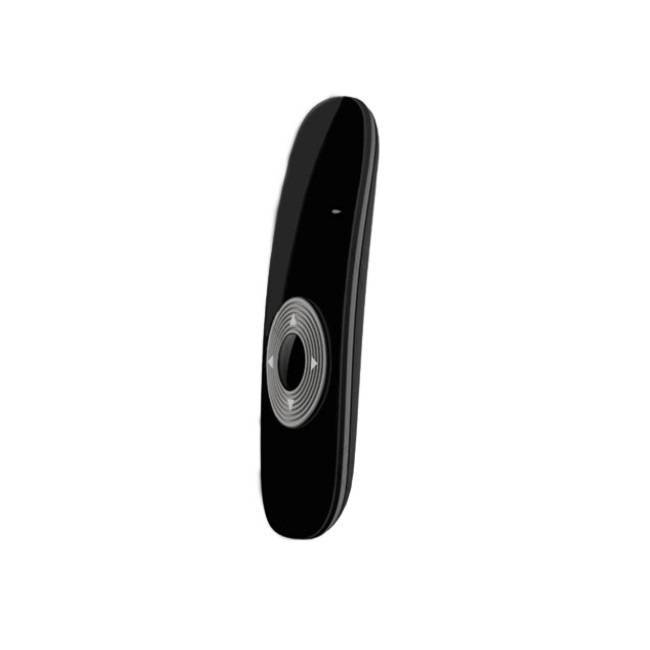

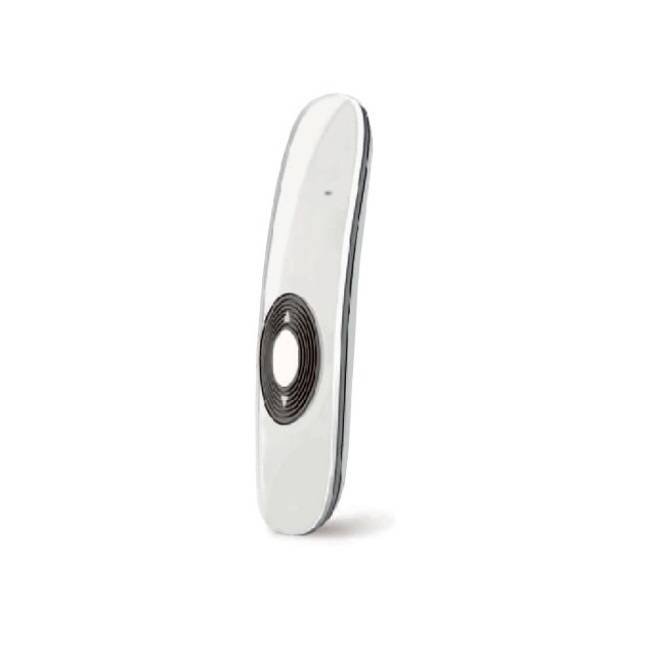

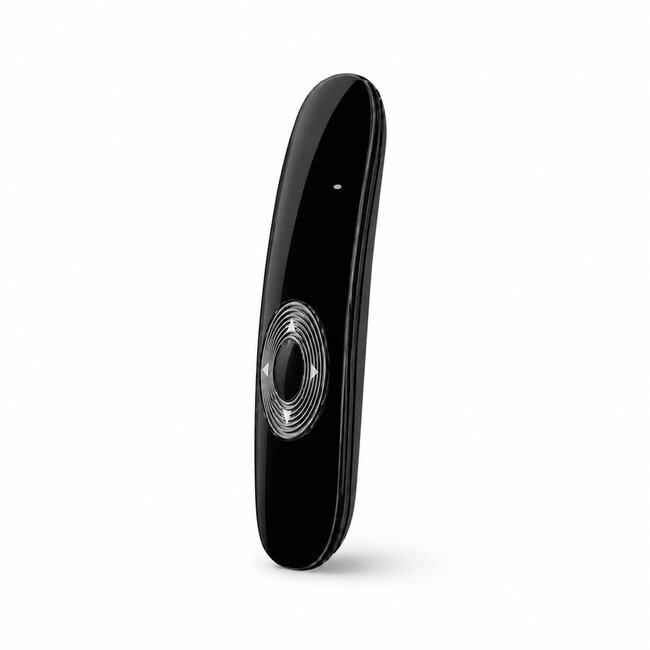

Brel DC305 1-channel 433 MHz handheld transmitter

- suitable for Brel and Faher tubular motors
- also suitable as replacement for the Esmo DC305
- frequency 433 MHz
- 1 channel

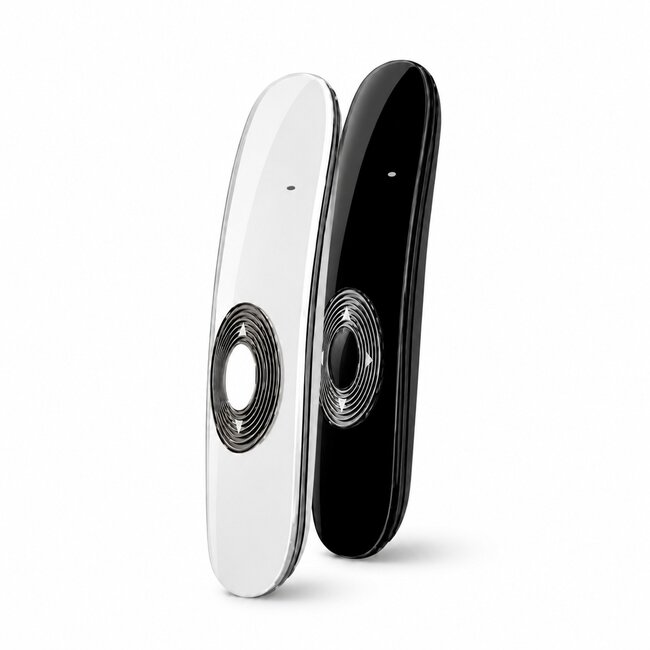

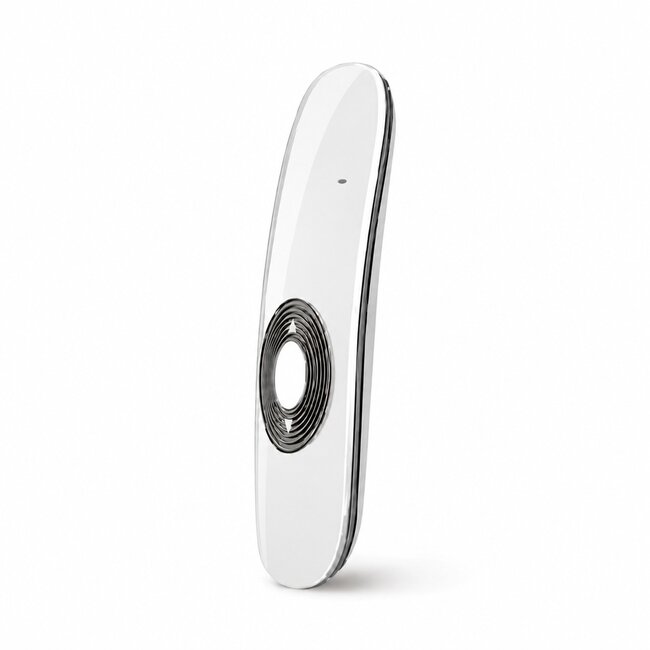

- available in white or black
- battery supplied as standard

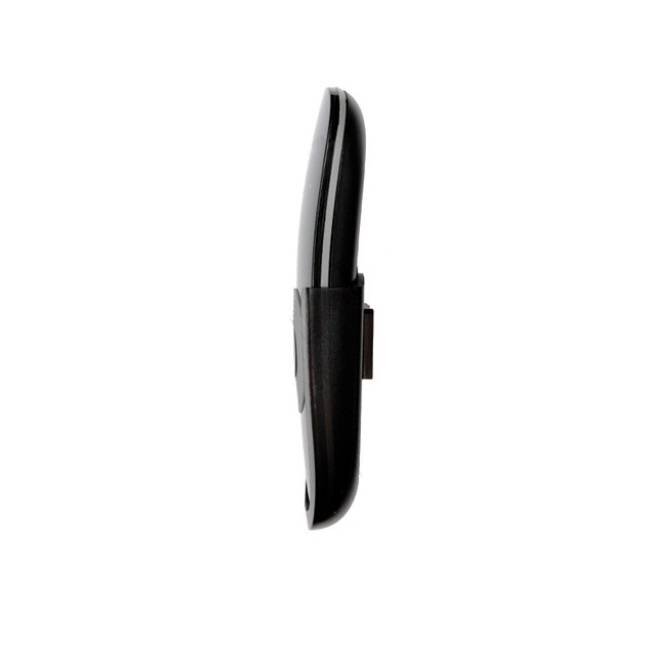

- standard delivered with wall holder

Registering the first handheld transmitter (or if you do not have a functioning transmitter)
- go to the roller shutter where the transmitter must be registered
- remove the power from the tube motor and leave it off for 30 seconds
- apply power to the tube motor
- within 3 seconds, press the P2 button of the Handheld transmitter twice
- press 1x on the "up" button of the Handheld transmitter
- press 1x on the "stop" button of the Handheld transmitter

If the Motor runs in the wrong direction do not press the "up" button but the "down" button in step 5

Registering an additional handheld transmitter
- go to the roller shutter where the additional transmitter is to be registered
- press 2x the P2 button of an existing Handheld transmitter
- Motor of the roller shutter confirms this with a beep (not always audible)
- Press once the P2 button of the new handheld transmitter
- Roller shutter motor confirms this action with 2x beeps
- Handheld transmitter is programmed

The P2 button can be located at the rear or near the battery, the DC61 or DC115A does not have a P2 button, use the "up" and "stop" buttons as "P2" buttons simultaneously
