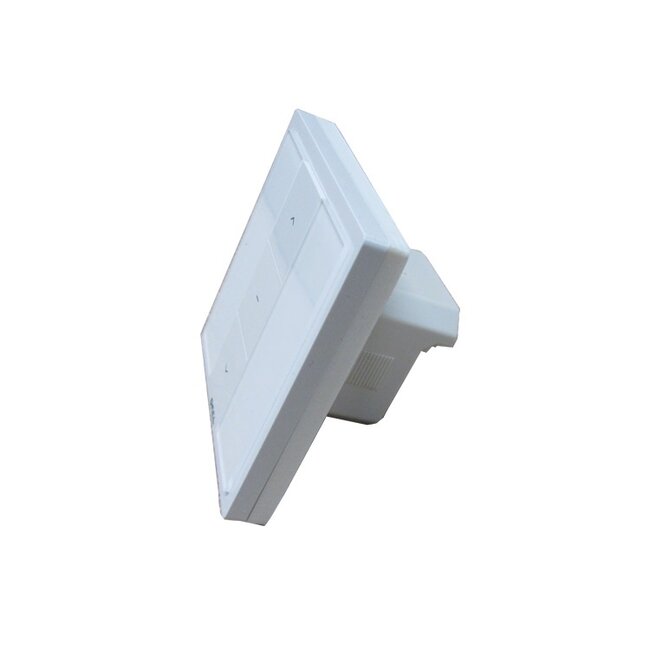

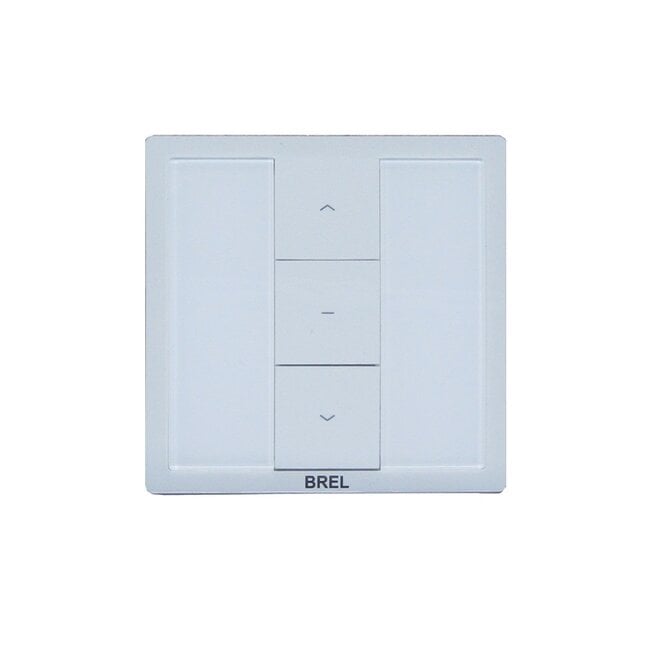

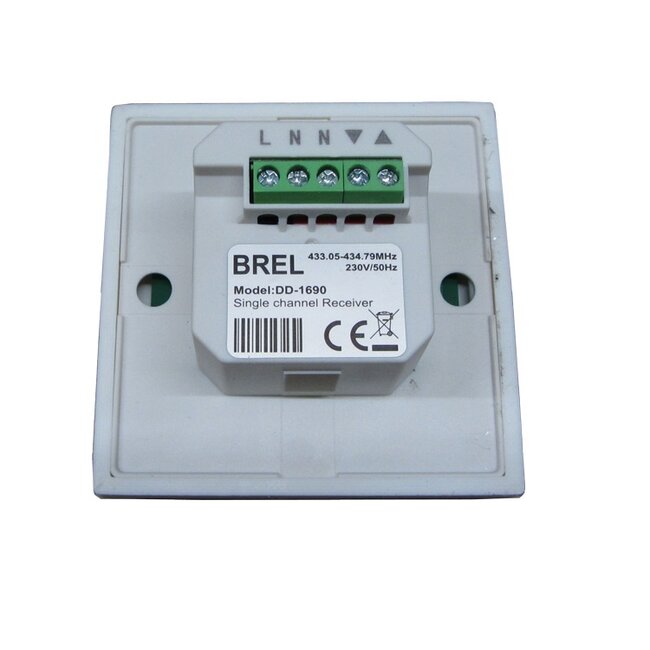

Easily control your electric roller shutter with a handheld transmitter with this flush-mounted receiver Read more.
The receiver is ideal when renovating motorised roller shutters and blinds controlled by a Switch. It can replace the standard roller shutter switch. The Roller shutter and/or awning can be operated by both transmitter and Switch. Compatible with fixed-point switches and automatic zero-point switches.
- power supply 230 V
- frequency 433 MHz
- bi-directional protocol
- capacity for 20 transmitters
- switching capacity 500 Watt
- dimensions 85x85x42 mm (wxhxd)

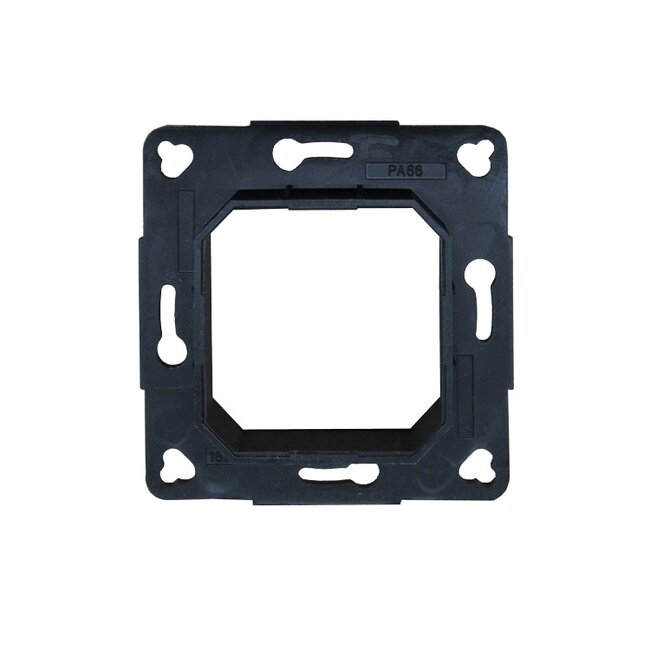

- including installation frame
- range approx. 35 metres indoors, approx. 200 metres outdoors
- works with all Brel, Faher DD transmitters
download the Brel DD1680 and DD1690 manual here
------------------
This Brel receiver can be controlled with the following Apps, from anywhere in the world (as long as you are connected...).
- Lite Smartsware Controller
All you need for this is the Lite plug. This connects
to your router and you're good to go.
It allows you to control all your Brel radio motors and also switch on timers.
- HomeWizard
For this, you need the HomeWizard box. The App then offers the opportunity to
programming scenarios, deploying actions depending on Sensor input.
So if it gets warmer than 20 degrees inside, during the day the Roller shutters
down etc.
- Homey Athom
The magic orb. Responds to any verbal command. Combines various apps.
For example, when buienradar indicates that it will rain in your area,
then the sunshade goes inside.
You can find the apps for the above controls in the App store or the Google Play store.
