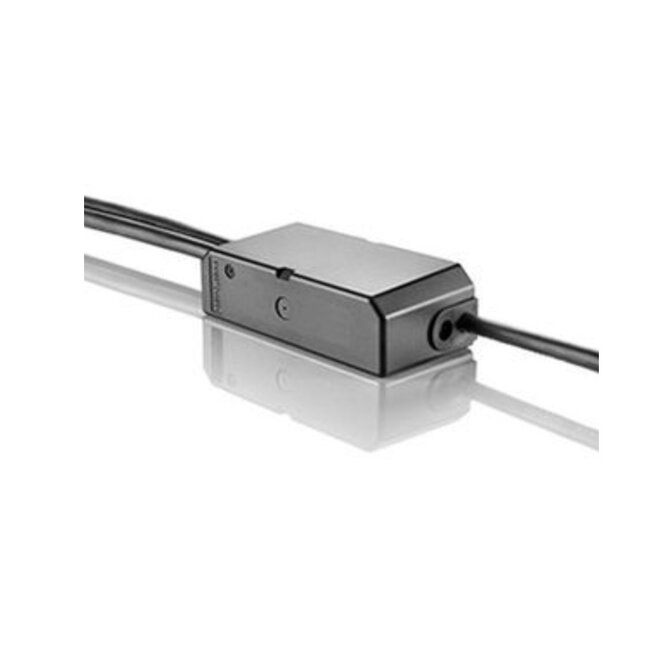

Somfy dimmable receiver io for LED lighting

- Somfy io-homecontrol protocol
- frequency 868.00 MHz
- suitable for all types of LED lighting
- easily integrated in various applications
- compatible with any type of LED via a driver with a 1-10 V control input
- lighting load must be at least 80% of the maximum load of the driver
- pre-programmed my position at 50%
- dimming function via all Somfy io transmitters except Smoove Origin io and Keytis 4 io
- when used without dimming function, the switch-off time is +/- 6 sec after control
- dimensions 43x28x92 mm (wxhxl)
- Black colour
- protection class IP55

Download here the Somfy dimmable io receiver manual for LED lighting
Download here the datasheet of the Somfy dimmable io-receiver for LED lighting
