Volte aluminium carrier for Ø 78 Axle/Shaft with cloth slot

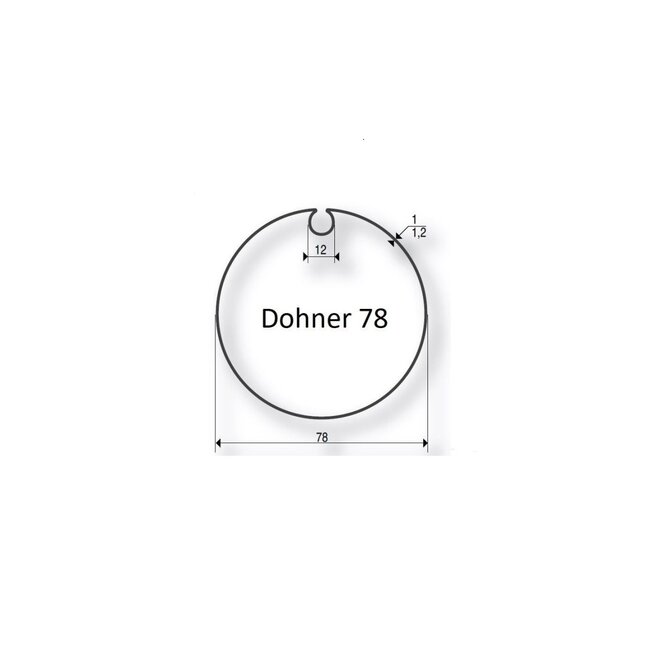

This carrier for a Ø 78 tube with cloth slot, suitable for all Volte Ø 50 mm and Ø 60 mm series tubular motors, the carrier is made of aluminium and is recommended when a motor of 85 Nm or more is used. This carrier will have to be ordered in combination with a standard adapter set for a Ø 78 mm Axle/Shaft with cloth slot. The Axle/Shaft has an outer diameter of 78 mm and a wall thickness of ± 1.2 mm, mostly used for an articulated screen.

An adapter set for a tubular motor always consists of an adapter and carrier.
The adapter is the part on the motor wire side that makes the spindle of the motor adjustment run for motors with a mechanical adjustment.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.
