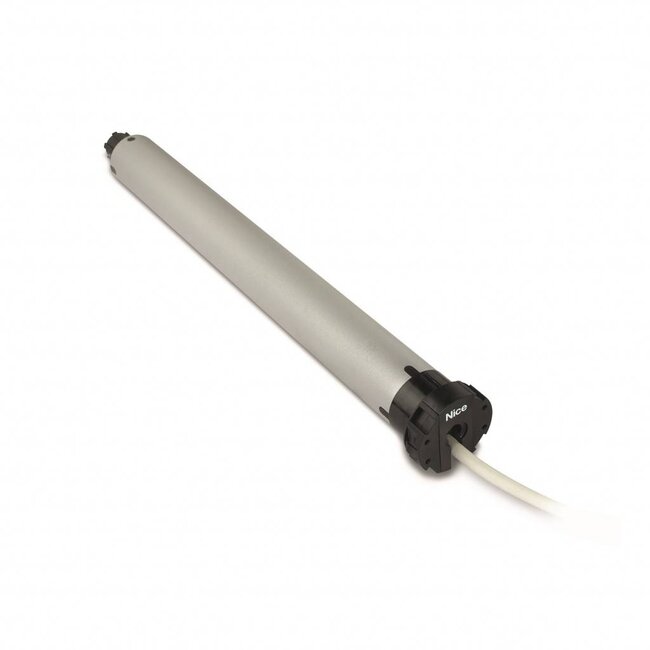

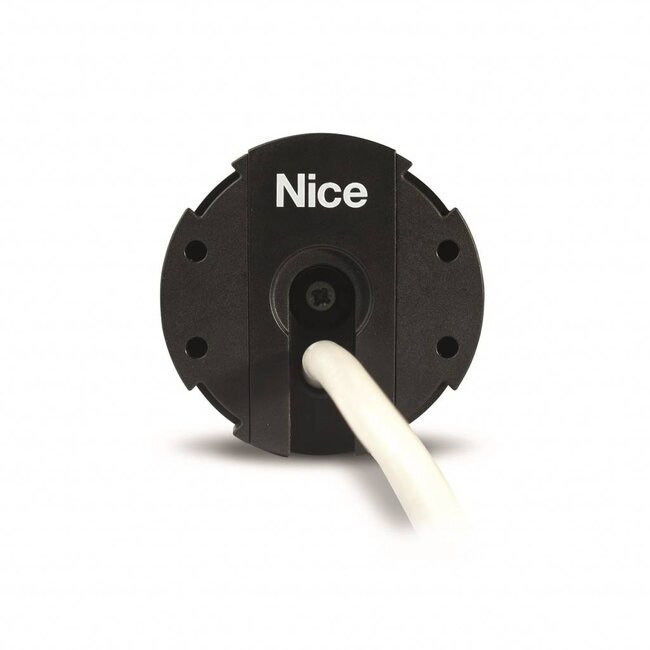

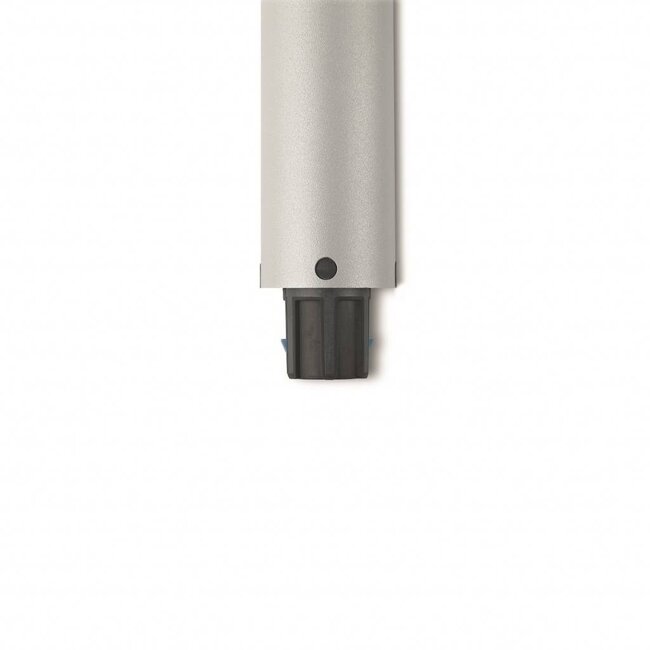

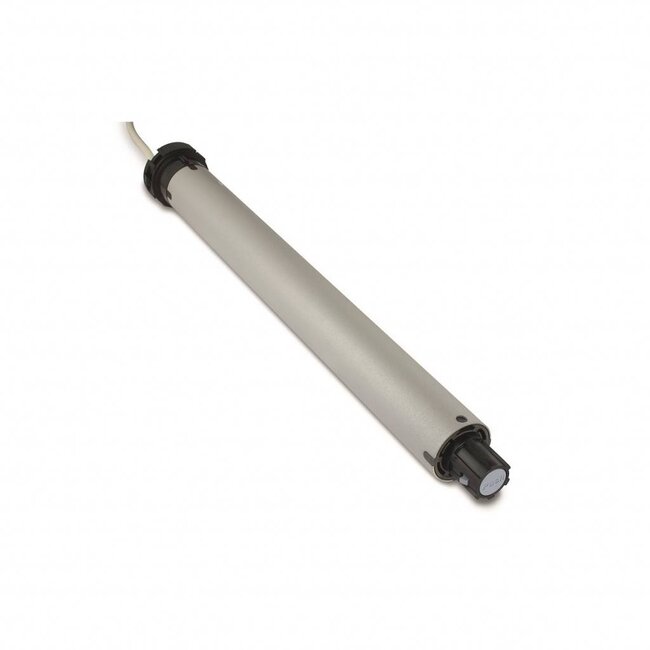

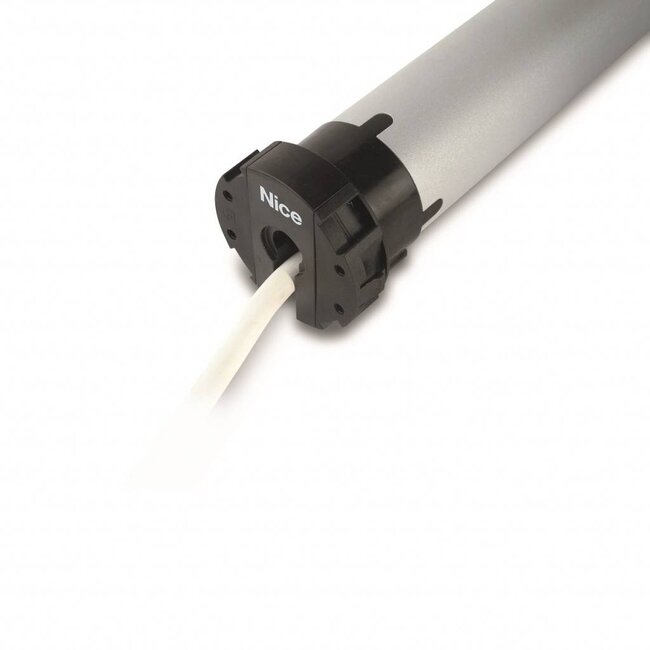

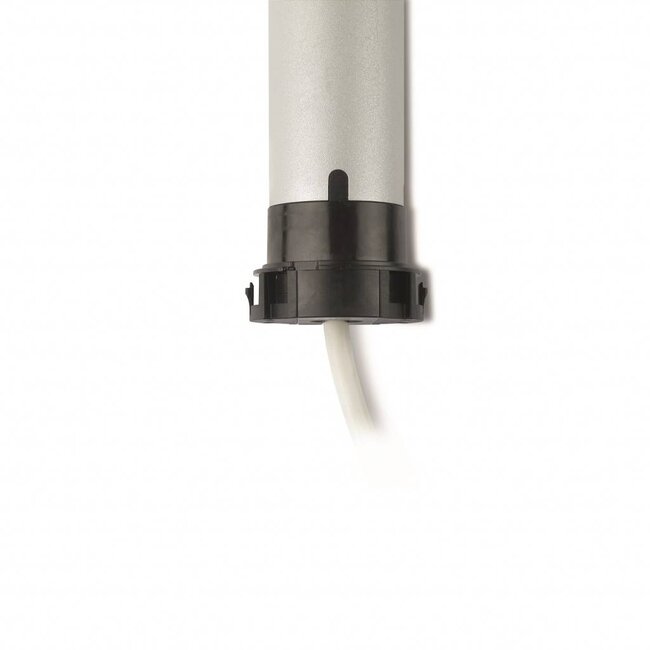

Nice Era Fit M tubular motor with electronic final adjustment and bi-directonal integrated receiver

Tubular motor particularly suitable for narrow and small roller shutters, motors from 8 Nm with a length of 426 mm, up to larger systems with the 50 Nm and 12 rpm. With the electronic limit switches and bi-directional integrated receiver, you can install the Motor quickly and easily. Easy to mount thanks to the new compact motor supports and the innovative click system to attach the adapter set. Connection to climate sensors via wireless connection via simple programming. It is possible to connect and control these tubular motors in parallel without an additional control box.
Nice's bi-directional radio protocol activates confirmation of command reception by the automation and the possibility of checking the position of the screen or shutter. The Motor, which also supports the mesh function of the Nice network, provides the 'routing' of the radio control, increasing the radio range of the system.

- successor to the FreeMax series (please note that the transmitter has a programming button)
- suitable for Roller shutters
- electronic limit switches and integrated bi-directional receiver
- compatible with previous versions of Nice uni-directional transmitters
- Nice M series tubular motor with a diameter of Ø 45 mm
- supplied without motor support and adapter set
- tube motor 230 V/50 Hz
- speed 12 rpm and 17 rpm
- available in 8 to 50 Nm
- 3-core white cable with a length of 2.5 metres
- tubular motor fits in tubes with a minimum inner diameter of 50 mm
- low energy consumption in stand-by mode
- parallel connection of motors without control box
- not suitable for continuous use

Type Nice Era Fit M BD tubular motors
- Nice Era Fit M BD 8 Nm - 17 rpm - 120 Watt - length 426 mm
- Nice Era Fit M BD 15 Nm - 17 rpm - 170 Watt - length 451 mm
- Nice Era Fit M BD 30 Nm - 17 rpm - 250 Watt - length 486 mm
- Nice Era Fit M BD 40 Nm - 12 rpm - 245 Watt - length 486 mm
- Nice Era Fit M BD 50 Nm - 12 rpm - 250 Watt - length 486 mm

Need a new tubular motor for old type starting with XM and ending with 2
- XM150002 - Free Max 8 --> Nice Era Fit M BD 8/17
- XM280002 - Free Max 15 --> Nice Era Fit M BD 15/17
- XM560002 - Free Max 30 --> Nice Era Fit M BD 30/17
- XM750002 - Free Max 40 --> Nice Era Fit M BD 40/12
- XM900002 - Free Max 50 --> Nice Era Fit M BD 50/12
