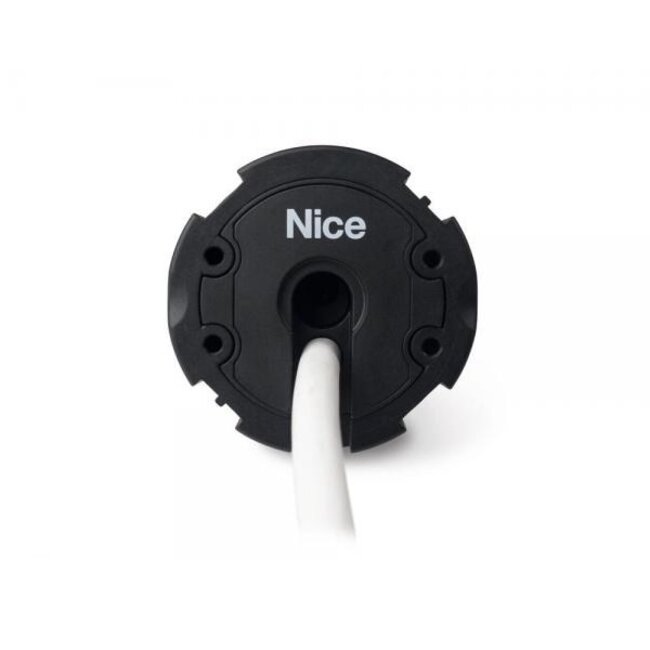

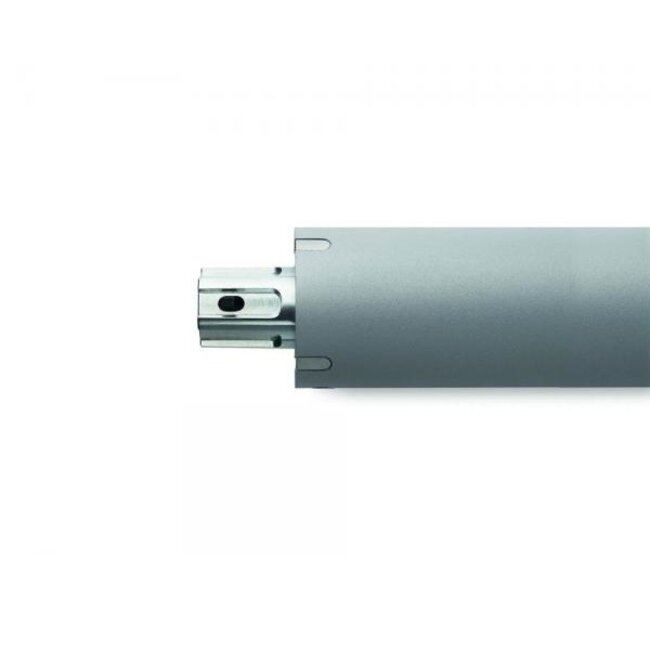

Nice Era L tubular motor with mechanical limit switch

Particularly suitable for Roller shutters from 55 Nm to 120 Nm. Easy adjustment of the open and close end position thanks to the mechanical limit switches. Easy to mount thanks to the new compact motor supports and the innovative click system to attach the adapter set. Wired and/or wireless connection to climate sensors via external control units.

- Suitable for blinds and roller shutters
- Nice L series tubular motor with a diameter of Ø 58 mm

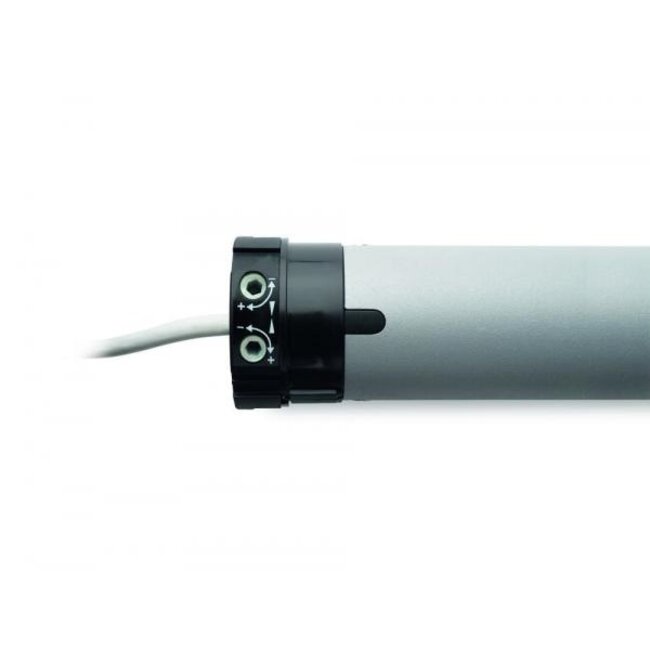

- mechanical adjustment with rotating pins
- supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- speed 12 rpm and 17 rpm
- available in 55 to 120 Nm
- 4-core white cable with a length of 2.5 metres
- tubular motor fits in tube with a minimum diameter of 60 mm
- not suitable for continuous use.

Type Nice Era L tubular motors
- Nice Era L 55 Nm - 17 rpm - length 667 mm
- Nice Era L 65 Nm - 17 rpm - length 667 mm
- Nice Era L 75 Nm - 17 rpm - length 667 mm
- Nice Era L 80 Nm - 12 rpm - length 667 mm
- Nice Era L 100 Nm - 12 rpm - length 667 mm
- Nice Era L 120 Nm - 12 rpm - length 667 mm
