Nice Era M SH (starhead) tubular motor for sun blinds and roller shutters

Tubular motor particularly suitable for home roller shutters and small awning systems. With the mechanical limit switches, you can easily set the open and close positions. Simple mounting thanks to the new star-shaped motor head, also applicable in your current Somfy motor support. The adapter set is secured with the innovative click system.

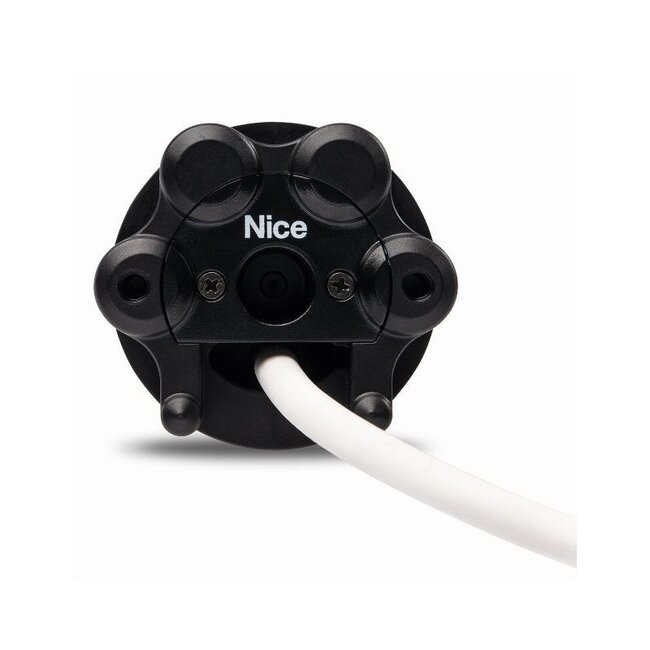

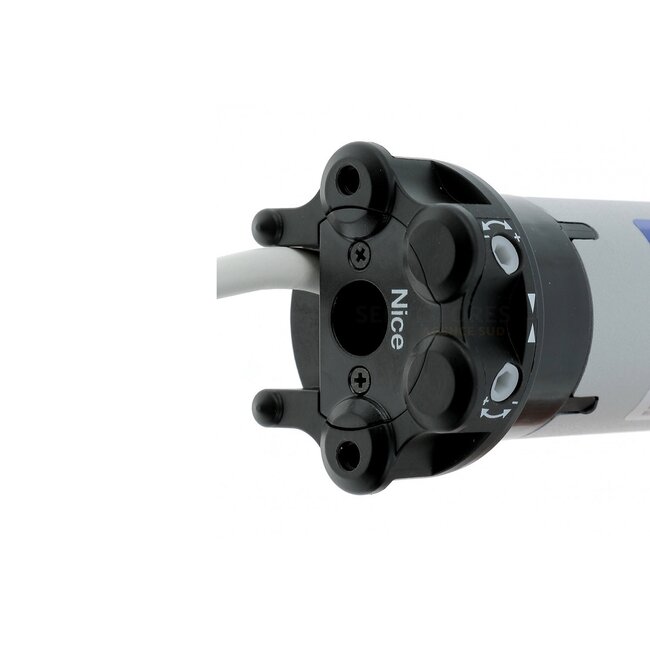

- equipped with new Starhead motor head
- suitable for blinds and roller shutters
- Nice M series tubular motor with a diameter of Ø 45 mm
- mechanical adjustment with rotating pins
- supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- speed 17 rpm
- available in 8, 15 and 30 Nm
- 4-core white cable with a length of 2 metres
- tubular motor fits in tube with a minimum inner diameter of 50 mm
- not suitable for continuous use

Type Nice Era M SH tubular motors
- Nice Era M SH 8 Nm - 17 rpm - 120 Watt - length 426 mm
- Nice Era M SH 15 Nm - 17 rpm - 170 W - length 451 mm
- Nice Era M SH 30 Nm - 17 rpm - 250 Watt - length 486 mm
