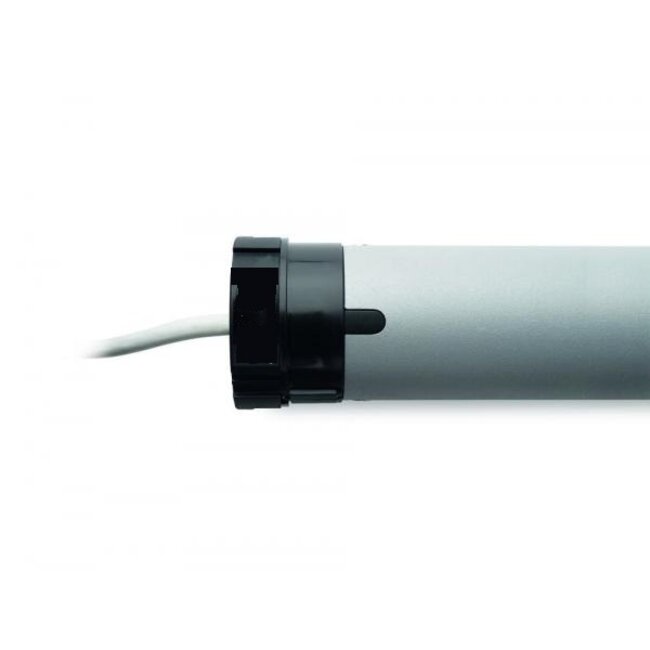

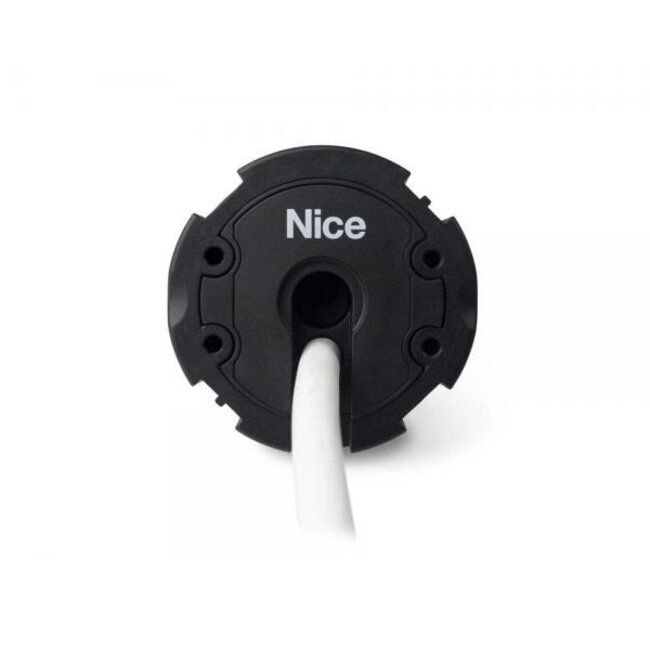

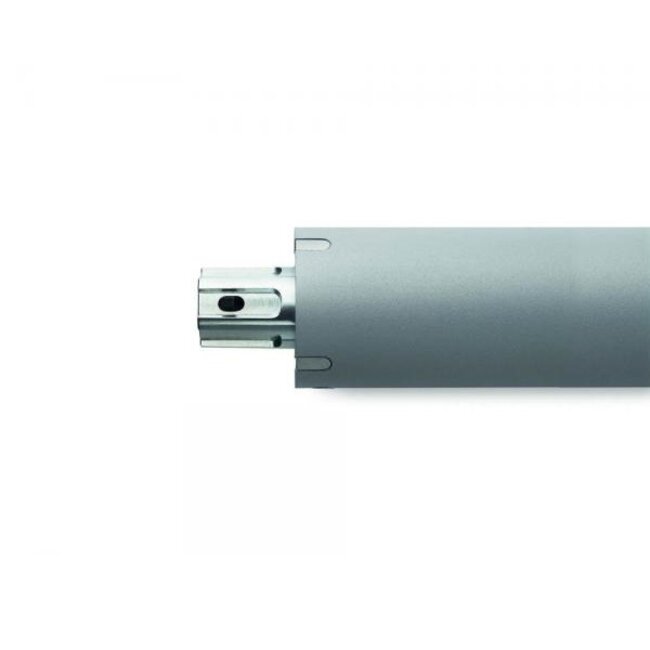

Nice Era Mat LA tubular motor with electronic final adjustment, integrated receiver and TTBus technology

Particularly suitable for Roller shutters from 55 Nm to 120 Nm. Easy limit switch adjustment using push-button adjustment and via the handheld transmitter or the external programming units O-View TT and TTPRO. Easy to mount thanks to the new compact motor support and the innovative click system for attaching the adapter set.

- suitable for roller shutters
- electronic limit switches and integrated receiver
- tubular motor is equipped with obstacle detection
- easy setting of an intermediate position
- Nice L series tubular motor with a diameter of Ø 60 mm
- Motor support and adapter set not included in delivery
- tube motor 230 V/50 Hz
- speed 12 rpm and 17 rpm
- available in 55 to 120 Nm

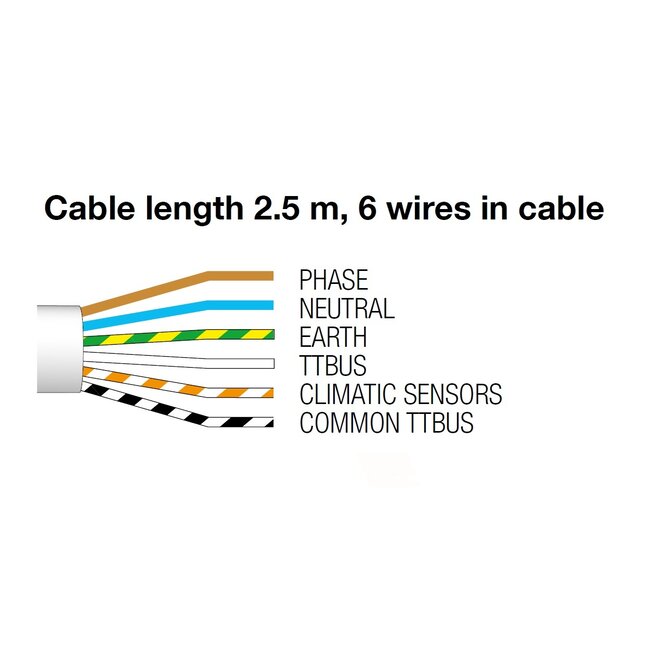

- 6-core white cable with a length of 2.5 metres
- tubular motor fits in tube with a minimum inner diameter of 60 mm
- not suitable for continuous use

Type Nice Era Mat LA Tubular motors
- Nice Era Mat LA 55 Nm - 17 rpm
- Nice Era Mat LA 65 Nm - 17 rpm
- Nice Era Mat LA 75 Nm - 17 rpm
- Nice Era Mat LA 80 Nm - 12 rpm
- Nice Era Mat LA 100 Nm - 12 rpm
- Nice Era Mat LA 120 Nm - 12 rpm
