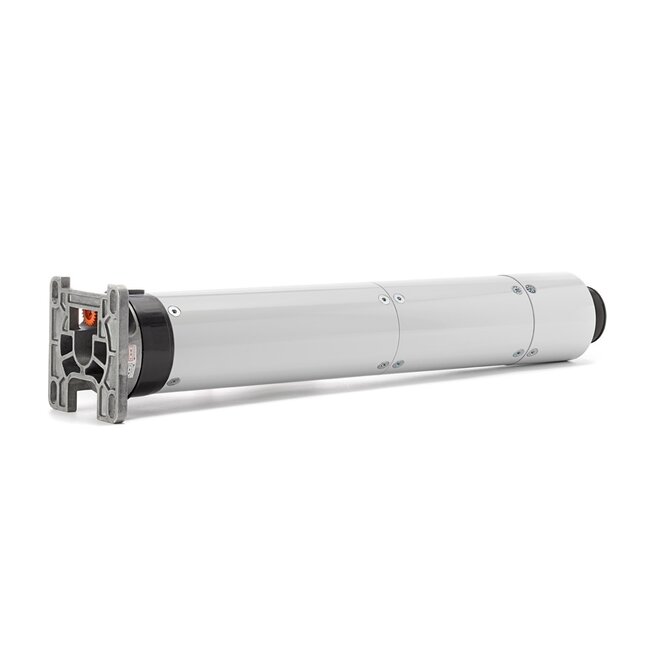

Nice Era XL - tubular motor for heavy roller shutters

The Nice Era XL tubular motor is a powerful tubular motor with mechanical limit switch, specifically designed for security roller shutters roller grilles. This tubular motor is available up to 300 Nm of torque at a speed of 12 rpm, guaranteeing absolute comfort.

What sets this motor apart is its reliability and silence. The motor's dimensions and gear characteristics ensure long life and quiet operation.

In addition, the Nice Era XL tubular motor is very flexible in use and, because its specifications are the same as the Elero 15 tubular motors, a good replacement for them. Thanks to the separate adapter set, the Motor can be used for tubes with different diameters, ranging from 98x2.0 mm to 168x4.0 mm or SW 114 (octagonal).

Installing this tube motor is easy thanks to the angled mounting of the mounting plates in relation to the console plate. With the Nice Era XL tubular motor, you are assured of a high-quality product that meets your needs with ease and reliability.

- Supplied without motor support and adapter set
- force 120 to 300 Nm
- speed 12 rpm
- power supply 230 V/50 Hz
- accessories Era XL

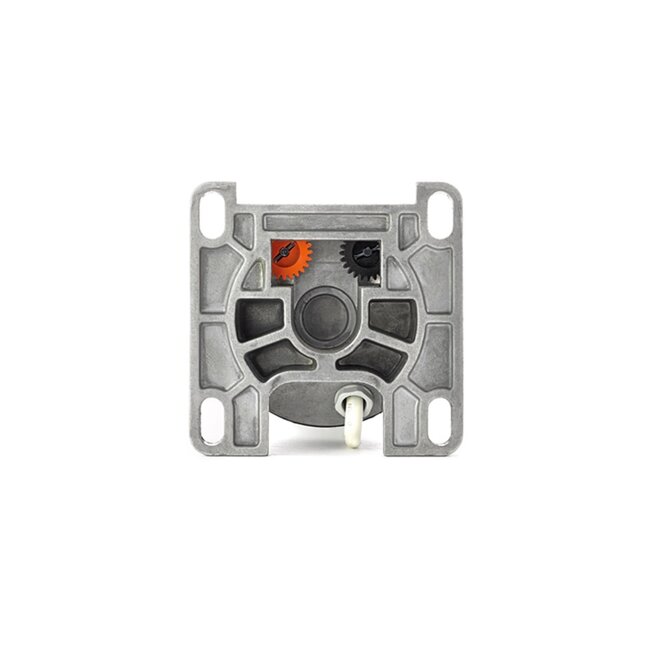

- mechanical adjustment on motor head
- final adjustment capacity is 36 revolutions
- integrated electromagnetic brake
- integrated thermal protection
- maximum use 10 cycles per 24 hours
- fits into a tube with a minimum inside diameter of Ø 101.6 x 3.6 mm
- supplied as standard with a 4-wire white cable, length 3 m
- applicable with relay boxes, standard switches and standard controllers

Nice Era XL tubular motor is available in the following versions
- Era XL 120 - 120 Nm - 12 rpm - 700 Watt - 3.4 Ampere - length 639 mm
- Era XL 150 - 150 Nm - 12 rpm - 740 Watt - 3.5 Ampere - length 639 mm
- Era XL 180 - 180 Nm - 12 rpm - 780 W - 3.7 Ampere - length 639 mm
- Era XL 230 - 230 Nm - 12 rpm - 810 W - 3.9 Ampere - length 639 mm
- Era XL 300 - 300 Nm - 12 rpm - 1250 W - 5.4 Ampere - length 679 mm
