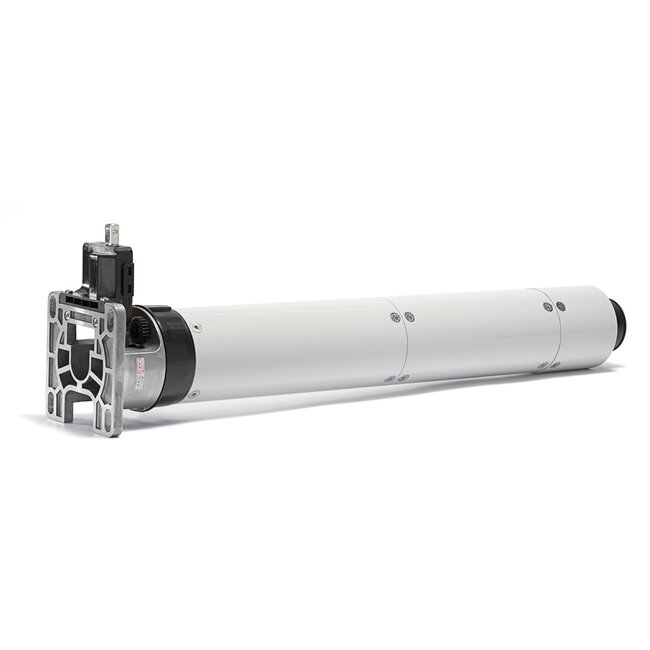

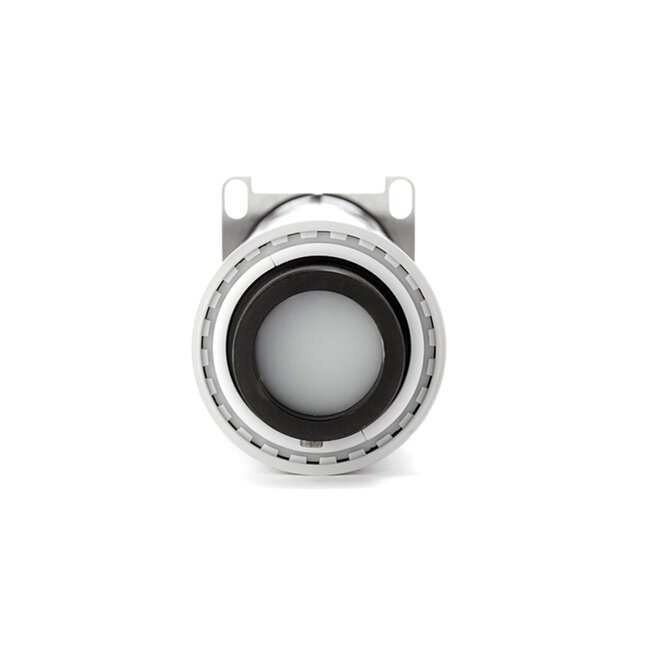

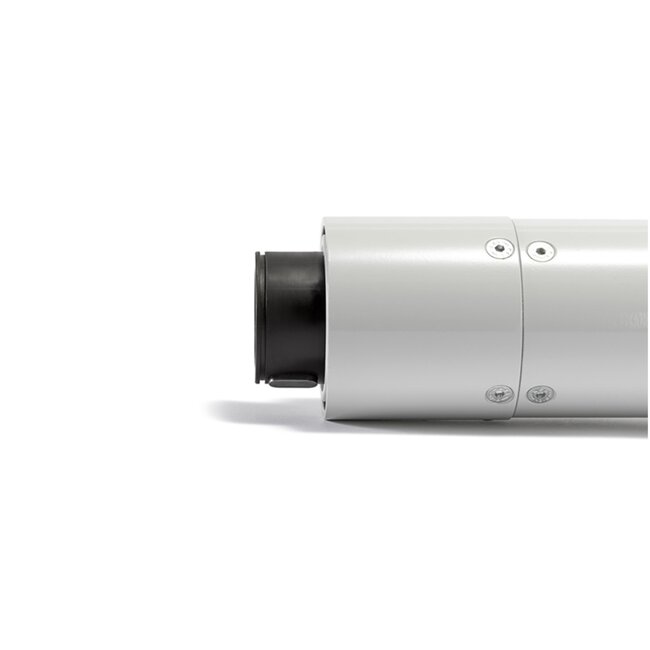

Nice Era XLH - tubular motor for heavy Roller shutters

The Nice Era XLH tubular motor is a powerful and reliable choice for automating Roller shutters or blinds. With a size XL of 90 mm, this Motor offers up to 300 Nm of torque and a speed of 12 rpm, ensuring absolute comfort.

The tubular motor is equipped with a mechanical limit switch and an emergency manual control, making it reliable even in emergency situations or power failures. The manual control switches on automatically when the hand crank is operated, ensuring that the motor continues to function at all times.

Safety is paramount with the Nice Era XLH tubular motor, with the possibility of combining safety accessories such as a roll-off guard and underrun protection. This allows the Motor to operate safely and efficiently in various situations.

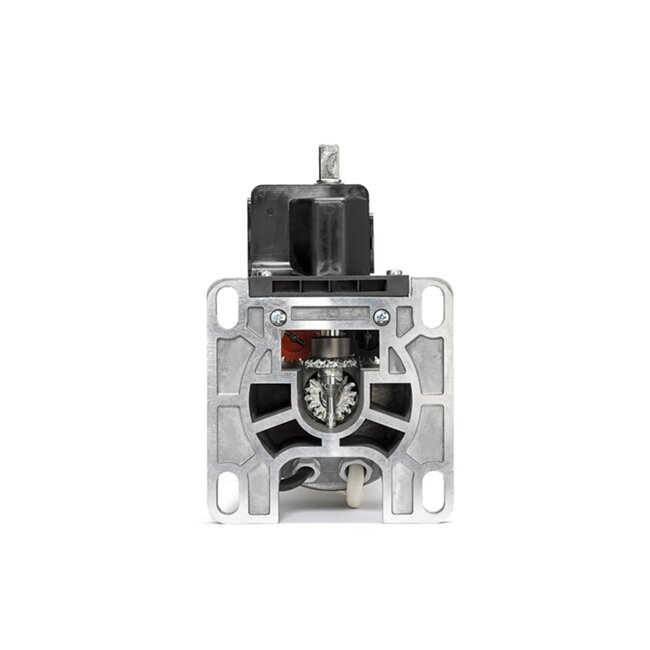

Installation of this tubular motor is easy thanks to the angled mounting of the mounting plates, ensuring stability and reliability. In short, the Nice Era XLH tubular motor offers power, speed, reliability and safety in one convenient and user-friendly solution.

- supplied without motor support and adapter set
- equipped with emergency hand control, steel eye to be ordered separately
- force 120 to 300 Nm
- speed 12 rpm
- power supply 230 V/50 Hz
- accessories Era XL(H)
- mechanical adjustment on motor head
- final adjustment capacity is 36 revs
- integrated electromagnetic brake
- integrated thermal protection
- maximum use 10 cycles per 24 hours
- fits into a tube with a minimum inside diameter of Ø 101.6 x 3.6 mm
- supplied as standard with a 4-wire white cable, length 3 m
- applicable with relay boxes, standard switches and standard controllers

Nice Era XLH tubular motor is available in the following versions
- Era XLH 120 - 120 Nm - 12 rpm - 700 Watt - 3.4 Ampere - length 639mm
- Era XLH 150 - 150 Nm - 12 rpm - 740 Watt - 3.5 Ampere - length 639mm
- Era XLH 180 - 180 Nm - 12 rpm - 780 W - 3.7 Ampere - length 639 mm
- Era XLH 230 - 230 Nm - 12 rpm - 810 watts - 3.9 amps - length 639 mm
- Era XLH 300 - 300 Nm - 12 rpm - 1250 W - 5.4 Ampere - length 679 mm
