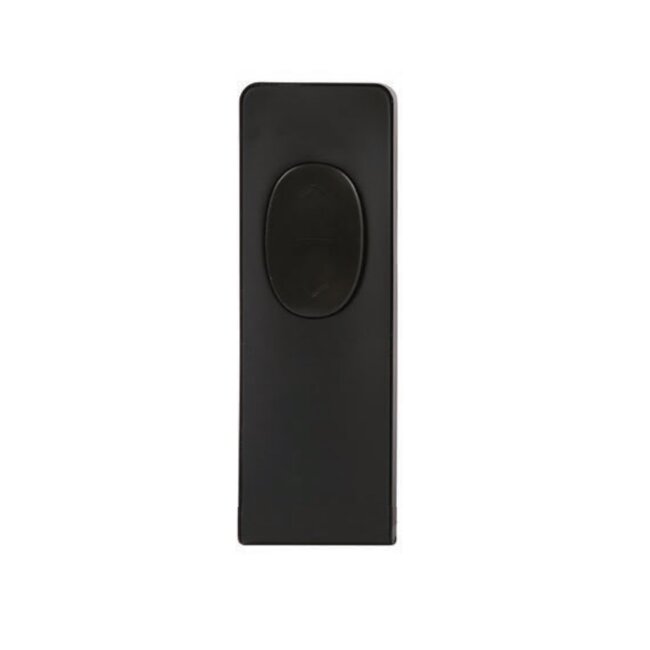

Asa Fellini 1-channel 433 MHz handheld transmitter

- 1-channel transmitter
- frequency 433.32 MHz
- colour black
- suitable for Asa ETR, ETR-A and Marconi tubular motors
- replaces the Asa go-1 and Asa Elegance 1-channel transmitter

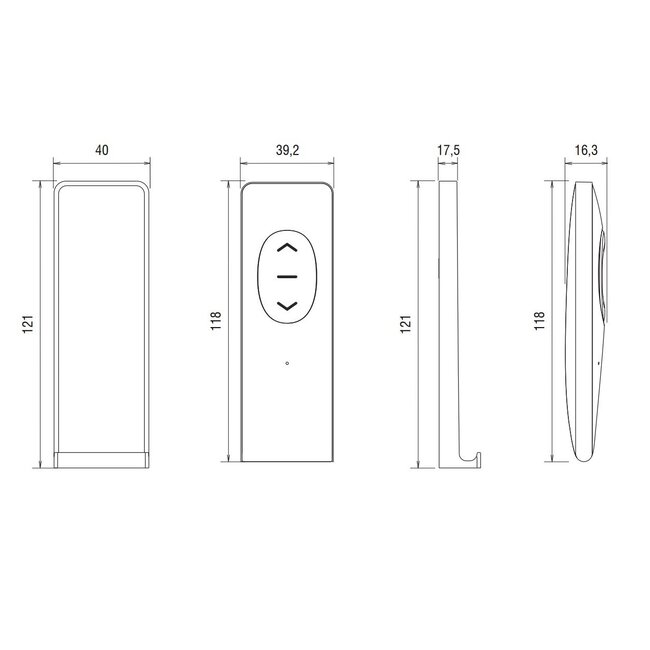

- dimensions 118x39x16 (hxwxd)
- battery CR2430

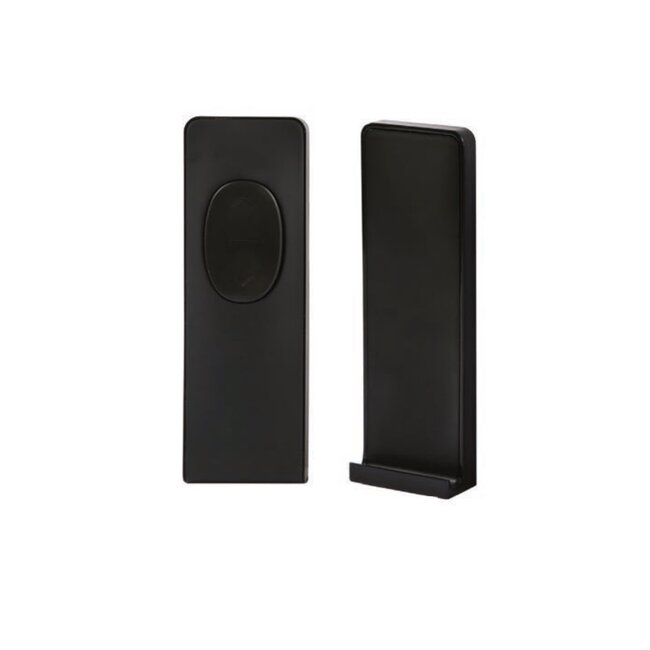

- delivered with wall bracket

Adding an additional ASA handheld transmitter
1. take an already programmed ASA Handheld transmitter
2. press the programming button on the back until the Motor responds with a short movement.
Take the new ASA Handheld transmitter
4. briefly press the programming button on the back until the Motor responds with a short movement.
5. the new ASA Handheld transmitter is set.

Replacing a lost ASA handheld transmitter (old transmitter is defective)
Remove power from the roller shutter (only the motor where Transmitter is to be registered)
Apply voltage to the roller shutter
3. Press the UP + STOP + DOWN button of the new transmitter simultaneously.
4. the tube motor responds with a short movement.
5. press the programming button on the back of the transmitter until the tube motor responds again.
