Dickert FHS10-02 - 4-channel 40.685 MHz handheld transmitter

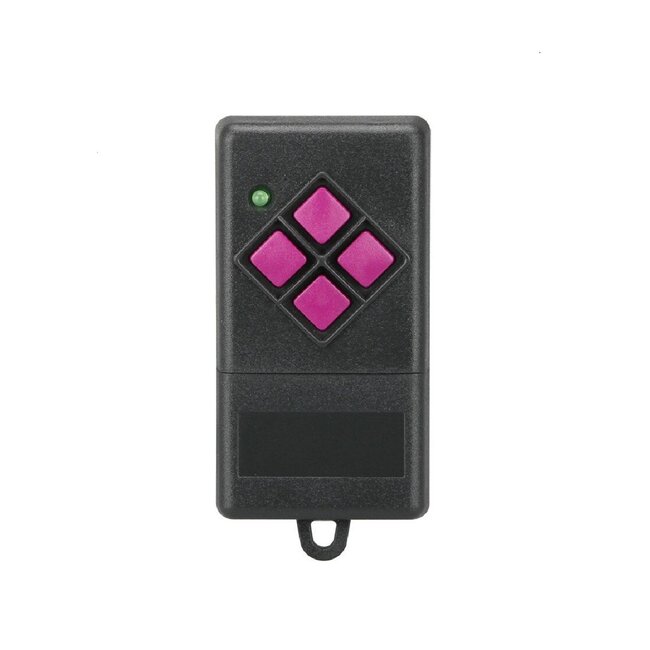

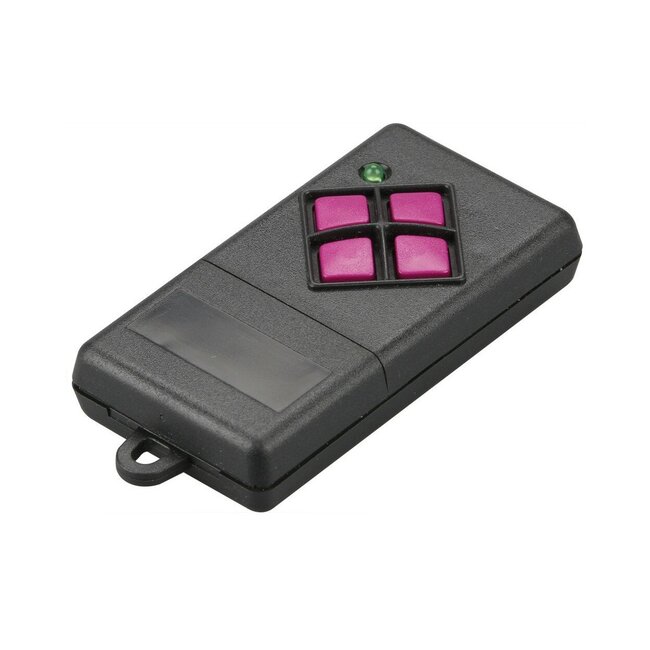

Dickert FHS10-02 - mini handheld transmitter

The Dickert FHS10-02 mini-handheld transmitter has four transmitter buttons and works using FM technology with an 18-bit linear code. The code is permanently set in the software from the factory. The Transmitter must be electronically taught in once to the Dickert FM wireless receivers at 40.685 MHz receiver (for each button to have a function). It is not possible to change the code on the Transmitter.

- frequency 40.685 MHz
- 4 channels
- LED indicator for battery and transmission status

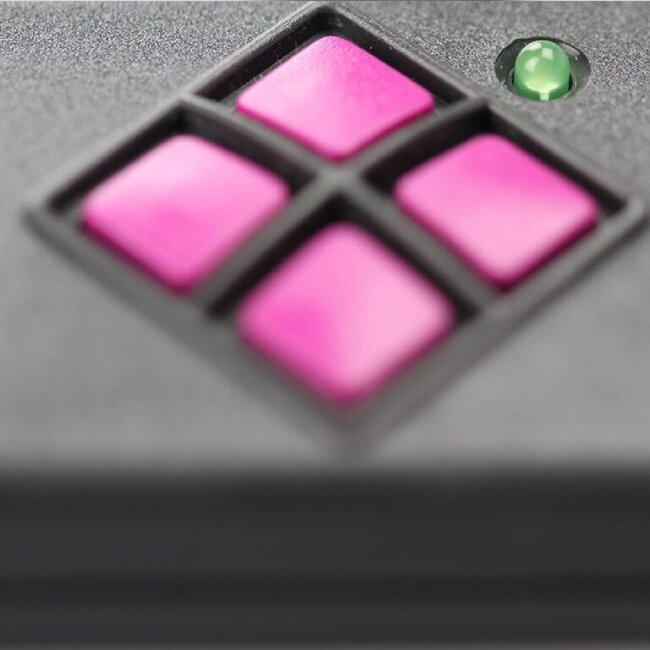

- Control LED is green

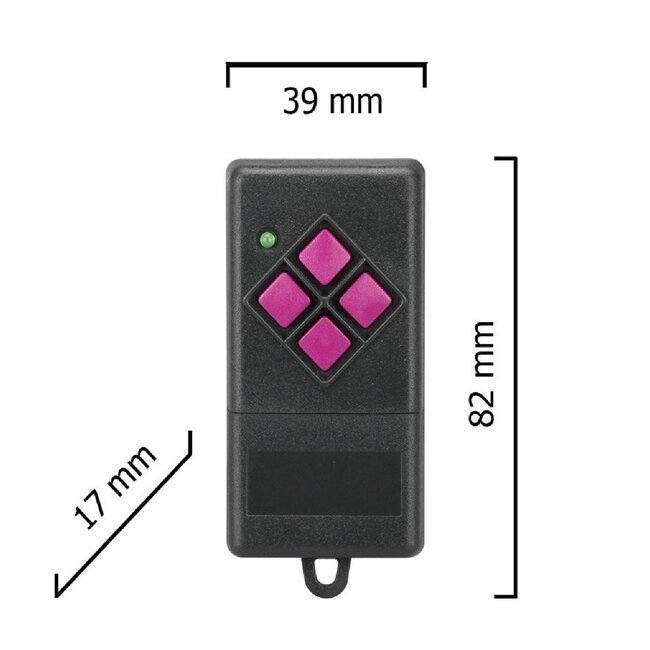

- dimensions 82 x 39 x 17 mm
- operating temperature -20°C to +60°C
- no dip switches for code setting
- linear fixed coding 4.7 million coding possibilities

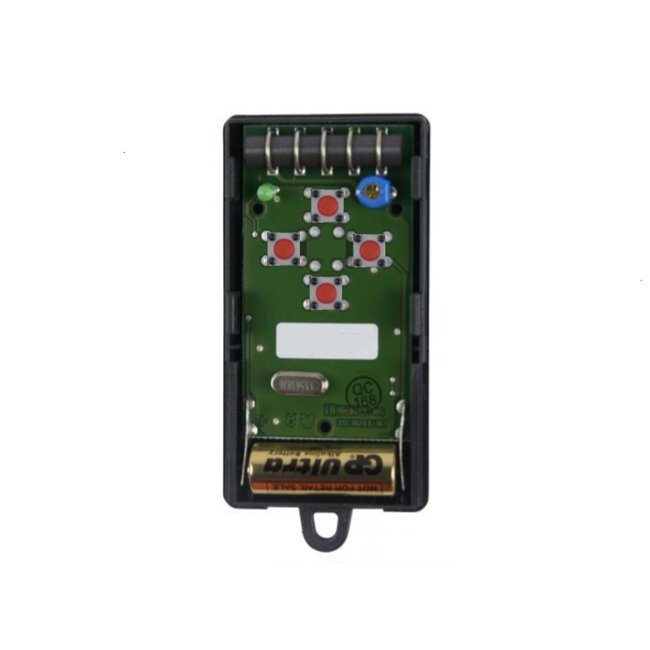

- battery 12 Volt MN21
- weight 40 g

The colour of the LED for this model is linked to the frequency, models with different frequencies are not compatible. The LED of this Dickert FHS10-01 remote control is green, moreover, this transmitter has no dipswitches for setting the code.
- orange LED --> model Dickert MAHS433-01, dipswitch coding
- red LED --> model Dickert MAHS40-01, dipswitch coding
- yellow-green LED --> model Dickert S10-433-A1L00, KeeLoq coding
