High-Line garage door operator set

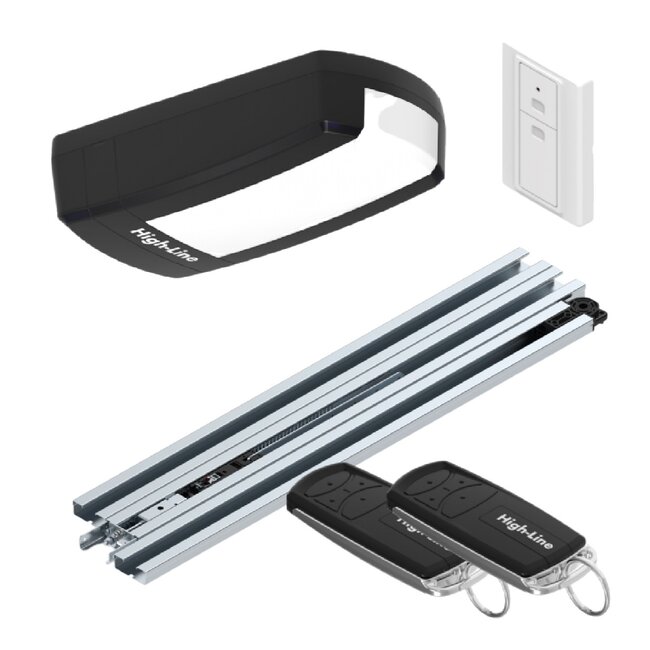

This High-Line sturdy and efficient garage door opener set includes a garage door drive system, running rails, two remote controls and a wall control. It is designed for sectional doors with an area between 8 and 18 square metres. With a traction force ranging from 800 to 1300 Nm, this opener is a reliable choice for operating both smaller and larger doors. The operator operates particularly quietly with a noise level of up to 54 dB, so there is hardly any noise pollution during operation. A convenient option is the MyQ technology, which allows users to operate the door remotely from wherever they are, providing added convenience and security. This kit allows you to convert your manual tilt or sectional door to an electric control.

- Choice of the following motors:
- 600 Nm, max 100 kg, max 8 m2
- 800 Nm, max 130 kg, max 10 m2
- 1000 Nm, max 150 kg, max 15 m2
- 1300 Nm, max 170 kg, max 18 m2
- choice of 3 rail lengths:
- day height up to 2125 mm, built-in depth 3407 mm
- Daylight height up to 2634 mm, built-in depth 3916 mm
- Daylight height up to 2918 mm, built-in depth 4200 mm
- Day height up to 3259 mm, built-in depth 4541 mm
- Day height up to 3618 mm, installation depth 4900 mm
- 2 4-channel handheld transmitters
- 1 wireless wall transmitter
- power supply 220-240 V 50-60 Hz
- speed 200 mm/s
- 868 MHz frequency receiver
- MyQ ready
- soft start and stop
- automatic close programming
- black colour
- LED illumination, 3 minutes
