Cherubini Garda Ø 45 tubular motor

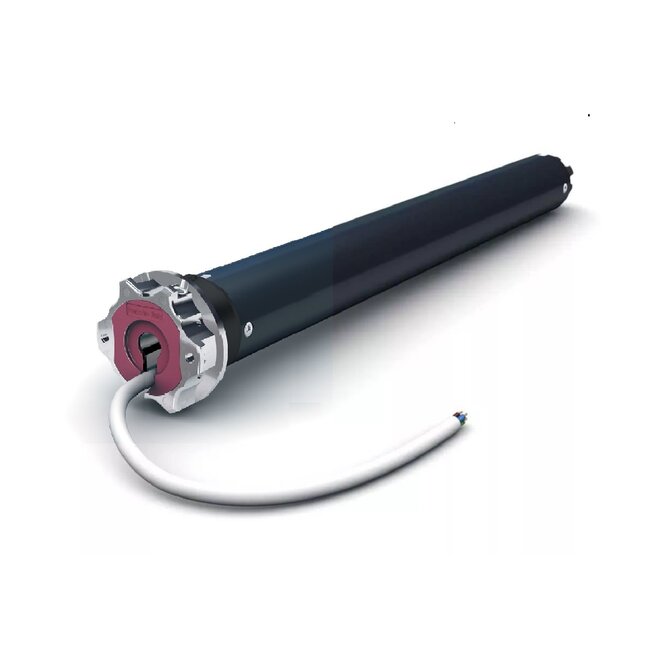

The Cherubini Garda Ø 45 tubular motor with metal StarHead motor head has a mechanical end adjustment and is suitable for Axle/Shafts with a diameter of 50 mm or larger. The tube motor is available in 10 to 50 Nm, the speed 12 or 17 rpm depends on the power of the tube motor, see overview below. It is important to note that these tubular motors cannot be connected in parallel without the use of relays. A striking feature of these tubular motors is the simple and reliable final adjustment, which can be adjusted using adjustment screws on the motor head. These tube motors are particularly suitable for use in Roller shutters, blinds and Screens, where they offer an ideal solution for automating these applications.
- Supplied without motor support and adapter set
- the metal motor head also allows fixing the motor without support

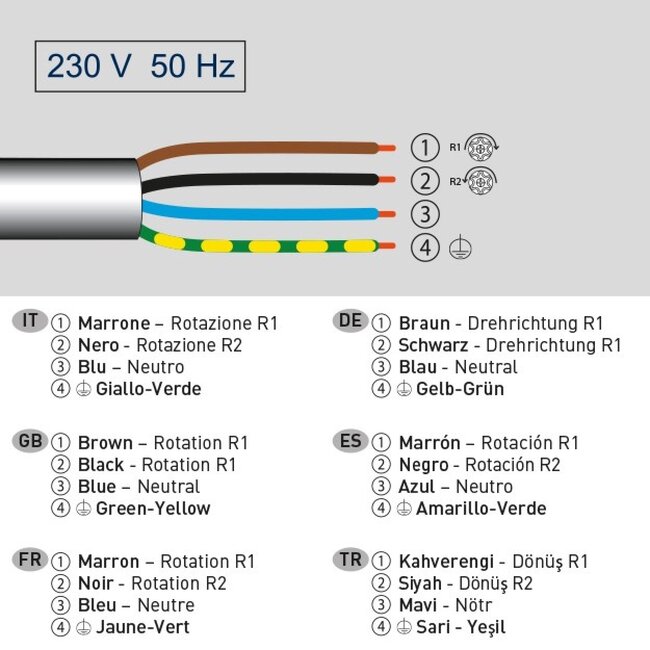

- tubular motor 230 V/50 Hz

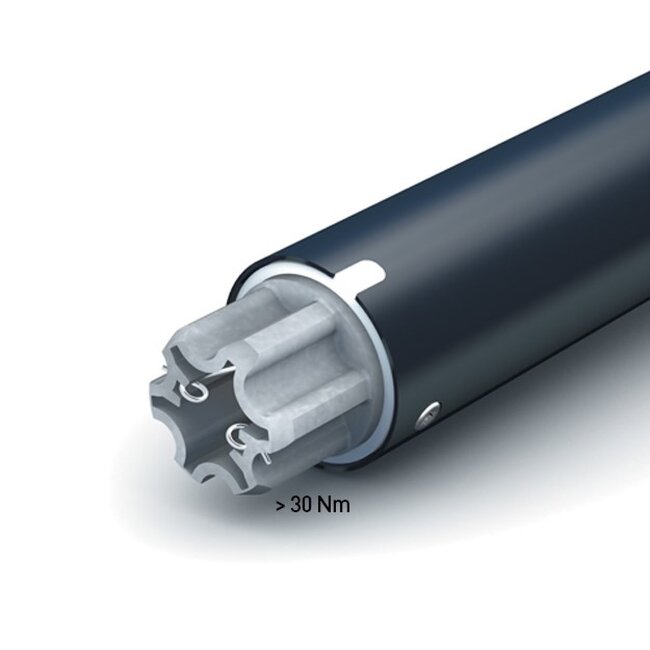

- in powers from 10 to 40 Nm with a speed of 17 rpm
- the 50 Nm motor is called a speed of 12 rpm

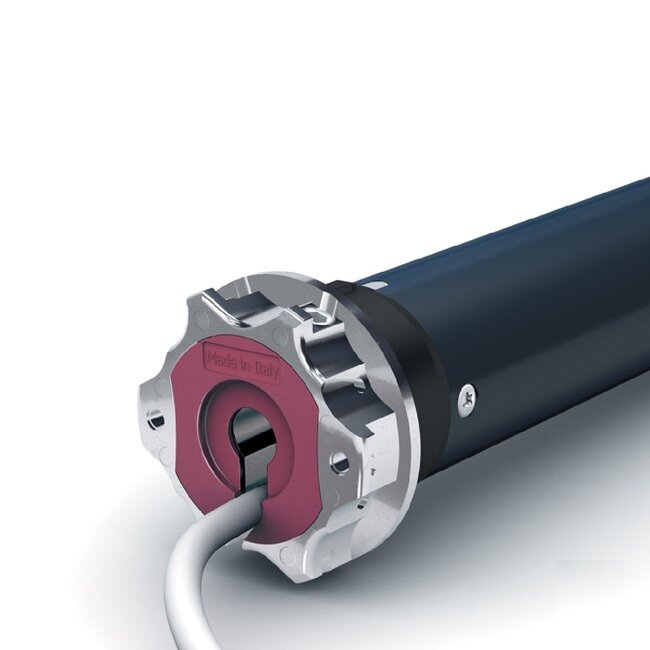

- adjustable motor head
- for standard Cherubini, Faac and Altron motor support
- when removing inserts suitable for Somfy support
- suitable for roller shutters, awnings and screens
- simple and precise adjustment of the end positions
- motors cannot be connected in parallel
- suitable for tube with minimum inner diameter of 50 mm
- capacity of the end position adjustment 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use
Type Cherubini Garda Ø 45 tubular motors

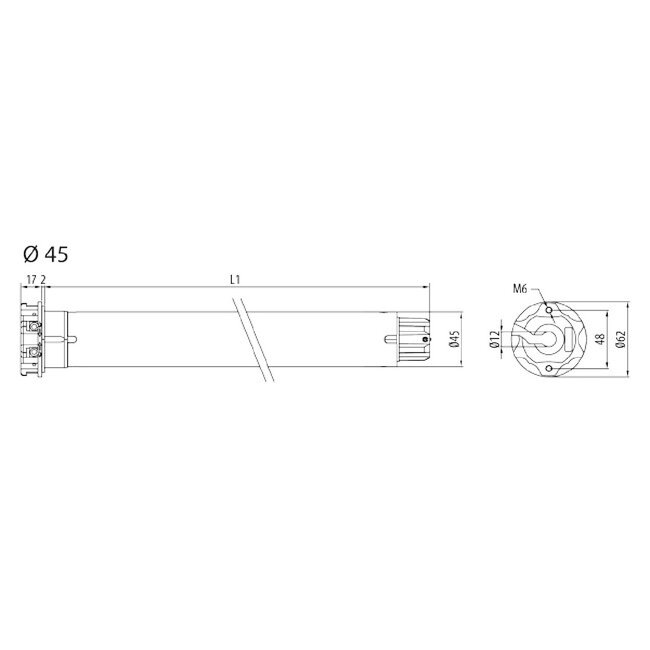

- Roll Ø 45 10/17 - 10 Nm - 17 rpm - length 546 mm
- Roll Ø 45 15/17 - 15 Nm - 17 rpm - length 546 mm
- Roll Ø 45 25/17 - 25 Nm - 17 rpm - length 546 mm
- Roll Ø 45 32/17 - 30 Nm - 17 rpm - length 546 mm
- Roll Ø 45 40/17 - 40 Nm - 17 rpm - length 546 mm
- Roll Ø 45 50/12 - 50 Nm - 12 rpm - length 546 mm
Important notes
This tubular motor is interchangeable one-to-one with the Faac TM2 45 tubular motor, when using this tubular motor to replace a defective Altron tubular motor, you should also order the appropriate adapter set with it.
