Cherubini Garda Ø 58 tubular motor

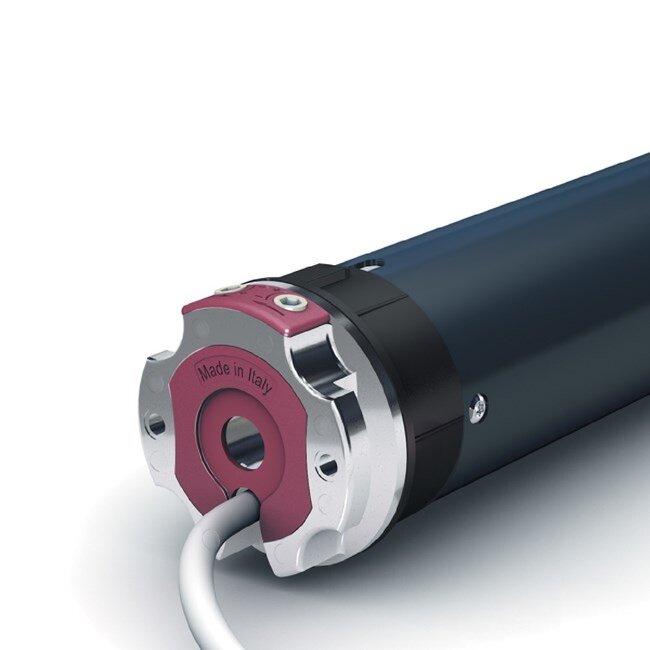

The Cherubini Garda Ø 58 tubular motor with metal StarHead motor head has a mechanical end adjustment and is suitable for Axle/Shafts with a diameter from Ø 60 mm or 8 side 70. The tubular motor is available in 85, 100 or 120 Nm, the speed 11 or 17 rpm depends on the power of the tubular motor, see overview below. It is important to note that these tubular motors cannot be connected in parallel without the use of relays. A striking feature of these tubular motors is the simple and reliable final adjustment, which can be adjusted using adjustment screws on the motor head. These tube motors are particularly suitable for use in Roller shutters, blinds and Screens, where they offer an ideal solution for automating these applications.

- Supplied without motor support and adapter set
- the metal motor head also allows fixing the motor without support

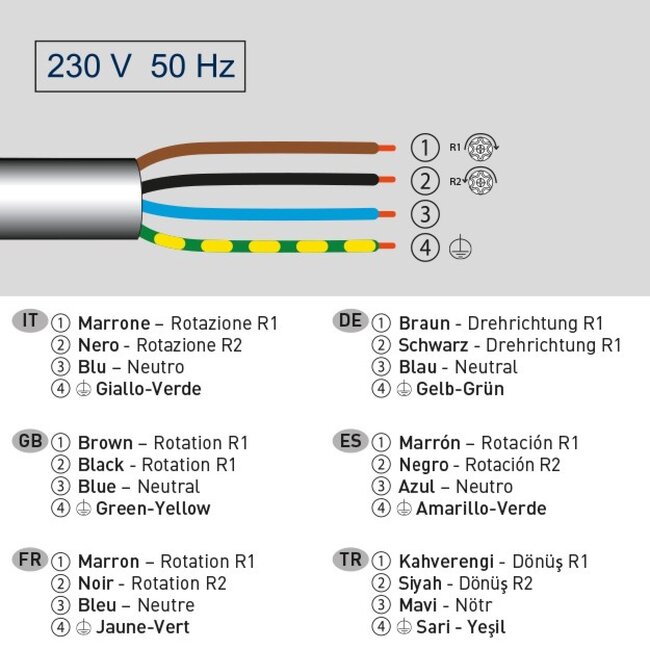

- tubular motor 230 V/50 Hz
- available in 85, 100 and 120 Nm
- speed depending on the force

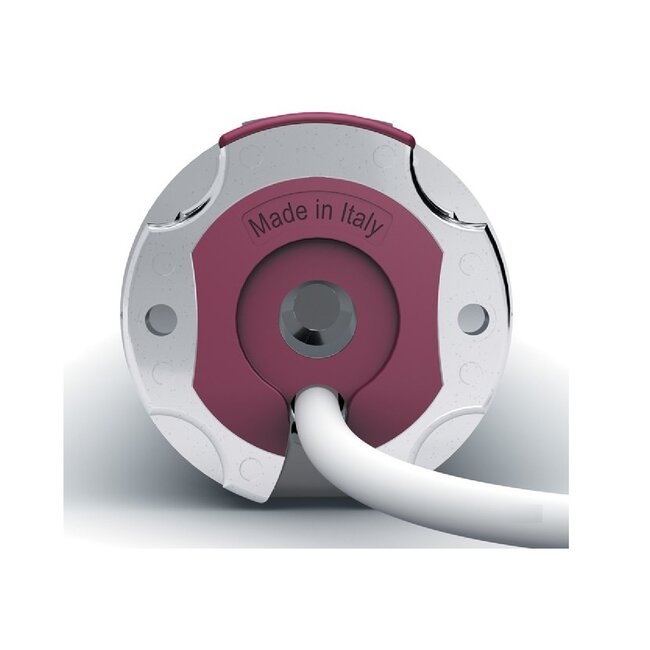

- adaptable motor head
- for standard Cherubini, Faac and Altron motor support
- when removing inserts suitable for Somfy support
- suitable for roller shutters, awnings and screens
- simple and precise adjustment of the end positions
- motors cannot be connected in parallel
- suitable for tube with minimum inner diameter of Ø 60 or 8-sided 70 mm
- end position adjustment capacity of 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Cherubini Garda Ø 58 tubular motors
- Garda Ø 58 85/17 - 85 Nm - 17 rpm - 375 Watt - length 646 mm
- Garda Ø 58 100/11 - 100 Nm - 11 rpm - 360 Watt - length 646 mm
- Garda Ø 58 120/11 - 120 Nm - 11 rpm - 415 Watt - length 646 mm
