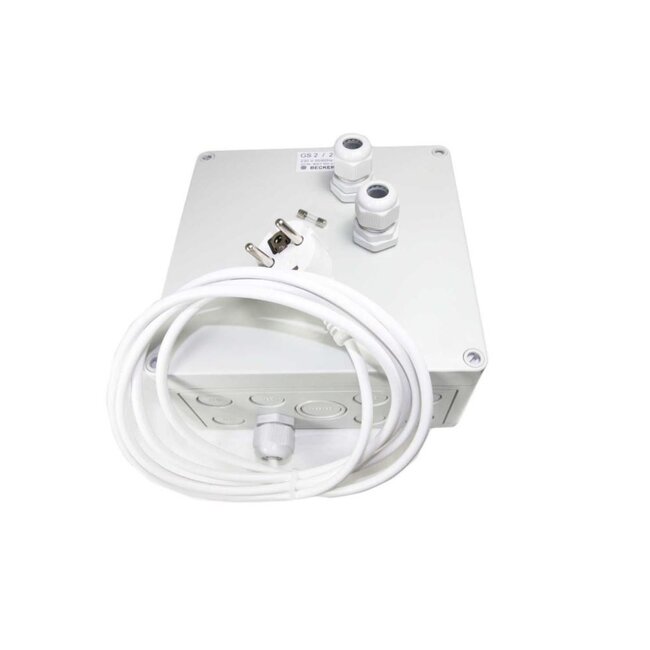

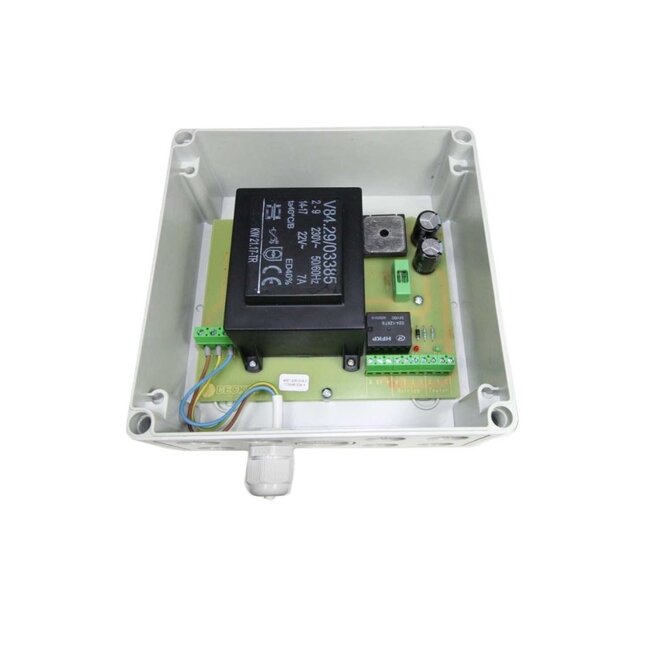

Becker GS2 24 Volt DC control box

The Becker GS2 control box is a controller for controlling the 24 VDC Becker tube motor L60-M06, L120-M06 and XL200-M06. The specifications of the controller are tailored to 24 VDC Becker tubular motors. Supplied with pre-assembled power cable and plug. Optional connection of a battery is possible for use in case of power failure. Connection of a standard rotary switch is possible.

- Suitable for the following Becker motors
- Becker L60-M06 - 24 Volt DC
- Becker L120-M06 - 24 Volt DC
- Becker XL200-M06 - 24 Volt DC
- dimensions 128x180x90 mm (wxhxd)
- grey plastic housing
- protection class IP65
- weight 2,8 Kg
- power supply 230V / 50-60 Hz
- motor voltage 24V DC, max 6 Ampere

download here the wiring diagram of the Becker GS2 24 Volt DC control box
