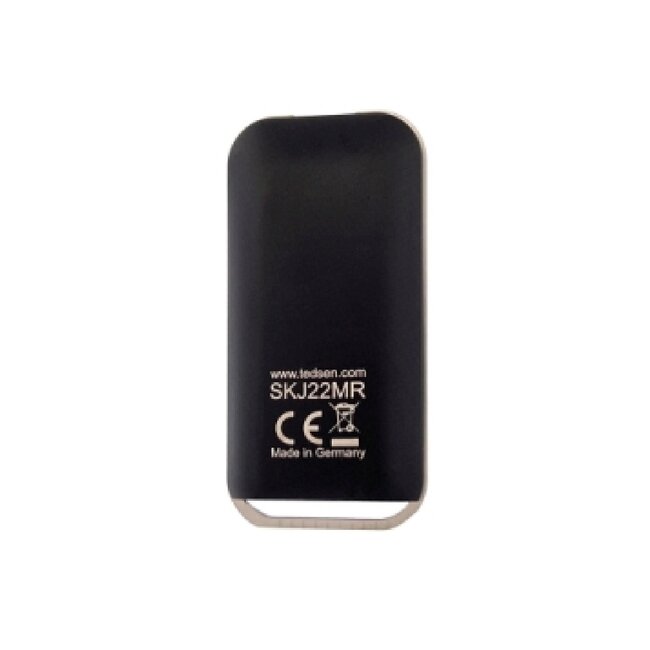

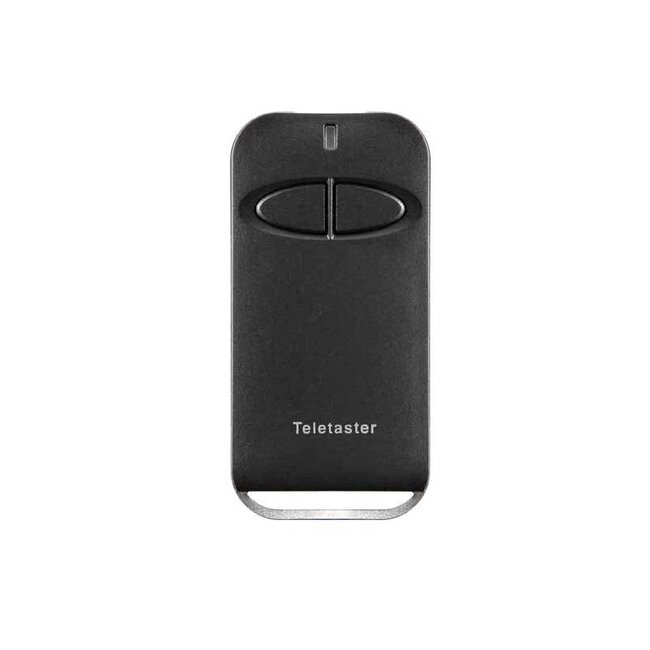

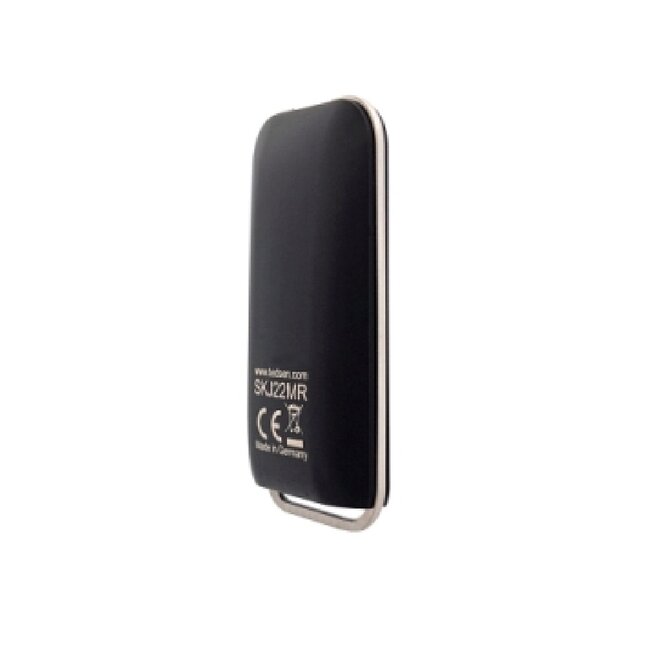

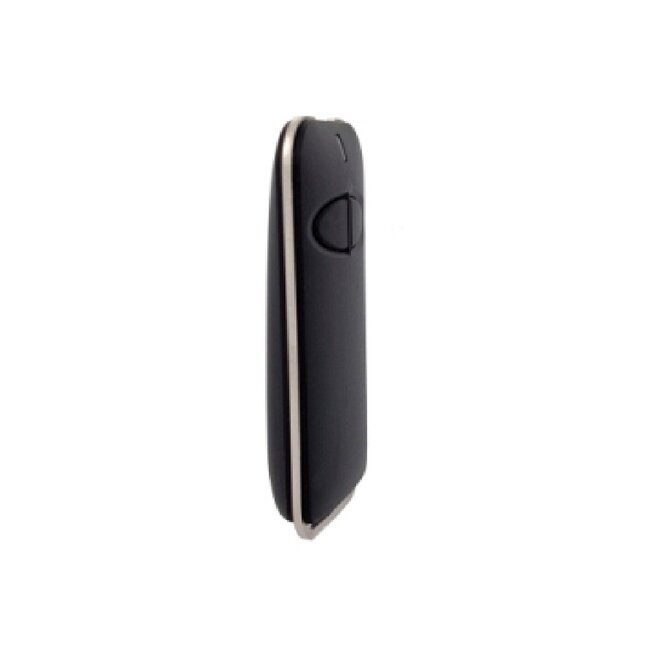

Tedsen SKJ22MR 2-channel 433 MHz midi handheld transmitter

Applicable with a product equipped with Tedsen receiver with a frequency of 433 MHz
- frequency 433 MHz
- suitable as replacement for the SKX2MD
- easy to program
- pulse control for 2 systems (one-button operation)
- up-down control for one system
- colour black with steel edge
- housing dimensions 68x34x11 mm (lxwxh)
- battery 3 volt CR2032
- battery supplied as standard
- for teaching an SKJ22MR handheld transmitter to a receiver or control box a
SKX handheld transmitter with dipswitches is required.
- for an additional handheld transmitter the SKJ22MR handheld transmitter code must be learned from an
already functioning SKX or SKJ Handheld transmitter

Code setting of the Tedsen SKJ22MR midi handheld transmitter

Due to its small size, the SKJ22MR Handheld transmitter does not contain dip switches, so coding is transferred via radio signal from an already functioning Tedsen SKX or SKJ handheld transmitter.

First set up your roller shutter control or receiver with another Tedsen Teletaster handheld transmitter SKX1MD, SKX2MD, SKX3MD, SKX4MD, SKX-LC, SKX1WD, SKX2WD, SKX4WD, SKX-HD or SKX after which the coding can be transferred to the SKJ22MR handheld transmitter.

Transferring the coding to a new SKJ... Handheld transmitter:
1. Hold the top two buttons of the new SKJ... Handheld transmitter for about 4 seconds until the LED light comes on and off briefly.
2. Place the new and old Handheld transmitters side by side (against each other).
3. Press the first functional button of the old Transmitter and keep it pressed.
4. Press the first button on the new Handheld transmitter.
5. Press and hold both buttons for about 5 seconds, the LED light on the new handheld transmitter will briefly turn on and off.
6. The code for the first button is now transferred to the new Handheld transmitter.
7. Repeat steps 1 to 5 for each subsequent button you want to transfer.
8. Your new Tedsen SKJ... Handheld transmitter is now ready for use.
