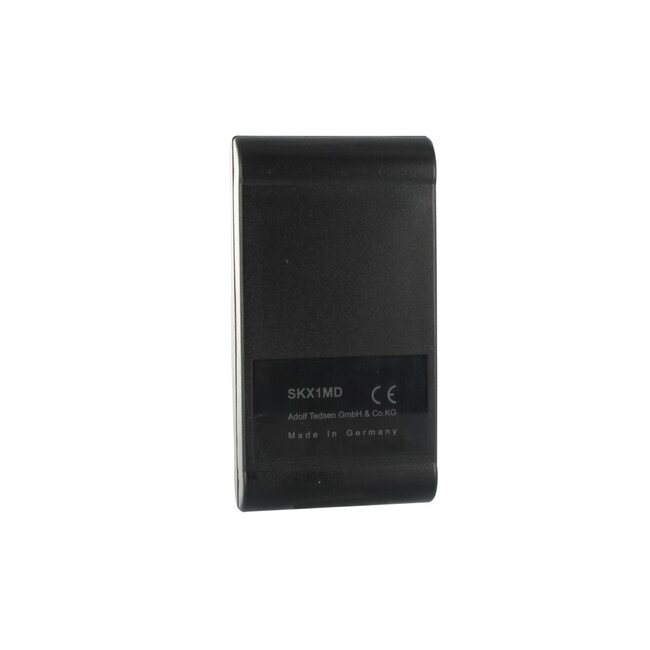

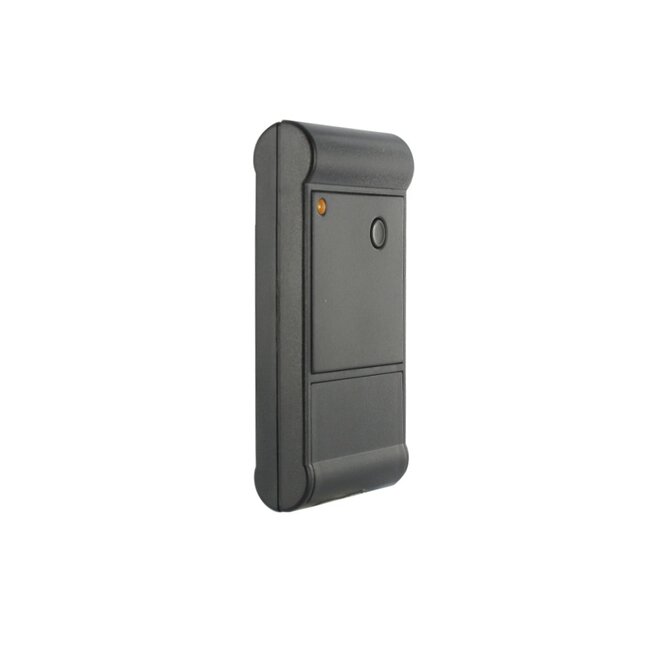

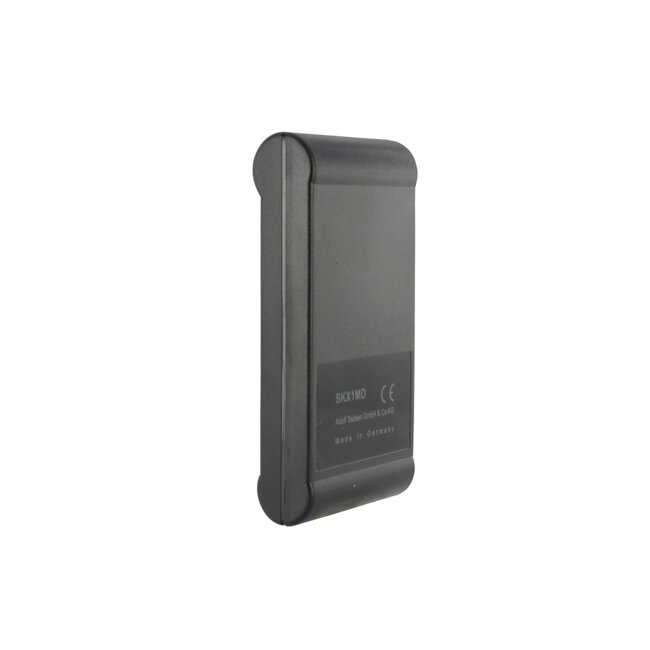

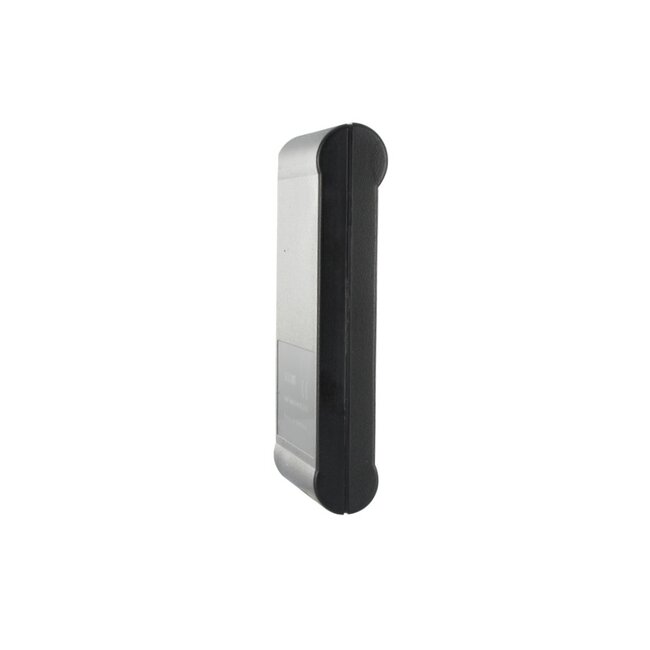

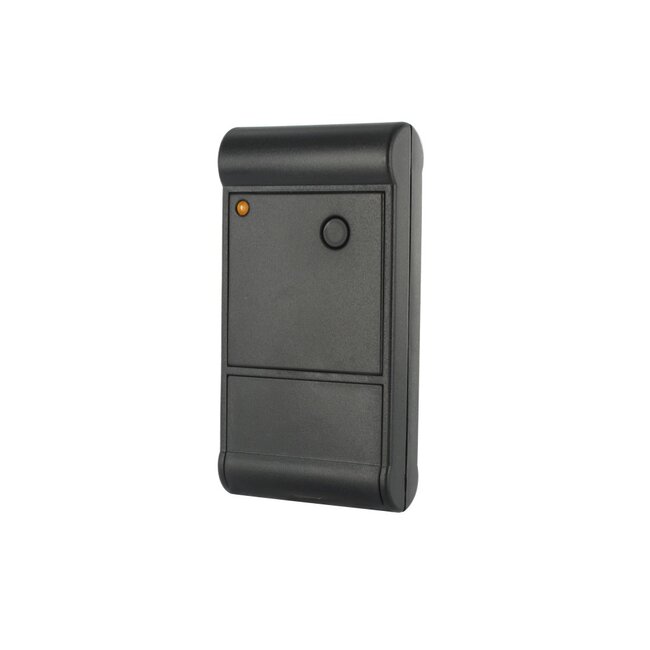

Tedsen SKX1-MD 1-channel 433 MHz midi handheld transmitter

- applicable with a product equipped with Tedsen receiver with a coding switch
- frequency 433.92 MHz
- 1-channel handheld transmitter for roller shutters and awnings
- recognisable by the orange/yellow LED during control
- coding dipswitches have 3 positions
- simple to set the coding yourself
- pulse operation for one system (one press of a button)
- Colour black
- dimensions 78x41x15 mm
- weight 30 grams
- battery 12 Volt MN21
- battery supplied as standard

The Tedsen SKX1MD 1-channel Handheld transmitter is a handheld transmitter supplied by many renowned roller shutter suppliers when a roller shutter is operated with a transmitter, including Brinkman - Doorfix - Euroll - Floor - GNS - GNS Brinkman - Kartech - Nederlandse Rolluiken Fabriek (NRF) - Protector - Rolluikenfabriek - Rolvatec - Rycol - Slaets - Stackdoor - Teletaster - Vermij - Wessels & Westend.

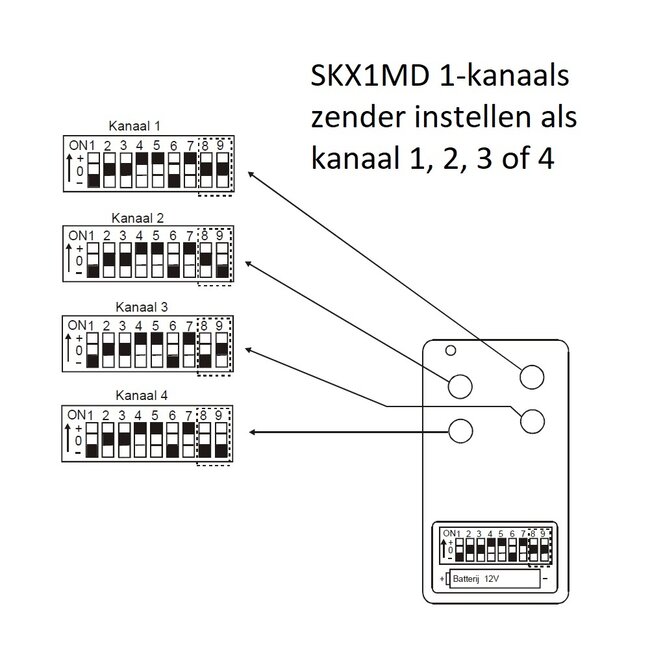

Setting the coding of a Tedsen handheld transmitter with dipswitches.

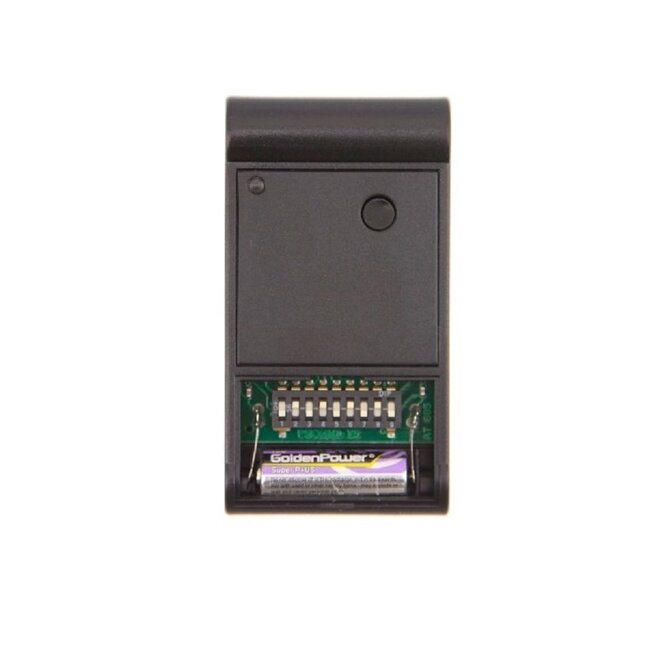

Setting up a Tedsen SKX or SM handheld transmitter is very easy. You only have to set the coding of the new handheld transmitter to the coding of an already functioning handheld transmitter. Under the battery cover there is a strip with 9 dipswitches with which the coding of the handheld transmitter must be set.

Depending on the frequency of the Handheld transmitter, the dip switches have 2 or 3 positions:
- if the handheld transmitter has 9 dip switches with 3 positions - ON (top) - 0 (middle) - OFF (bottom), it is a 433 MHz and 868 MHz handheld transmitter of the SKX, SFX, SKX-MD, SFX-MD, SKX-LC, SKX-WD, SFX-WD and SKX-HD series.
- If the handheld transmitter has 9 dip switches with 2 positions - ON (top) - OFF (bottom), it is a 27 MHz handheld transmitter of the SM and SM-MD series.

-- download the instructions for setting up the handheld transmitter here --.

When you order your Tedsen SKX1MD 1-channel midi handheld transmitter today, you will receive it the next working day.
