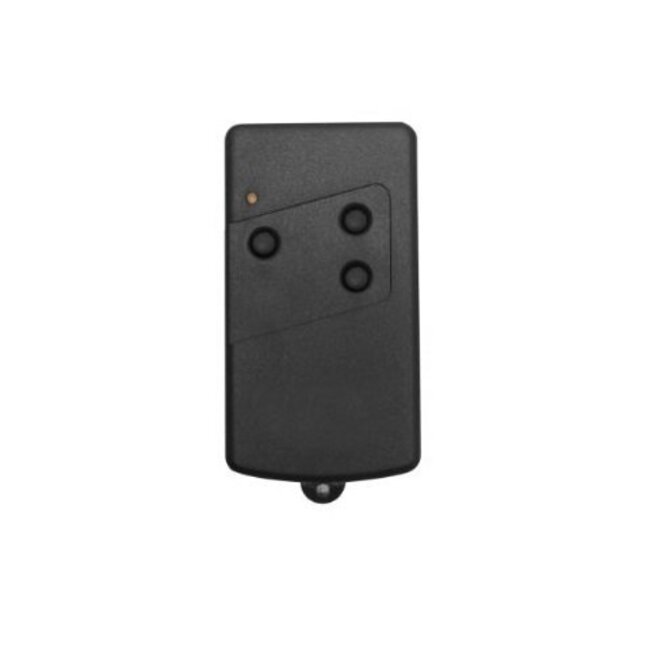

Tedsen SKX3-LC 3-channel 433 MHz midi handheld transmitter

This handheld transmitter is no longer available, see the Tedsen SKX4-LC as a replacement

- applicable with a product equipped with Tedsen receiver with a coding switch
- frequency 433.92 MHz
- orange/yellow LED during control
- coding dipswitches have 3 positions
- easy to program
- pulse control for 3 systems (one-touch operation)
- up-stop-down control for one system
- colour black
- size 83x42x16 mm
- provided with solid housing with a hole for a key ring
- battery supplied as standard

Can be used as replacement for the Tedsen SKX3MD Handheld transmitter, which is supplied as standard by the following roller shutter suppliers

Brinkman - Doorfix - Euroll - Floor - GNS Brinkman - Kartech - Nederlandse Rolluiken Fabriek (NRF) - Protector - Rolluikenfabriek - Rolvatec - Rycol - Slaets - Stackdoor - Teletaster - Vermij - Wessels - Westend

Setting Tedsen handheld transmitter coding with dip switches

Tedsen handheld transmitters are very easy to set up. Only the coding of the new handheld transmitter must be set to match the coding of an already functioning handheld transmitter.
Under the battery cover is a strip with 9 dipswitches, where the coding of the Handheld transmitter can be set.

Depending on the frequency of the Handheld transmitter, the dip switches have 2 or 3 positions:
- 9 dip switches with 2 positions - ON (top) - OFF (bottom)
Handheld transmitters with 27 MHz
SM and SM-MD series
- 9 dip switches with 3 positions - ON (top) - 0 (middle) - OFF (bottom)
433 MHz and 868 MHz handheld transmitters
SKX, SFX, SKX-MD, SFX-MD, SKX-LC, SKX-WD and SKX-HD series
