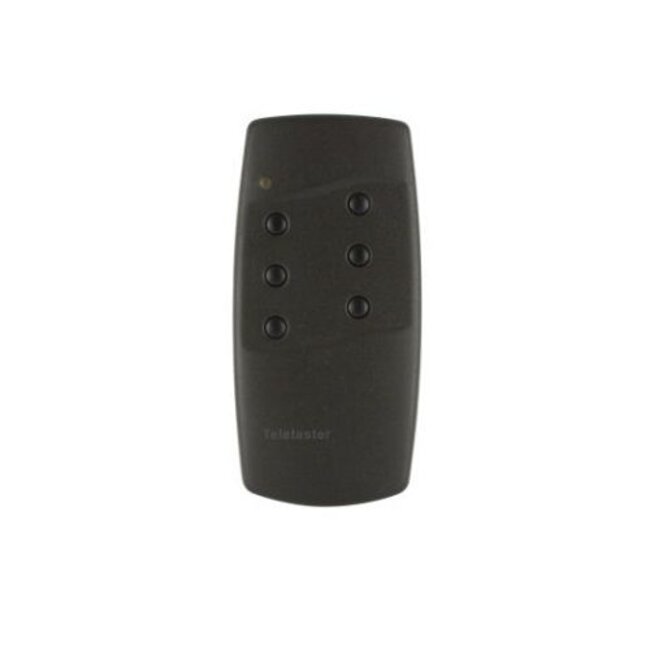

Tedsen SKX66-HD 6-channel 433 MHz maxi handheld transmitter

- applicable with Tedsen receiver with coding switch
- frequency 433.92 MHz
- orange/yellow LED during control
- coding dipswitches have 3 positions
- each individual channel can be given its own code
- double-pole learning/operating switch
- easy to program
- pulse control for 6 systems (one-touch operation)
- up-down control for three systems
- Colour black
- dimensions 95x47x16 mm
- provided with solid housing with a hole for a key ring
- battery supplied as standard

Can be used as a replacement for the Tedsen SKX6MD Handheld transmitter, which is supplied as standard by the following roller shutter suppliers

Brinkman - Doorfix - Euroll - Floor - GNS Brinkman - Kartech - Nederlandse Rolluiken Fabriek (NRF) - Protector - Rolluikenfabriek - Rolvatec - Rycol - Slaets - Stackdoor - Teletaster - Vermij - Wessels - Westend

Setting Tedsen handheld transmitter coding with dip switches

Tedsen handheld transmitters are very easy to set up. Only the coding of the new handheld transmitter must be set to match the coding of an already functioning handheld transmitter.
Under the battery cover is a strip with 9 dipswitches, where the coding of the Handheld transmitter can be set.

Depending on the frequency of the Handheld transmitter, the dip switches have 2 or 3 positions:
- 9 dip switches with 2 positions - ON (top) - OFF (bottom)
Handheld transmitters with 27 MHz
SM and SM-MD series
- 9 dip switches with 3 positions - ON (top) - 0 (middle) - OFF (bottom)
433 MHz and 868 MHz handheld transmitters
SKX, SFX, SKX-MD, SFX-MD, SKX-LC, SKX-WD and SKX-HD series
