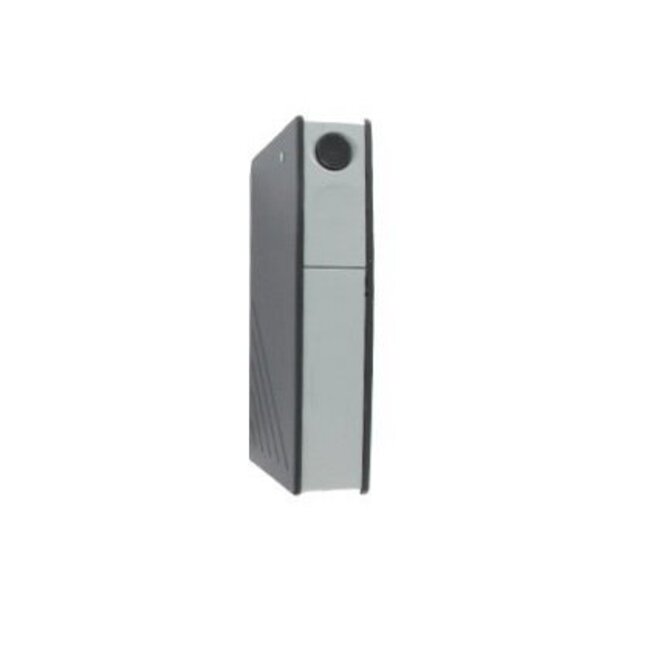

Tedsen SM1 - 1-channel 26.985 MHz handheld transmitter

- can be used with Tedsen receiver with coding switch
- frequency 26.985 MHz
- green LED during control
- coding dipswitches have 3 positions
- easy to program
- pulse operation (one button press)
- colour grey/black
- dimensions 85x60x20 mm
- fitted with sturdy plastic housing
- standard supplied with 9 Volt battery

Until 15 years ago, this Tedsen Teletaster SM1 was usually supplied as standard by the following Roller Shutter suppliers.

Brinkman - Doorfix - Euroll - Floor - GNS - GNS Brinkman - Kartech - Nederlandse Rolluiken Fabriek (NRF) - Protector - Rolluikenfabriek - Rolvatec - Rycol - Slaets - Stackdoor - Teletaster - Vermij - Wessels - Westend

Setting Tedsen handheld transmitter coding with dipswitches.

Tedsen handheld transmitters are very easy to set up. Only the coding of the new handheld transmitter must be set to match the coding of an already functioning handheld transmitter.
Under the battery cover is a strip with 9 dip switches, where the coding of the Handheld transmitter can be set.

Depending on the frequency of the Handheld transmitter, the dip switches have 2 or 3 positions:
- 9 dip switches with 2 positions - ON (top) - OFF (bottom)
Handheld transmitters with 26.985 MHz
SM and SM-MD series
- 9 dip switches with 3 positions - ON (top) - 0 (middle) - OFF (bottom)
Handheld transmitters with 433 MHz and 868 MHz
SKX, SFX, SKX-MD, SFX-MD, SKX-LC, SKX-WD, SFX-WD and SKX-HD series transmitters

Please note this transmitter may have a long delivery time, as it is produced to customer order
