Hörmann HER 1, BiSecur 1-channel receiver

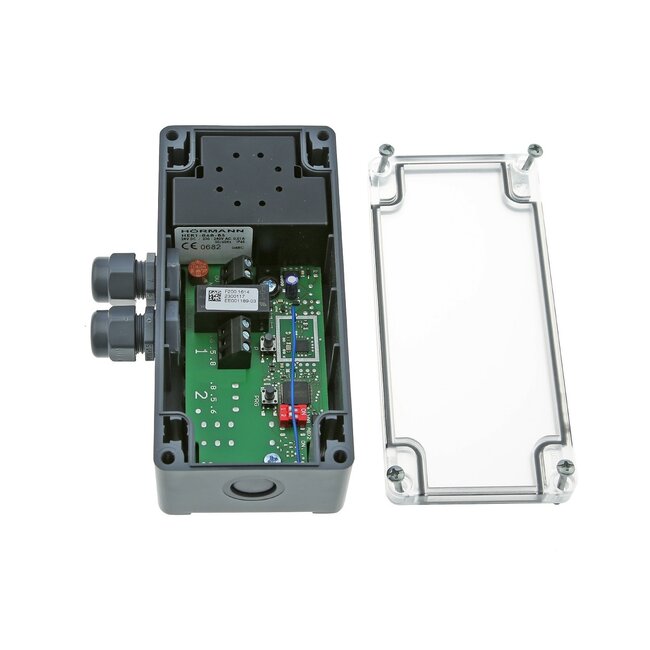

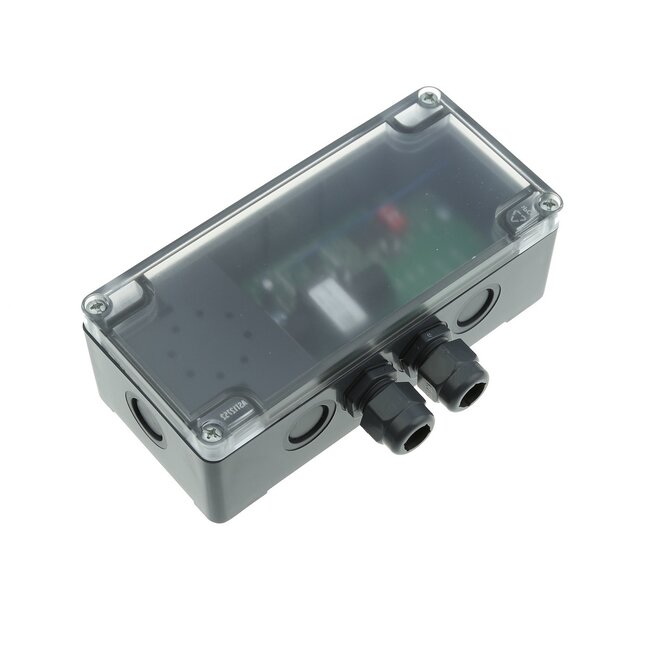

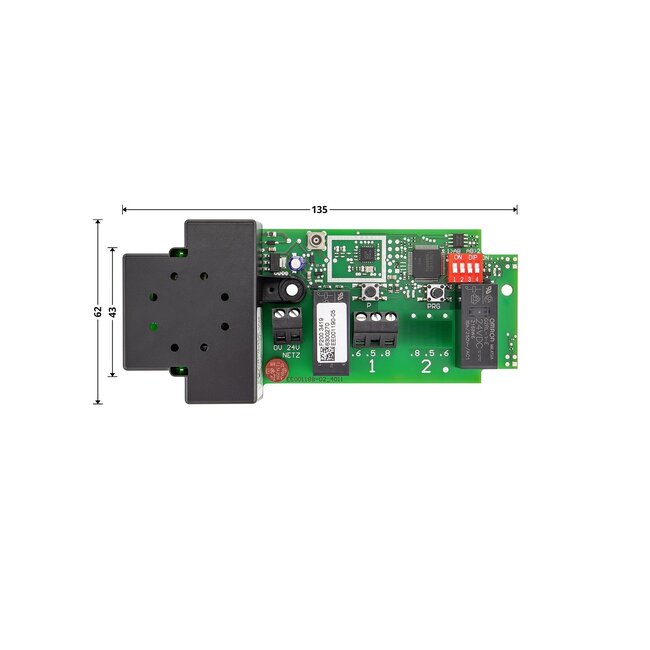

The 1-channel relay receiver HER 1, 868 MHz BiSecur (868-BS) can be used as a potential-free Hörmann receiver to control a gate operator (also a third-party operator), an electric front door opener, a light or other electrical device. The circuit board is housed in an IP65 enclosure. This makes the HER 1 868-BS ideal for outdoor use. Thanks to its impulse function, it can be used to open and close a garage door. However, you can also use it for lighting.

The Hörmann HER 1 receiver has a relay output that can be used for one of the following functions. The first is the impulse function for opening and closing an entrance gate or garage door. When setting the second function, HER 1 serves purely as an on/off switch. The third function is to control an expandable or shortenable 3-minute light. The fourth function is a programmable impulse, e.g. to activate an electric door opener.

Technical specifications
- frequency 868.3 MHz
- protocol BiSecur
- protection category IP65
- 4 functions: on/off, pulse 0.5 s, 3 minutes light, adjustable pulse (selection via DIL switch)
- feedback possible (switching status of the relay)
- plastic housing
- 1 potential-free relay output
- power supply 24 V DC or 230 - 240 V AC
- Switching capacity: 30 V DC / 2.5 A or 250 V AC / 500 W

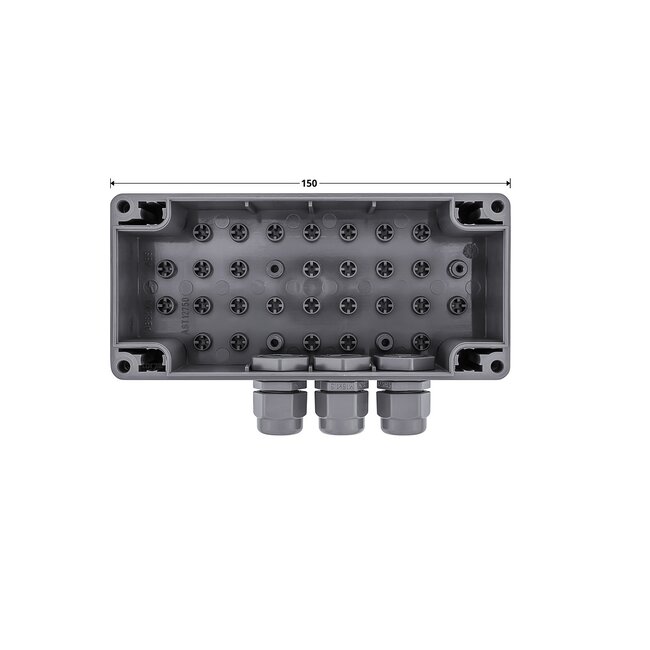

- dimensions 150 x 70 x 55 (wxhxd)

Download here the operating instructions for the Hörmann HER 1, BiSecur 1-channel universal receiver
