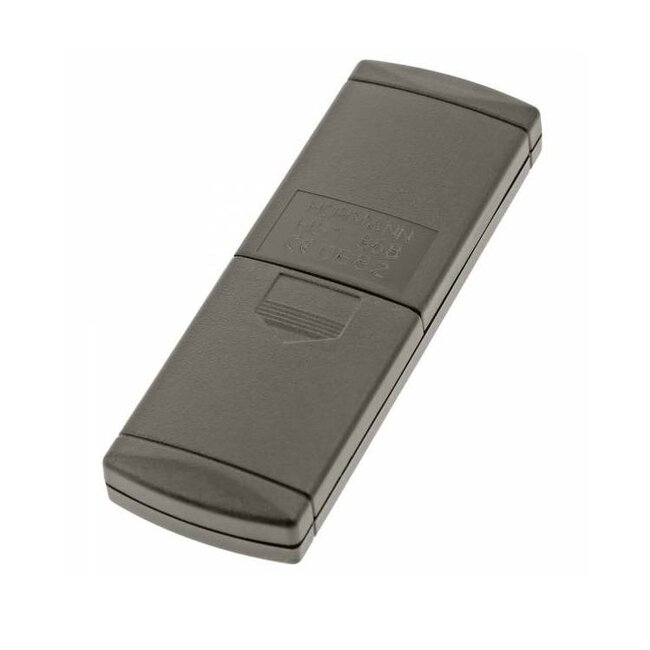

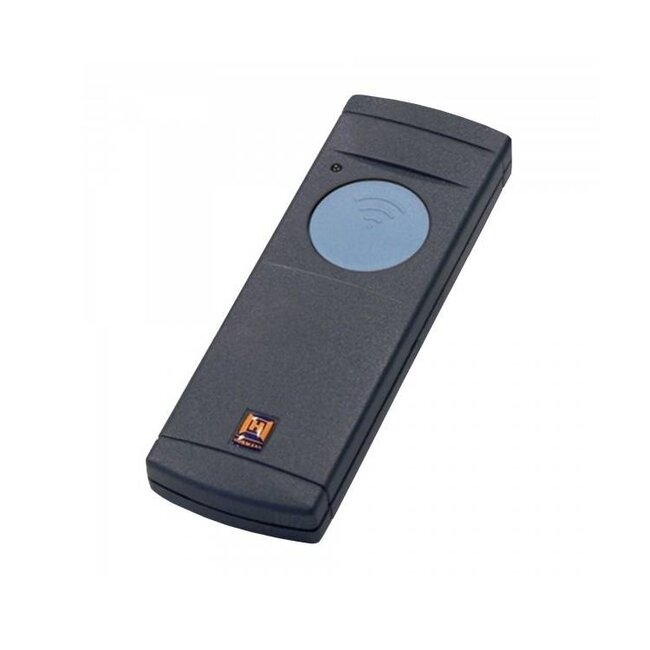

Hormann HS1 - 868 MHz 1-channel handheld transmitter

- frequency 868.30 MHz
- suitable for all Hörmann operators with frequency 868.30 MHz
- Dimensions 37x100x12 (wxhxd)
- 1 channel
- impulse control
- Black colour
- blue push button

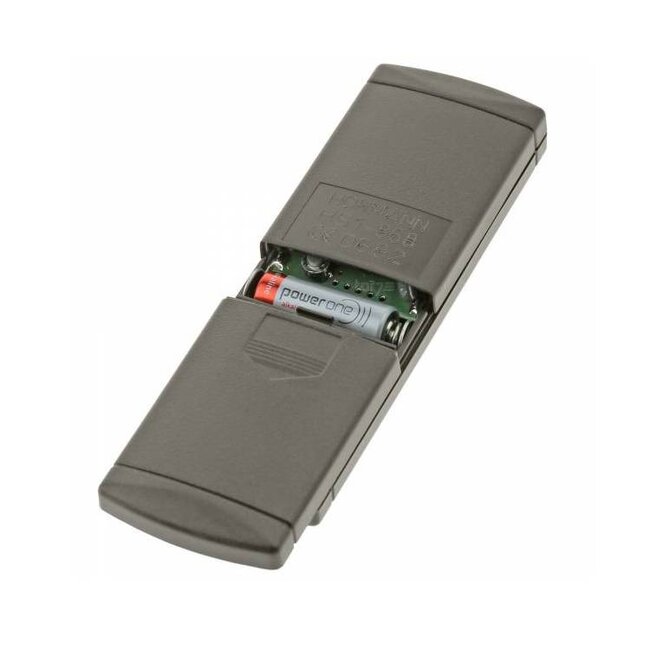

- battery 12 Volt, type 23A
- self-learning coding
- range up to 30 metres
- HomeLink compatible

Handheld transmitter range depends on the environment.

With regard to the transmitter range, it should be noted that concrete walls or walls, power cables and transmission masts can affect the range of the Handheld transmitter.

Thanks to its self-learning coding, the Hörmann Handheld transmitter HS1 is very easy to program and use. The enclosed operating instructions are helpful. The blue colour of the buttons indicates that the Hormann Handheld transmitter has a frequency of 868 MHz and is not equipped with BiSecur technology.

General information on button colours and frequencies for Hörmann handheld transmitters

Hörmann remote controls with green buttons, unlike remote controls with other button colours, can be delivered in different frequency ranges. This mainly led to country-specific differences, where a frequency was usually used more in a European country. The Hörmann HSM4 remote control with 27.445 MHz was mainly used in the Netherlands, with 27.015 MHz was mainly used in France, while in Germany, for example, the frequency 26.975 MHz was more focused on. In Belgium, Denmark, the UK and Austria, the 26.995 MHz frequency was more likely to be used. Therefore, when choosing the right remote control, pay attention not only to the button colour, but also check the frequency range carefully

- blue buttons --> frequency 868.3 MHz (latest version)
- grey buttons --> frequency 40,685 MHz (previous version)
- green buttons --> frequency 27,455 MHz (Netherlands)
- green buttons --> frequency 27,015 MHz (France)
- green buttons --> frequency 26,975 MHz (Germany)
- green buttons --> frequency 26,995 MHz (Belgium, Austria, Denmark and England)
- Ecostar --> frequency 433.92 MHz

Important note:
Hörmann handheld transmitters are not compatible with other handheld transmitters. Hörmann handheld transmitters only work on Hörmann garage door operators!
