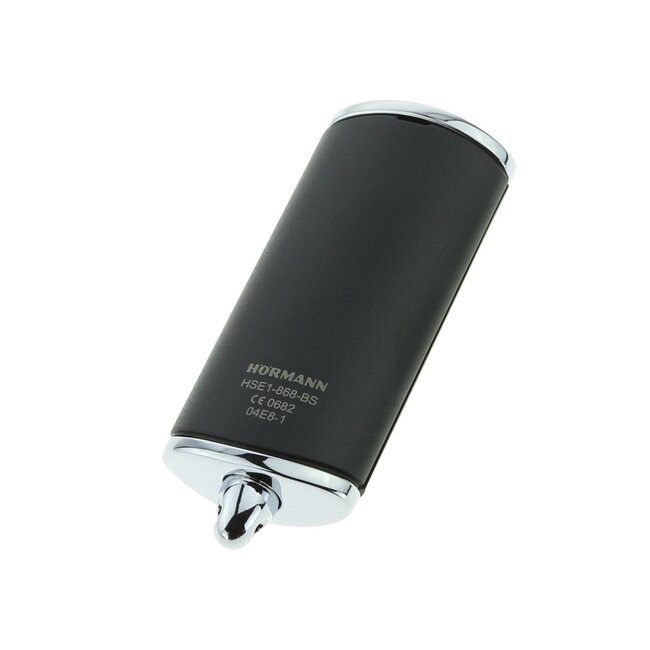

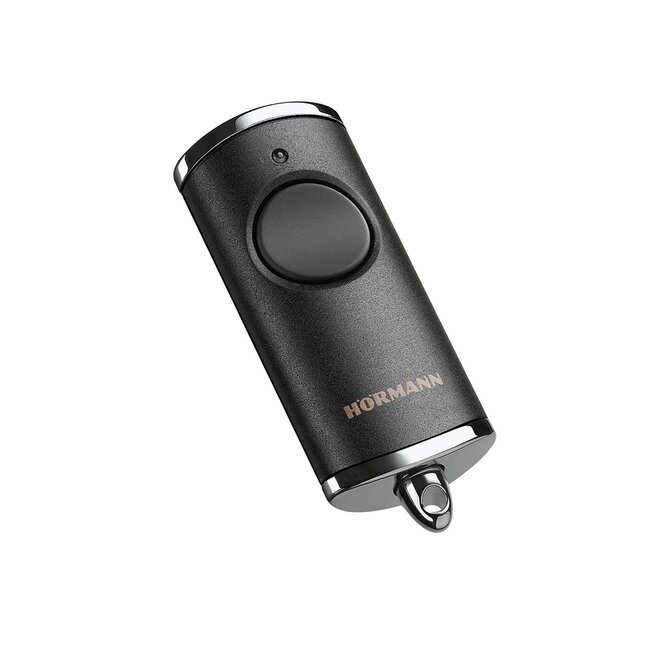

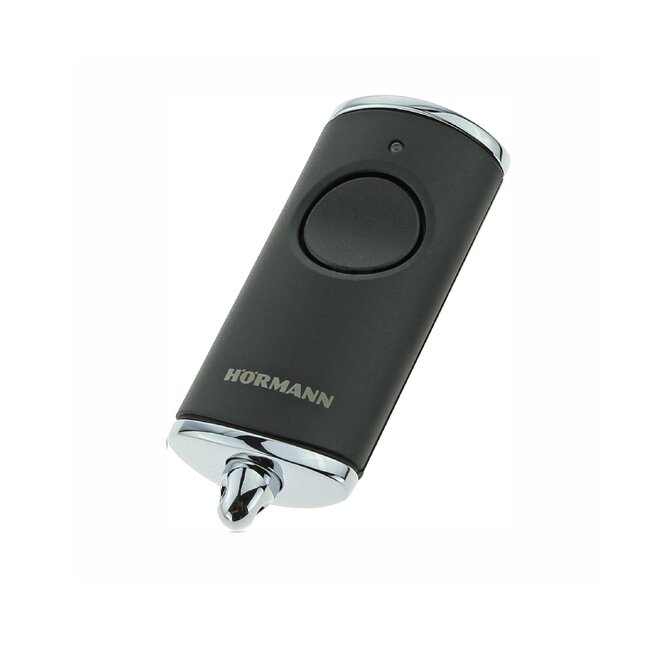

Hormann HSE1 868 MHz BiSecur 1-channel handheld transmitter black
- frequency 868,30 MHz
- encryption BiSecur
- 1 channel
- black plastic housing with textured surface
- pulse operation
- self-learning code
- switchable to fixed code possible
- 3 Volt battery CR2032
- including ring for on key ring
- dimensions 28x70x14 (wxhxd)
- temperature range: 0 °C to +50 °C
- range up to 30 metres
- HomeLink compatible after conversion to fixed coding
Handheld transmitter with the latest BiSecur technology
Hörmann's patented BiSecur technology is based on 128-bit encryption, similar to home banking. Thus, copying the handheld transmitter's radio signal is simply excluded and increases the security of your control. In addition, the range can be increased, which is still highly dependent on ambient conditions. The BiSecur handheld transmitter only functions with Hörmann garage door operators with integrated BiSecur receivers or with an external BiSecur receiver. After adapting the Handheld transmitter to a fixed 868 MHz code, you can also operate all devices equipped with a Hörmann 868 MHz receiver.
HomeLink compatibility
Many motor vehicles are already equipped with a so-called "auto" button for operating a garage door operator. The code of the Handheld transmitter is transferred to the corresponding HomeLink button of the vehicle. However, this only works with the fixed 868 MHz code and not with BiSecur encryption. To use this function, a BiSecur handheld transmitter must first be converted to the 868 MHz fixed code and a compatible 868 MHz receiver must be connected to the drive. Actual Hörmann door drives with BiSecur receivers are therefore not specifically controlled by HomeLink. If you want to control this with HomeLink, you must connect an additional 868 MHz receiver.
Application of the HSE 1 BiSecur handheld transmitter
- an existing BiSecur or 868 MHz receiver is required
- SupraMatic E/P garage door operator
- ProMatic and ProMatic Akku garage door operators
- RollMatic garage door operator
- RotaMatic / P / PL garage door operator and Akku
- Swing gate operator VersaMatic / P
- Slide gate operator LineaMatic / P
- All other products with Hörmann BiSecur or 868 MHz receiver
Set new transmitter using old transmitter
Press and hold down the button on the old Transmitter
- the LED lights up blue for 2 seconds and then goes out
- after 5 seconds, the LED alternately flashes red and blue
2. place the new Handheld transmitter to the left of the old transmitter
3. press and hold the button of the new transmitter as well
- the LED flashes blue slowly
- if the code is recognised, the LED flashes blue rapidly
- after 2 seconds, the LEDs of the old and new transmitter go out
4. the new transmitter is operational
Resetting the handheld transmitter, transmitter receives new code(s)
1. open the battery cover and remove the battery for 10 seconds
2. press and hold a button on the Transmitter
3. insert the battery and close the battery cover
- the LED flashes blue slowly for 4 seconds
- the LED flashes blue quickly for 2 seconds
- the LED lights up blue for a long time
4. release the hand transmitter button
5. all radio codes have been reassigned
Setting the fixed code in the transmitter
1. open the battery cover and remove the battery 10 seconds
2. press and hold a button on the Transmitter
3. insert the battery and close the battery cover
- the LED flashes blue slowly for 4 seconds
- the LED flashes blue quickly for 2 seconds
- the LED lights blue for a long time
4. keep pressing the Transmitter button
- the LED flashes red slowly for 4 seconds
- the LED flashes red quickly for 2 seconds
- the LED lights up red for a long time
5. close the housing of the Handheld transmitter, the 868 MHz fixed code is activated
