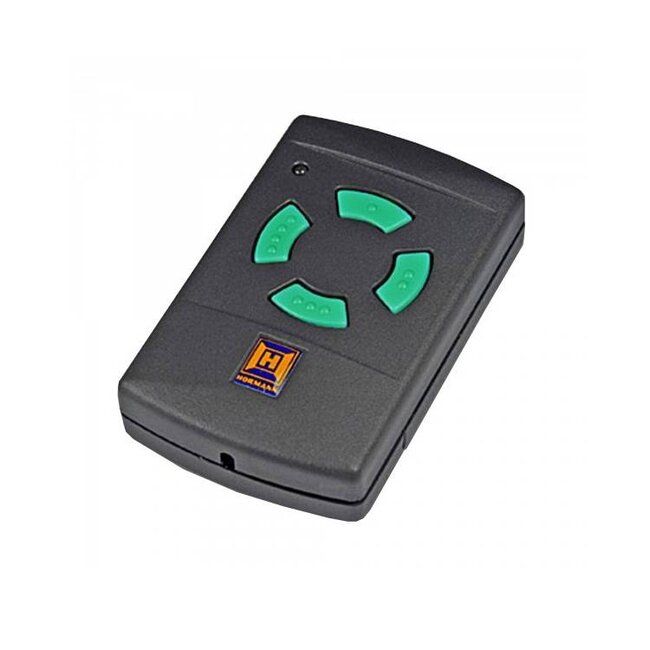

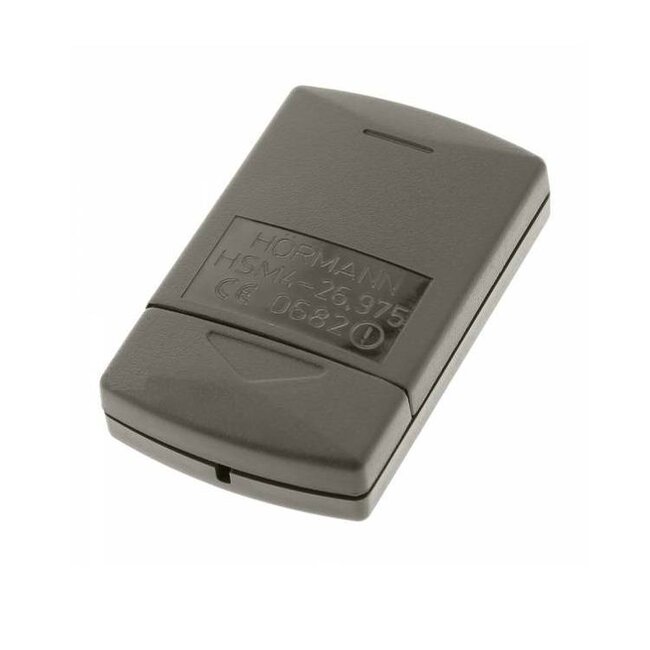

Hormann HSM4 - 26.975 MHz - 4-channel transmitter

- frequency 26.975 MHz, widely used in Germany
- suitable for all Hörmann operators with frequency 26.975 MHz
- dimensions 37x60x12 (wxhxd)
- 4 channels
- Black colour
- green push button

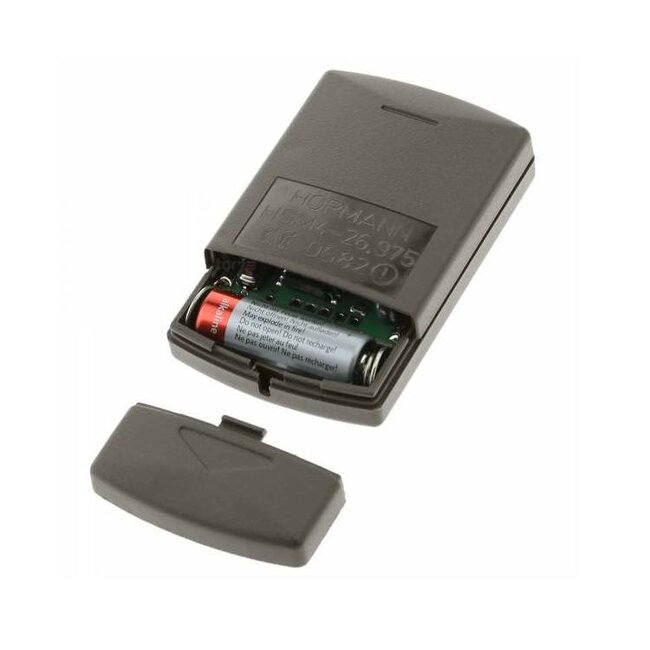

- battery 12 V, type 23A
- self-learning coding
- range up to 30 metres
- HomeLink compatible

General information on button colours and frequencies for Hörmann Handheld transmitters

Hörmann remote controls with green buttons, unlike remote controls with other button colours, can be supplied in different frequency ranges. This mainly led to country-specific differences, where a frequency was usually used more in a European country. The Hörmann HSM4 remote control with 27.445 MHz was mainly used in the Netherlands, with 27.015 MHz was mainly used in France, while in Germany, for example, the frequency 26.975 MHz was more focused on. In Belgium, Denmark, the UK and Austria, the 26.995 MHz frequency was more likely to be used. Therefore, when choosing the right remote control, pay attention not only to the button colour, but also check the frequency range carefully

- blue buttons --> frequency 868.3 MHz (latest version)
- grey buttons --> frequency 40,685 MHz (previous version)
- green buttons --> frequency 27,455 MHz (Netherlands)
- green buttons --> frequency 27,015 MHz (France)
- green buttons --> frequency 26,975 MHz (Germany)
- green buttons --> frequency 26.995 MHz (Belgium, Eastern Austria, Denmark and England)

Hörmann Handheld transmitter with self-learning coding system

The range of the hand transmitter can be affected by walls or walls made of concrete, power cables and transmitters. The Hörmann Handsender HSE2, 26.975 MHz, has a self-learning coding system, so programming is simple and fast. If an identical Hörmann Handheld transmitter HSE 2, 26.975 MHz is already available, coding transmission from handheld transmitter to handheld transmitter is even possible. The blue colour of the push buttons indicates that this device operates at 26.975 MHz.

Important note:
Hörmann handheld transmitters are not compatible with other handheld transmitters. Hörmann Handheld transmitters only work on Hörmann garage door operators or external receivers from Hörmann
