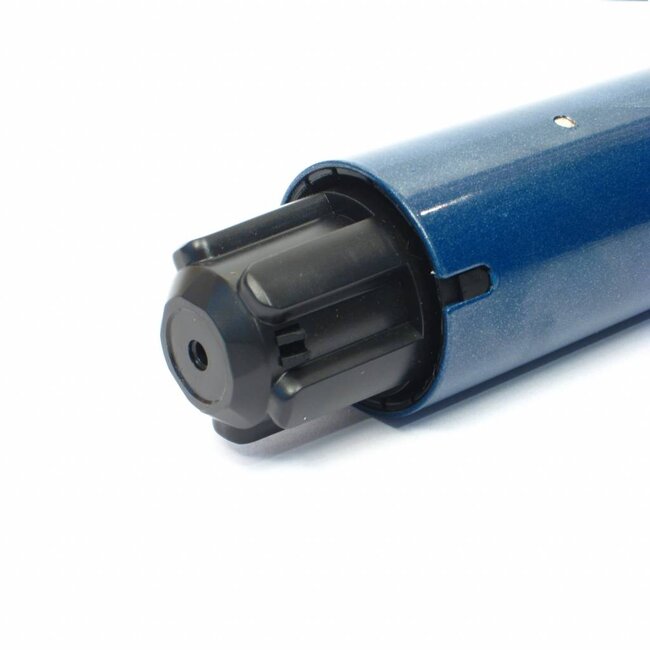

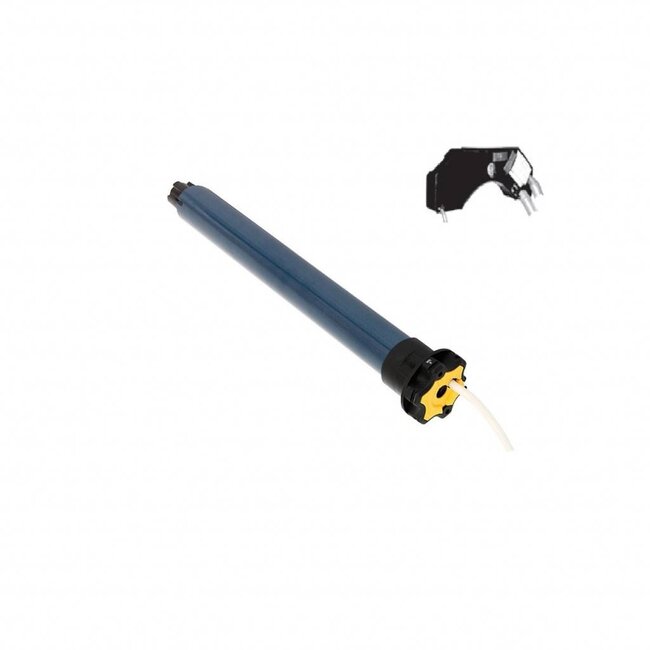

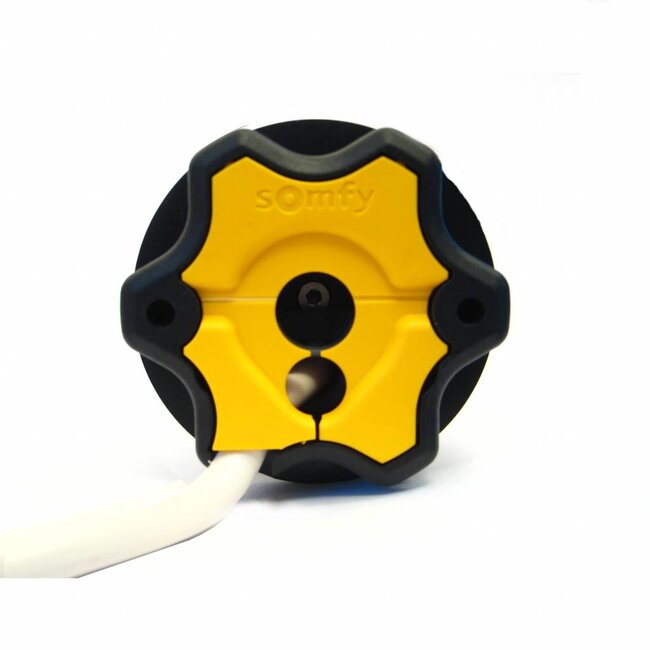

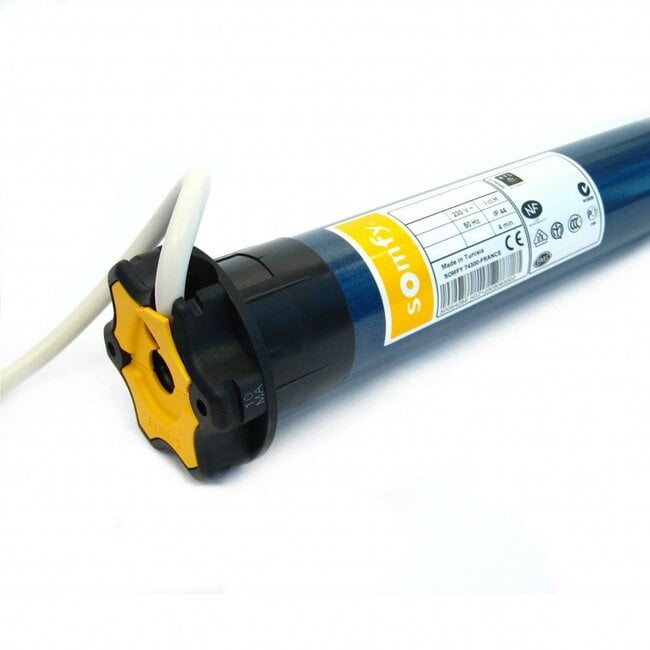

Somfy Ilmo 50 S short tube motor with fully automatic adjustment

- supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- note: short tube motor with separate external Ilmo circuit board
- available in 6 Nm
- adapters and carriers of Somfy 50 series
- suitable for Roller shutters from 425 mm width
- length of tubular motor is 375 mm
- because of the fully automatic adjustment, the Motor does not need any adjustment and
the motor switches off on the measured resistance.
- possibility of combination with timer (possibly with light sensor).
- fits a tube with a minimum inner diameter of 47 mm.
- final adjustment capacity: 200 revolutions, run time limited to 4 min.
- supplied as standard with a white 4-wire (VVF) cord, length 3 m. Axial and radial cord output.
- not suitable for continuous use.
- intelligent obstacle detection in both the up and down direction.
- Motor stops in case of obstacle or freezing.
- automatic maintenance cycle (monthly if end points are set automatically),
so the Roller shutter always opens and closes perfectly.
- Applicable with all Somfy controllers.
- parallel connection of motors possible.
- cannot be used with suspension springs, only with a Lock-to-Play rigid connection to the Axle/Shaft.
