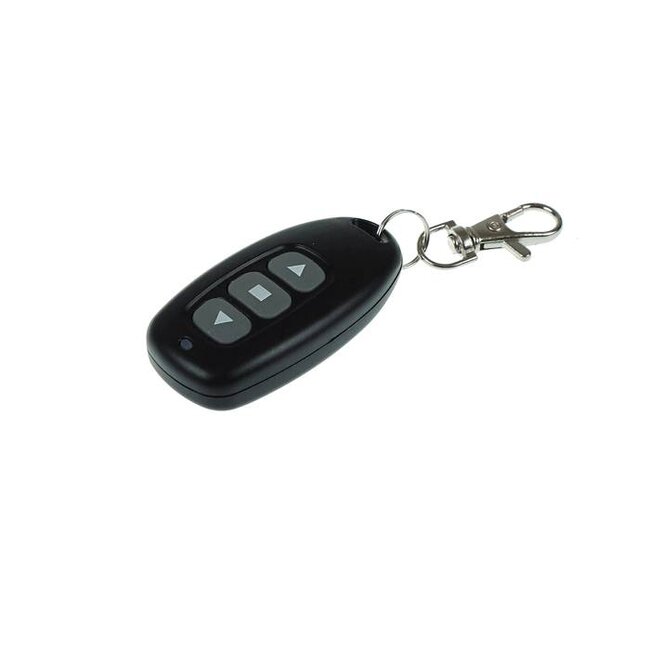

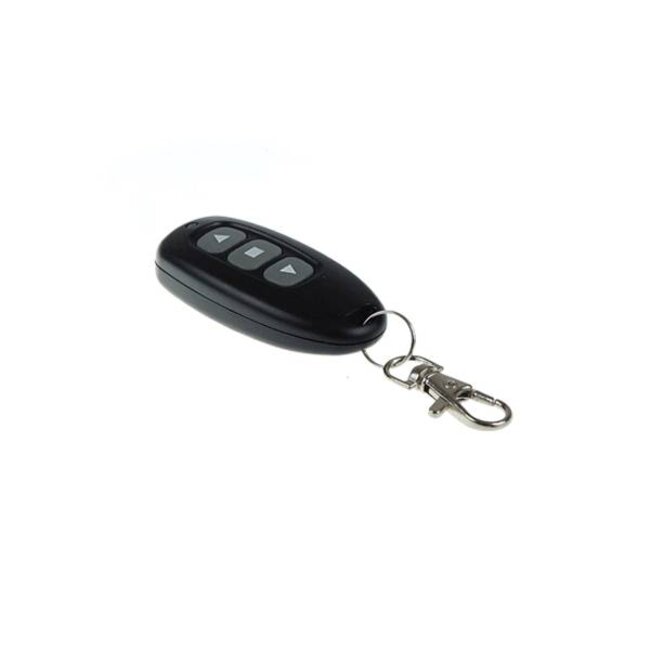

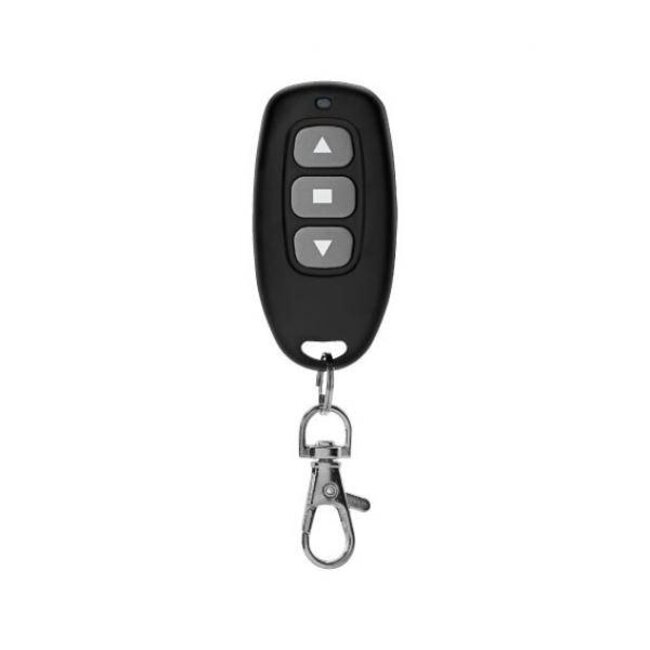

Selve Iveo Key Send 1 - 1-channel 868 MHz handheld transmitter

- Frequency 868 MHz
- 1 channel
- Black colour
- available in white and black
- simple control through uni-directional communication between transmitter and receiver
- longer range through hopping (repeating) the steering command if required
- Switch can be connected: operation and setting possible via auxiliary inputs
- interference- and eavesdrop-proof thanks to fast radio protocol and rolling
code technology
- downward-compatible with previous versions: motors and receivers can also be
control commands from iveo/intronic transmitters
- dimensions 32 x 64 x 15 mm
- battery A32 9 V

New Handheld transmitter programming in case of defective or missing transmitter

- power supply off for 3 seconds
- power supply on for 3 seconds
- power supply off for 3 seconds
- power supply on
- press the PROG button on the transmitter for 3 seconds
- all old transmitters/channels are deleted and the new Transmitter
is programmed

Programming additional Handheld transmitters/channels

- press for 3 seconds on the PROG button of an already functioning
Handheld transmitter , the confirms this by briefly running open and closed.
- the receiver is in programming mode for 1 minute
- briefly press (1 second) the PROG button of the new hand-held transmitter
or the new channel
- the new transmitter or channel is now programmed
