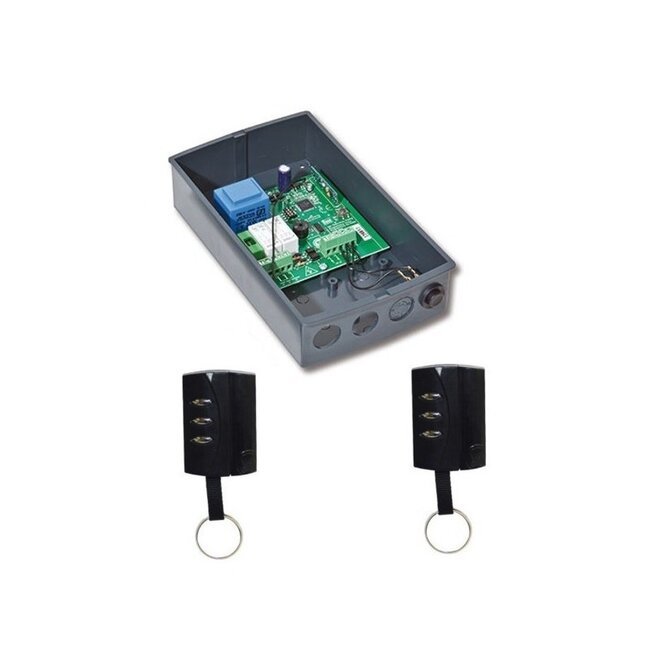

Pujol Kit Junior D Vario roller shutter control box

This kit consists of a Pujol roller shutter control box and 2 pieces of Pujol Vario Code Black 3-channel transmitters.

Technical characteristics
- power supply 230 V
- automatic or deadman control via push button or remote control
- suitable for connection of an obstacle detection device or photocell
- maximum motor power of 750 W
- 230 V output for signal light
- 24 Volt DC (125 mA) output for accessories
- automatic closing adjustable from 5 sec to 1 min 30 sec
- motor running time adjustable from 3 sec to 1 min
- built-in 433.92 MHz receiver
- built-in antenna
- range ± 60 metres
- memory for up to 31 transmitters
- programming of self-learning codes
- approval according to EYS 300-220 / ETS 300-683
- operating temperature from 0 °C to 70 °C
- control box dimensions 160x115x75 mm
- protection class IP44

Teaching a new handheld transmitter
Press the programming button on the old hand-held transmitter (small button on the back of the hand-held transmitter).
2. press the programming button of the new handheld transmitter
3. press the first control button on the new hand-held transmitter
4. wait 10 seconds (programming mode is automatically terminated)

If this does not work, dipswitch 3 in the control box may have to be set to "on".
