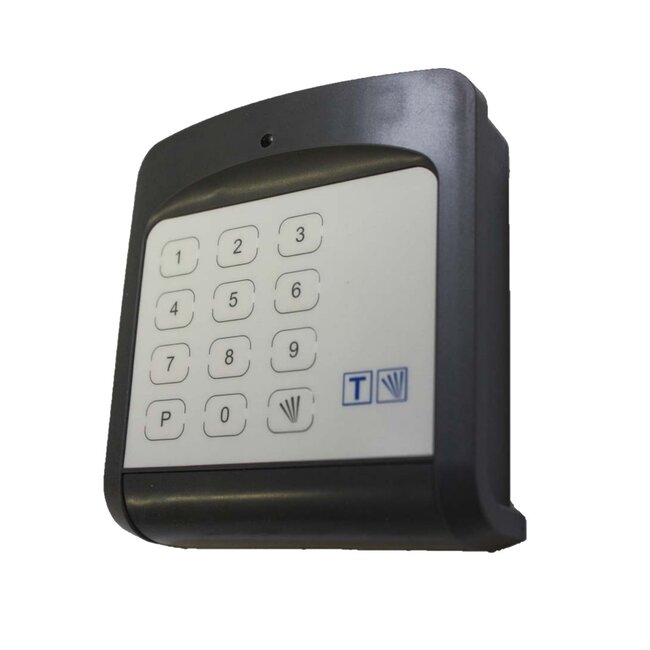

Tedsen SKX4C wireless code keypad

Thanks to its wireless operation, the code control panel is more comfortable to use than a traditional installation. It can be installed practically anywhere inside and outside the building.

Transmitter with 4 channels for controlling 4 devices with an individual PIN code (up to 8 digits). Control is via a touchpad control keypad.

- 4 Channels
- frequency 433.92 MHz
- capacitive keypad
- access codes 4 (max. 8 digits)
- dimensions: 83 x 86 x 29 mm
- surface wall mounting
- suitable for outdoor mounting
- coding, X coding (programming via keypad)
- battery 9V block battery 6 F 22
- housing grey plastic
- protection class IP54
- status indication by LED

Download the Tedsen SKX4C keypad manual here
