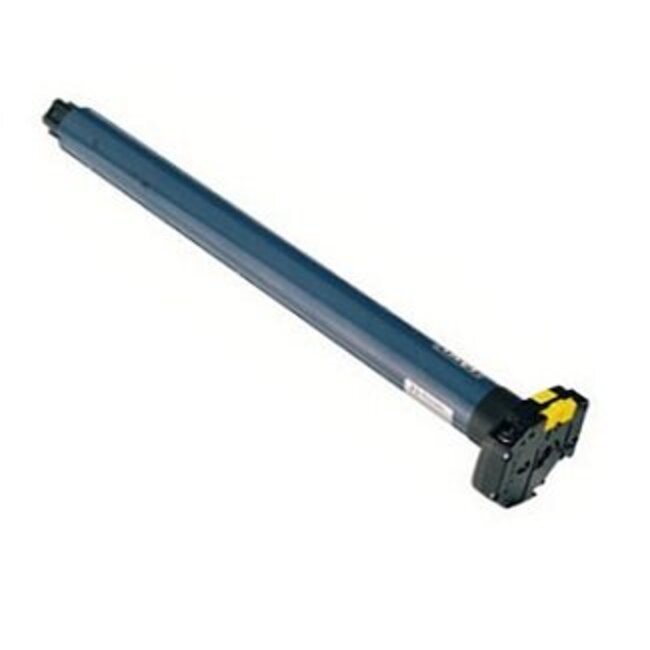

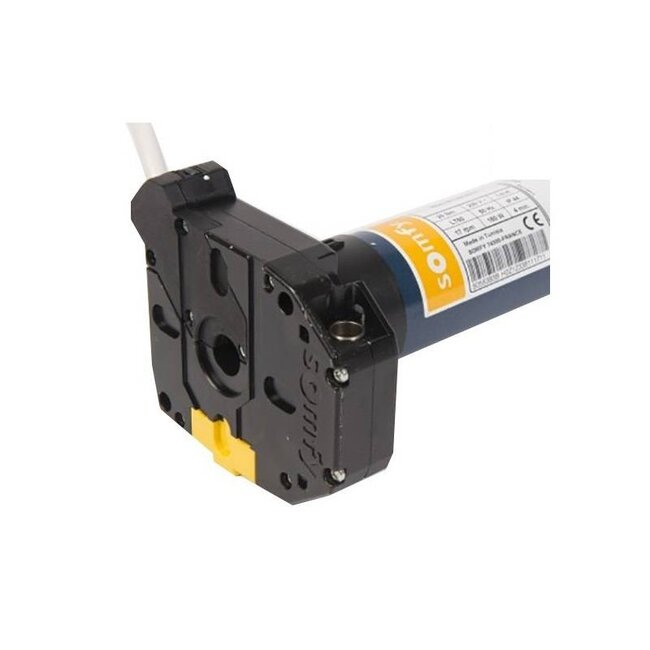

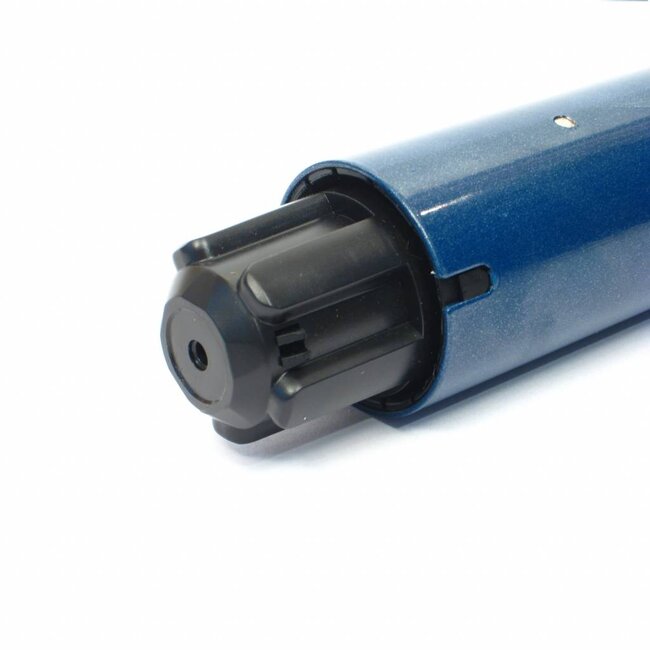

Somfy LT50 CSI RTS HiPro tubular motor with emergency hand control for awnings and Roller shutters

- Motor support and adapter set not included in delivery
- tubular motor suitable for sun blinds and roller shutters
- Tubular motor 230 V/50 Hz
- speed 17 rpm (6 to 40 Nm)
- speed 12 rpm (50 Nm)
- with built-in Somfy RTS receiver
- transmission range approximately 20 metres through 2 concrete walls
- two adjustable automatic intermediate positions possible
- one Somfy LT 50 CSI RTS tubular motor can be operated wirelessly with a maximum of 12 wireless
control points and a maximum of 3 RTS sensors.
- The advantage over the standard LT series is the built-in emergency operation in the event of a power failure.
power failure.
- Emergency manual transmission is 27:1
- 7 mm hexagonal shaft required

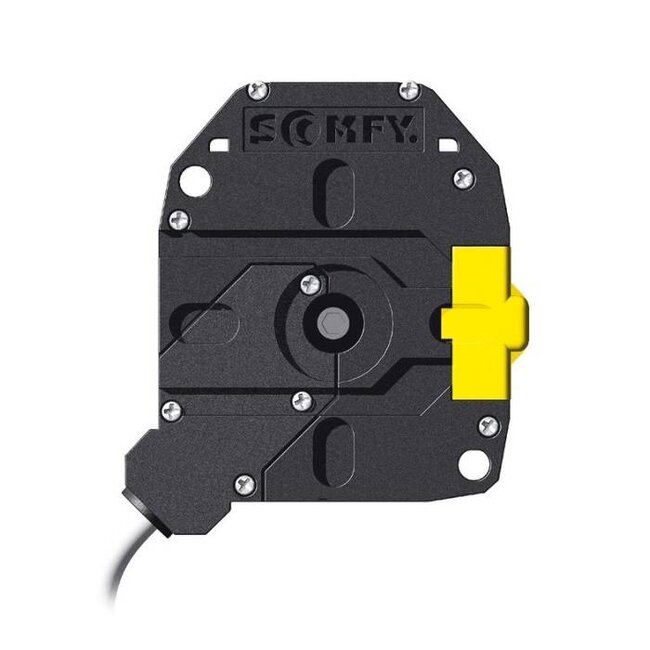

- Motor can be mounted directly on the hood support.

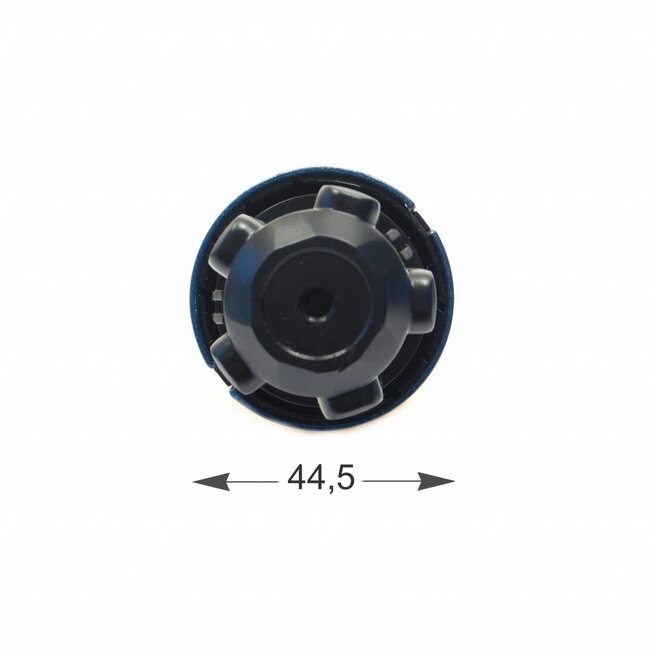

- Somfy LT 50 CSI RTS fits into a tube with a minimum inside diameter of 47 mm
- capacity of final adjustment 34 revolutions (± 8°).
- supplied as standard with a white 3-wire (VVF) cable, length 2.5 m
- radial cable outlet
- accessories series 50 Hipro tubular motors
- not suitable for continuous use
- not suitable for garage roller shutters

Somfy LT50 CSI RTS HiPro tubular motor is available in the following models
- Jet - LT 50 CSI RTS HiPro 10/17 - 10 Nm - 17 rpm - length 787 mm
- Meteor - LT 50 CSI RTS HiPro 20/17 - 20 Nm - 17 rpm - length 787 mm
- Helios - LT 50 CSI RTS HiPro 30/17 - 30 Nm - 17 rpm - length 787 mm
- Mariner - LT 50 CSI RTS HiPro 40/17 - 40 Nm - 17 rpm - length 787 mm
- Vectran - LT 50 CSI RTS HiPro 50/12 - 50 Nm - 12 rpm - length 787 mm

Somfy RTS tubular motors
All the advantages of wired tubular motors plus the benefits of innovative RTS technology. These are the Somfy RTS tubular motors: Altus RTS, Orea RTS and Oximo RTS. Thanks to an integrated
high-frequency receiver, these motors can be controlled with remote controls and wireless wall switches, among others.

Frequency and safety
Somfy RTS applications communicate via the transmission/reception frequency 433.42 MHz. For safety reasons, Somfy transmitter/receiver technology has 16 million varying codes. Up to 12 wireless control points can be set on an RTS tubular motor. No data loss occurs during any power failure.

Flexible
One remote control for several tubular motors? One Switch per tubular motor? Or several Remote controls and Switches for one tubular motor? With Somfy RTS technology, almost any combination between wireless control points and receiver(s) is possible. With a Telis remote control, all settings can be changed continuously, without dismantling the tubular motors.

Intermediate position
A favourite intermediate position can be set on all RTS tube motors. One push on the middle button of the remote control, for example, is then sufficient to reach this position automatically. Think of setting a 'half shade position' for sun blinds or the 'daylight opening' for Roller shutters.

Automatic operation
RTS tubular motors can also be operated automatically, for example via the 'wireless' automatic sun and wind controller Soliris Sensor RTS (for sun blinds) and via the wireless timer Telis 1 or 6 Chronis RTS (for roller shutters). An automatic sun and wind sensor opens and closes the blinds based on fully automatic sun and wind measurement and your personal preferences. With the timer, you program in advance the times you want the roller shutters to open and close. A light function is also possible here - as an extra option.
