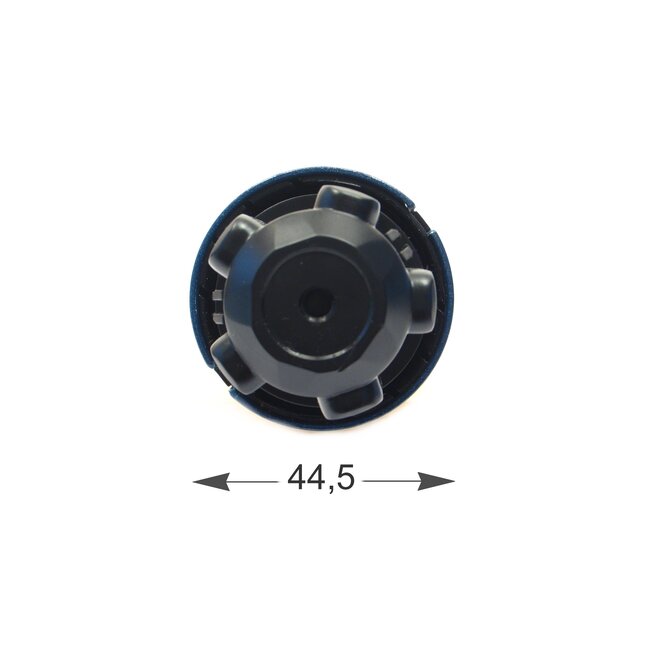

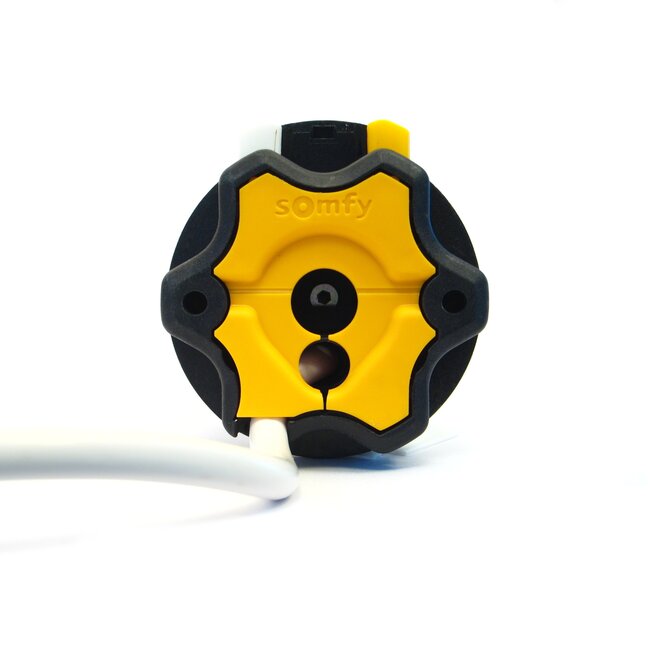

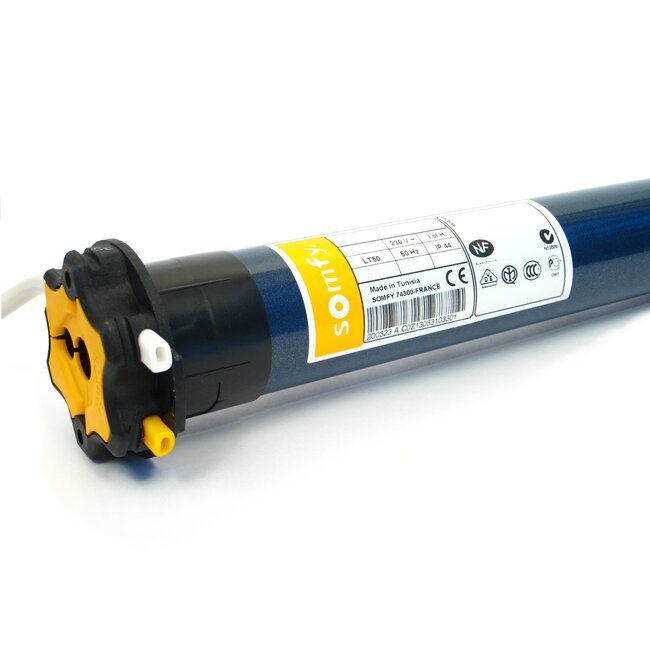

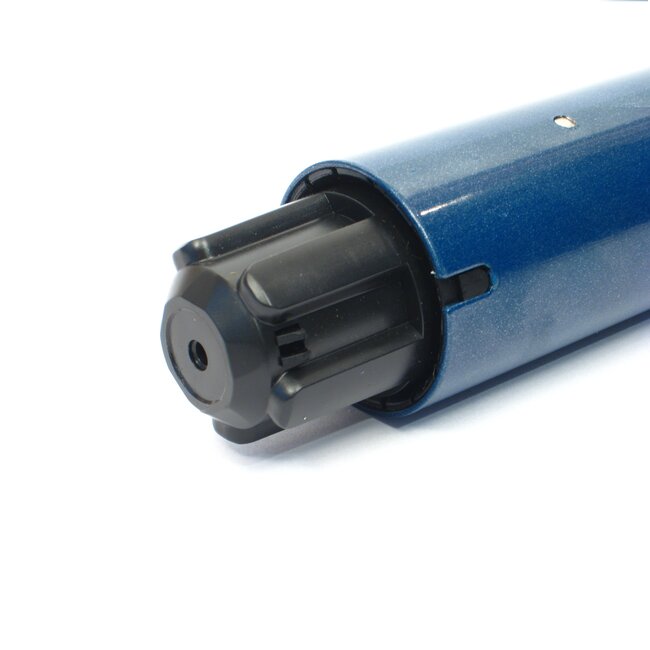

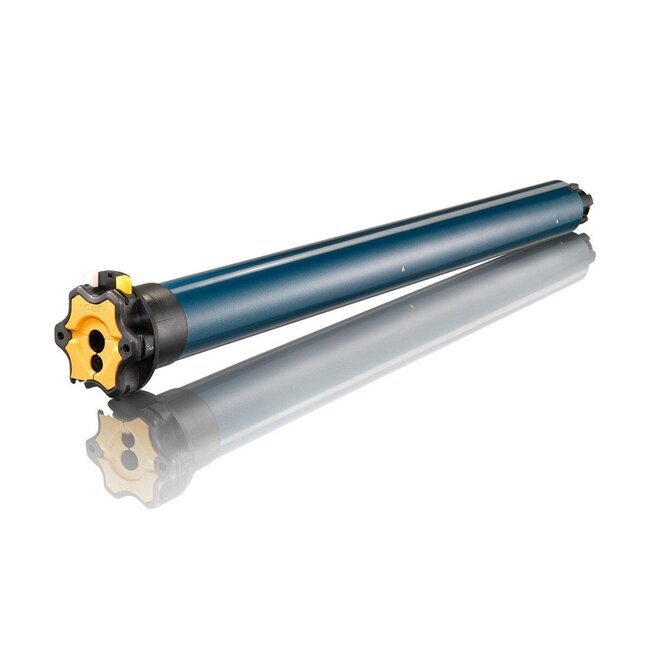

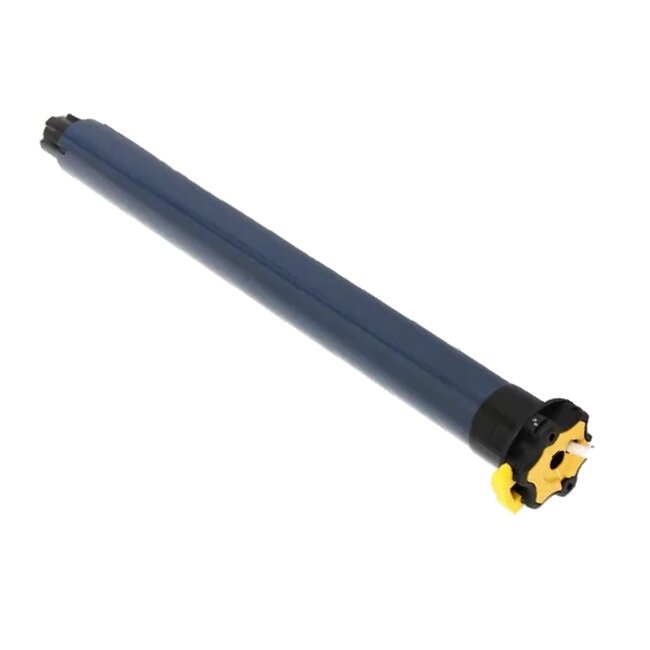

Somfy LT50 Hipro tube motors for sun blinds and shutters

- Supplied without motor bracket and adapter set
- tubular motor 230 V/50 Hz
- available with a speed of 12, 17 or 32 rpm
- available in 6 to 50 Nm
- accurate mechanical HiPro adjustment
- Somfy LT50 HiPor fits tube with a minimum inner diameter of 47 mm
- final adjustment capacity 46 revolutions
- supplied as standard with a white 4-wire (VVF) cable, length 3 metres
- applicable with all Somfy (WT) controllers
- not suitable for continuous use

Type Somfy LT50 HiPro motors
- Somfy LT50 6/17 - Ariane - 6 Nm - 17 rpm - length 513 mm
- Somfy LT50 6/32 - Ariane - 6 Nm - 32 rpm - length 533 mm
- Somfy LT50 8/12 - Ceres - 8 Nm - 12 rpm - length 513 mm
- Somfy LT50 10/12 - Jet - 10 Nm - 12 rpm - length 513 mm
- Somfy LT50 10/17 - Jet - 10 Nm - 17 rpm - length 533 mm
- Somfy LT50 10/32 - Jet - 10 Nm - 32 rpm - length 563 mm
- Somfy LT50 15/12 - Atlas - 15 Nm - 12 rpm - length 533 mm
- Somfy LT50 15/17 - Atlas - 15 Nm - 17 rpm - length 533 mm
- Somfy LT50 15/32 - Atlas - 15 Nm - 32 rpm - length 613 mm
- Somfy LT50 20/12 - Meteor - 20 Nm - 12 rpm - length 533 mm
- Somfy LT50 20/17 - Meteor - 20 Nm - 17 rpm - length 563 mm
- Somfy LT50 25/17 - Gemini - 25 Nm - 17 rpm - length 563 mm
- Somfy LT50 30/12 - Helios - 30 Nm - 12 rpm - length 563 mm
- Somfy LT50 30/17 - Helios - 30 Nm - 17 rpm - length 613 mm
- Somfy LT50 35/17 - Apollo - 35 Nm - 17 rpm - length 613 mm
- Somfy LT50 40/12 - Mariner - 40 Nm - 12 rpm - length 613 mm
- Somfy LT50 40/17 - Mariner - 40 Nm - 17 rpm - length 663 mm
- Somfy LT50 50/12 - Vectran - 50 Nm - 12 rpm - length 613 mm
