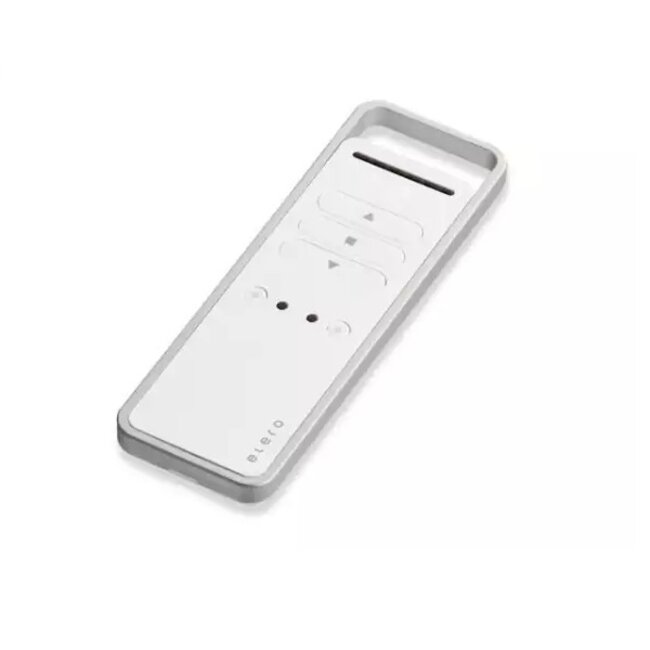

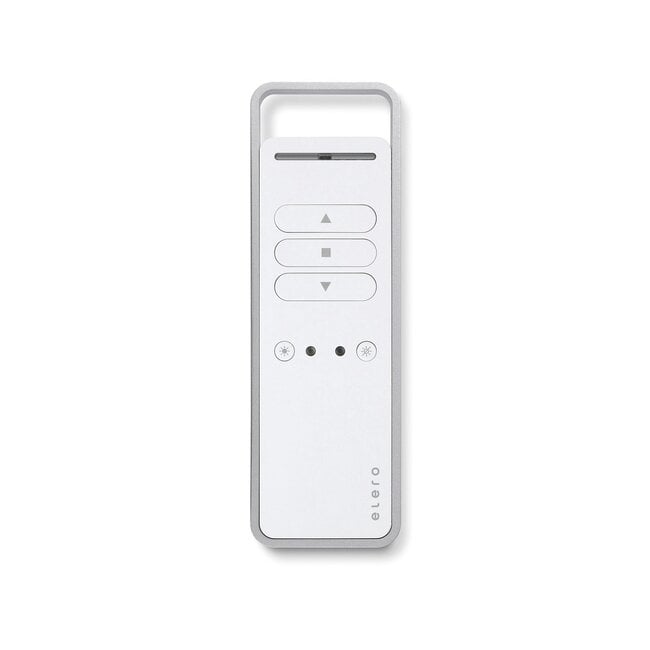

Elero LumeroCom - 1-channel bidirectional handheld transmitter

Whether roller shutters, awnings, screens or blinds - automation with Elero products allows you to operate and control your systems effortlessly. Simply by pressing a button on the Handheld transmitter. And now also with the new generation of COM handheld transmitters. These convince with their modern and clear design and an ergonomic, user-friendly structure. All COM handheld transmitters work with a bi-directional radio system. This means that signals are reliably received and processed. Thanks to a true routing function, the Elero handheld transmitter transmits these signals safely until they reach the right receiver. This 1-channel handheld transmitter allows you to control a Roller shutter or awning individually or several simultaneously as a group.

- 1-channel bidirectional transmitter
- large up-stop-down keys
- Manual/automatic control switch per channel
- white colour
- Frequency 868 MHz
- transmission power 500 mW - 10 dBm
- degree of protection IP20
- dimensions 151x49x15 mm
- weight 90 grams
- including batteries, 2 x AAA
- comes with magnetic wall mount

Download the manual of the Elero LumeroCom handheld transmitter here

Logging in an additional handheld transmitter

(up to 16 transmitters can be stored in the tube motor's memory)

Option 1, using an already functioning transmitter
1. simultaneously press - on the old transmitter - the UP, DOWN and P-buttons for min. 3 seconds
--> Motor runs up and down for 2 minutes
After the up movement has started, press the UP button
--> Motor stops and goes up again
Press the DOWN button after starting the downward movement
--> Motor stops and Transmitter is registered

Option 2, without old transmitter register new transmitter.
1. switch the mains voltage of the respective tube motor off and on again
--> the receiver in the drive is open for 5 minutes
2. Press the P button on the transmitter
--> Motor runs up and down for 2 minutes
3. after the up movement has started, press the UP button
--> Motor stops and goes up again
4. after starting the downward movement, press the DOWN button
--> Motor stops and Transmitter is registered
