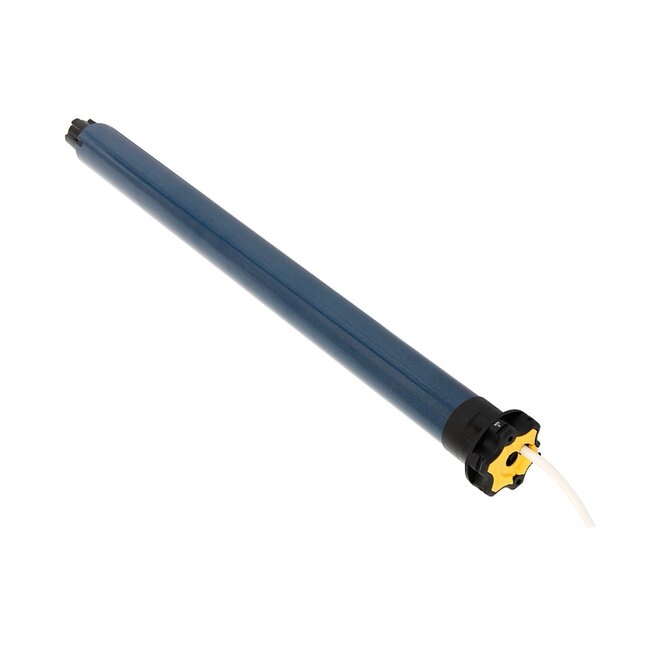

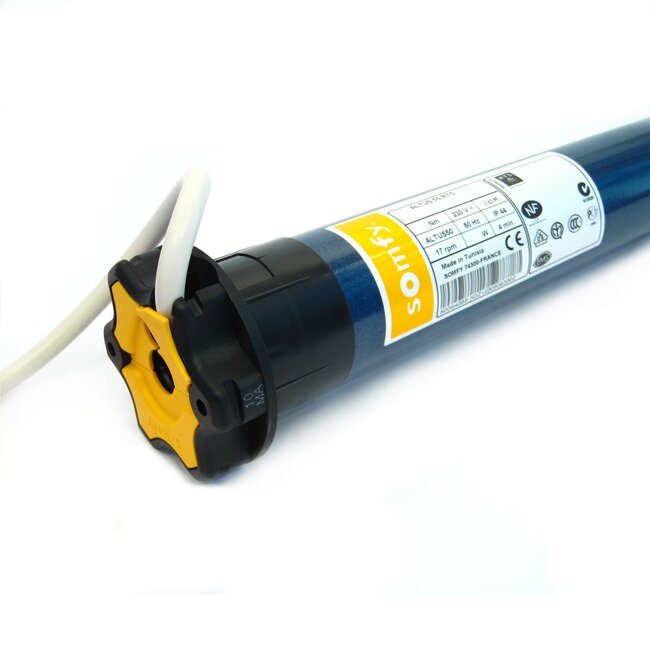

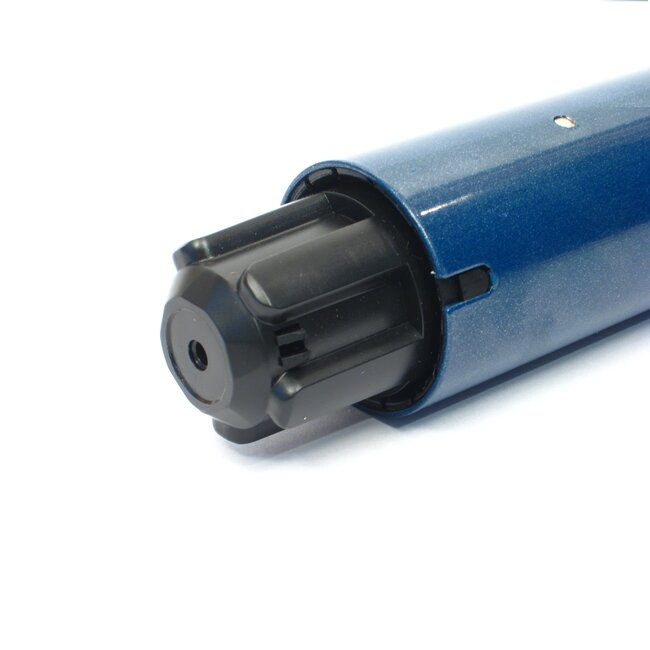

Somfy Maestria io tube motor for Screens
Universal screen motor, suitable for the following types of screens: Standard screens, fixed top and bottom position and a Windproof screen with automatic bottom lock, Half automatic adjustment
- tube motor 230 V/50 Hz, with built-in Somfy io receiver
- replacement for the Sunea screen and the Altea RTS (different transmitter protocol)
- Supplied without motor support and adapter set
- available with stronghead in 6 to 35 Nm
- available with roudhead in 6, 10 and 15 Nm

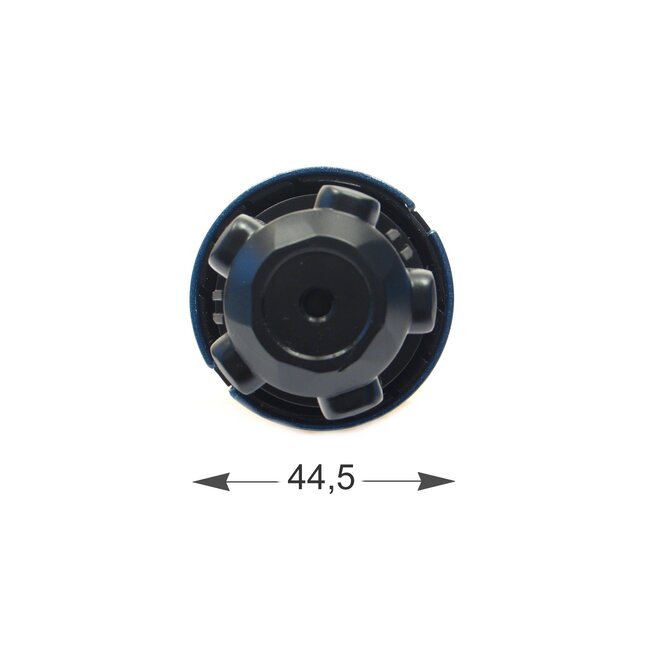

- the Somfy Maestria io fits in a tube with a minimum inner diameter of 47 mm
- speed 17 and 32 rpm
- total motor length between 613 and 683 mm
- transmission range: 20 metres through 2 concrete walls
- simple wireless adjustment using remote control or the Set&Go io.
- cannot be used with relay boxes, standard switches and standard controllers
- intermediate position is set automatically. It cannot be deleted and cannot be placed in the lower end point. The Easy Sun io transmitter is therefore not suitable for the sun function.
- possibility of combination with wireless timer (Chronis io or Nina Timer io)
- adjustable automatic intermediate position possible
- one Maestria io tubular motor can be controlled wirelessly with up to 9 local controls
(1-way) and an infinite number of group controls (2-way).
- controllable with all Somfy io controls and io controllers
- not suitable for continuous operation and in combination with free running systems (ABS)
- capacity of final adjustment, operating time limited to 3 min
- supplied as standard with a white 3-wire (VVF) cord, length 5 m. Axial and radial cord outlet
Somfy Maestria io tube motor is available in the following versions
- Maestria+ 50 io 6/17 - 6 Nm - 17 rpm - 613 mm
- Maestria+ 50 io 6/32 - 6 Nm - 32 rpm - 663 mm
- Maestria+ 50 io 10/17 - 10 Nm - 17 rpm - 663 mm
- Maestria+ 50 io 10/32 - 10 Nm - 32 rpm - 663 mm
- Maestria+ 50 io 15/17 - 15 Nm - 17 rpm - 663 mm
- Maestria+ 50 io 15/32 - 15 Nm - 32 rpm - 683 mm
- Maestria+ 50 io 25/17 - 25 Nm - 17 rpm - 663 mm
- Maestria+ 50 io 35/17 - 35 Nm - 17 rpm - 683 mm
- Maestria+ 50 io RH 6/32 - 6 Nm - 17 rpm - 660 mm
- Maestria+ 50 io RH 10/17 - 10 Nm - 17 rpm - 660 mm
- Maestria+ 50 io RH 10/32 - 10 Nm - 32 rpm - 660 mm
- Maestria+ 50 io RH 15/17 - 15 Nm - 17 rpm - 660 mm
- Maestria+ 50 io RH 15/32 - 15 Nm - 32 rpm - 660 mm
io-homecontrol® - the intelligent solution for maximum home comfort
io-homecontrol® controls the entire house, i.e. not only Roller shutters, blinds and garage doors but also the front door, skylights, windows, heating, lighting and ventilation. The 2-way radio technology informs the user, is operationally reliable and becomes the new standard on the market.
Somfy io-homecontrol® tubular motors
These motors have all the advantages of existing RTS motors + the benefits offered by io-homecontrol. An extensive range of motors will be available in 2017. These motors can be controlled by any io-homecontrol® 1-way or 2-way control. We recommend programming a local control (1-way) per motor. On the 2-way remote controls or in the app, the consumer receives feedback on whether the requested command was executed or other information that makes it easy for him to understand the operation.
Frequency and safety
2-way io-homecontrol® products can communicate on 3 different frequencies between 868 and 870 MHz. If the frequency used is not free, it is automatically switched to another frequency. The 1-way products only communicate on the 868 MHz frequency. Power failure does not affect stored data.
Flexibility
The 1-way remote controls are designed to control one Motor. The 2-way controls are group or central controls where the consumer receives feedback via an LED, via pictograms, via text or via sound. Sun and wind sensors operate the products automatically. Automatic operation can be easily blocked using the Smoove 1 A/M io, a Situo 5 VAR A/M io or in the app.
