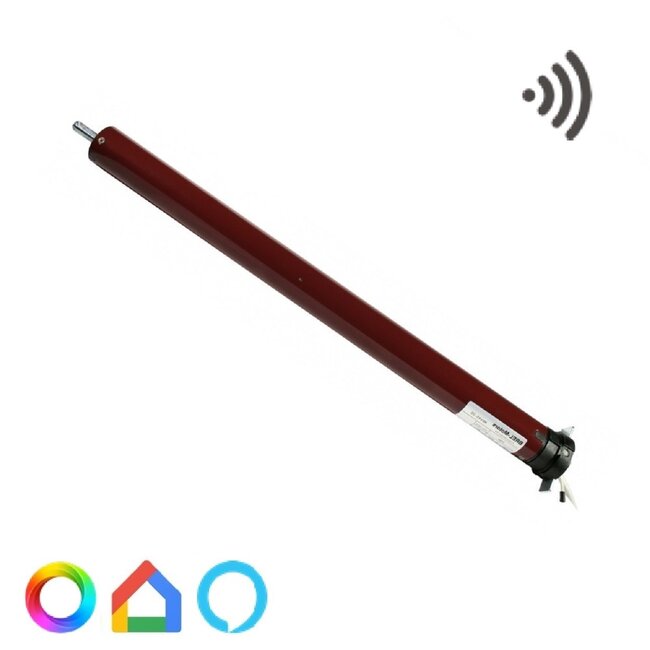

Brel 35 mm silent remote-controlled tube motor for roller shutters and blinds

The Brel roller shutter motor is available with a force of 10 and 13 Nm. You easily operate your roller shutters remotely with the tube motor. This roller shutter motor is suitable for roller shutters with a 40 mm Axle/Shaft, one of the most common sizes.

- Supplied without motor support and adapter set
- tube motor is extra quiet (54 dB)
- roller shutter motor with mechanical end adjustment
- tube motor is fitted with an integrated receiver
- programmable OP, STOP and DOWN separated and OP-STOP-REVER as impulse
- length of roller shutter motor 596 mm
- tubular motor has a diameter of Ø 35 mm
- suitable for Roller shutters with an Axle/Shaft of at least 40 mm
- available in 10 Nm with 17 rpm and 13 Nm with 14 rpm
- power supply 230 Volt

------------

All Brel motors with an integrated receiver can be controlled with the following Apps, from anywhere in the world (as long as you are connected...).

- Brel Home
Since 2019, Brel has had its own app, the Brel Home. This is specially geared to Brel
motorisation and also prepared for two-way communication. The app can also be linked
to voice control from Amazon Alexa or Google Home.

- Lite Smartsware Controller
All you need for this is the Lite plug. This connects
to your router and you're good to go.
It allows you to control all your Brel radio motors and also turn on timers.

- HomeWizard
For this, you need the HomeWizard box. The App then offers the opportunity to
programming scenarios, deploying actions depending on Sensor input.
So if it gets warmer than 20 degrees inside, during the day the Roller shutters
down etc.

- Homey Athom
The magic orb. Responds to any verbal command. Combines various apps.
For example, when rainfall radar indicates that it will rain in your area,
then the sunshade goes inside.

You can find the apps for the above controls in the App store or the Google Play store.
