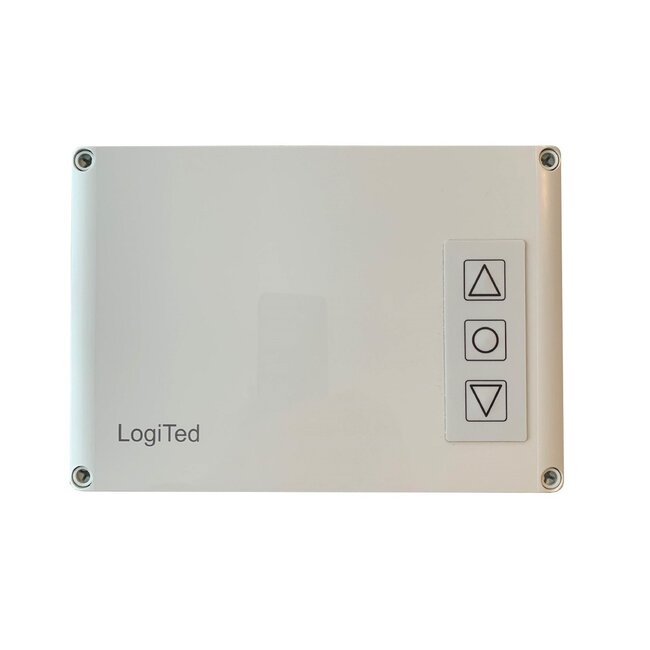

Rolling shutter controller MO710AZFN

- 3-channel membrane keypad on housing cover
- with service display ZS7 in 4 languages for easy commissioning and status display
- For 230 V drives up to max. 1.8 kW
- Direct or indirect limit switch method or runtime method
- Dead man, self-locking and automatic operation
- Emergency operation in case of failure of a safety device
- Integrated photocell monitoring and evaluation for OPEN and CLOSE up to 6 photocell pairs each
- Integrated evaluation of two 8.2 kΩ safety switch strips/circuits or for two optoelectronic safety switch strips/circuits
- Automatic start-up and photocell closure
- Light and warning light or red-green stoplight function
- Plug-in lock for radio receiver
- Housing dimensions (W x H x D) 250 x 175 x 75 mm
