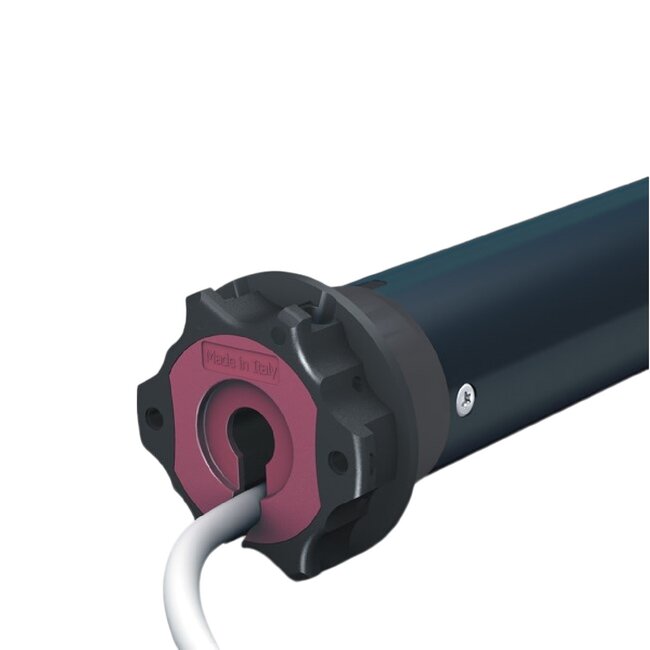

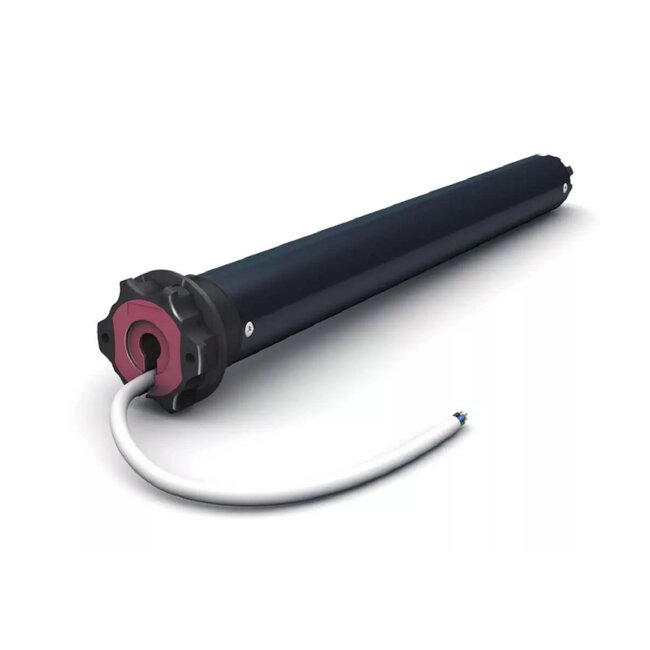

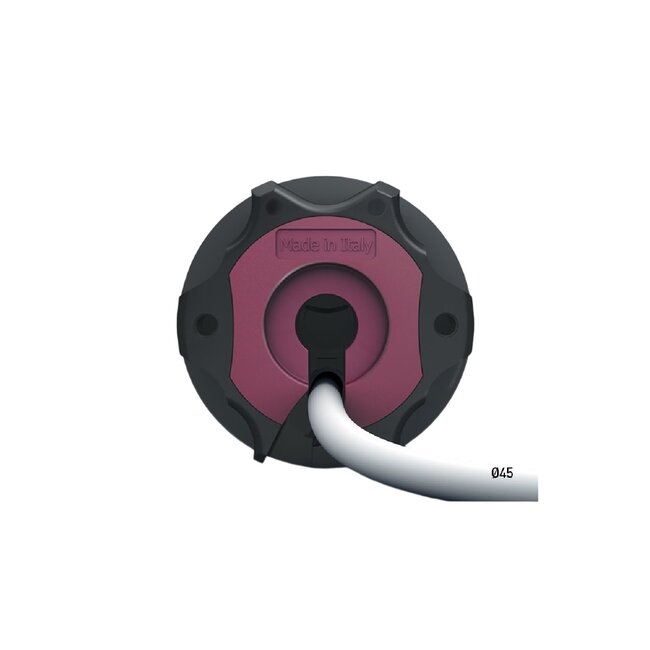

Churubini Modo RX Ø 45 tubular motor

Roller shutter tube motor with electronic limit switch and integrated receiver, which can be controlled by an optional Switch or Remote control. Adjusting the limit switches is simple and intuitive using the Remote control. Thanks to the encoder technology, the set position is maintained with maximum accuracy and reliability.

Safety and user-friendliness are ensured by the "Rolling Code" coding system of the remote controls. Programming and operation are simple; the Motor provides confirmation of each step through small movements.

Specific functions include protection against freezing and obstacle detection in both directions, with the possibility of setting the sensitivity to three levels. There is also the option of storing an intermediate position.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz

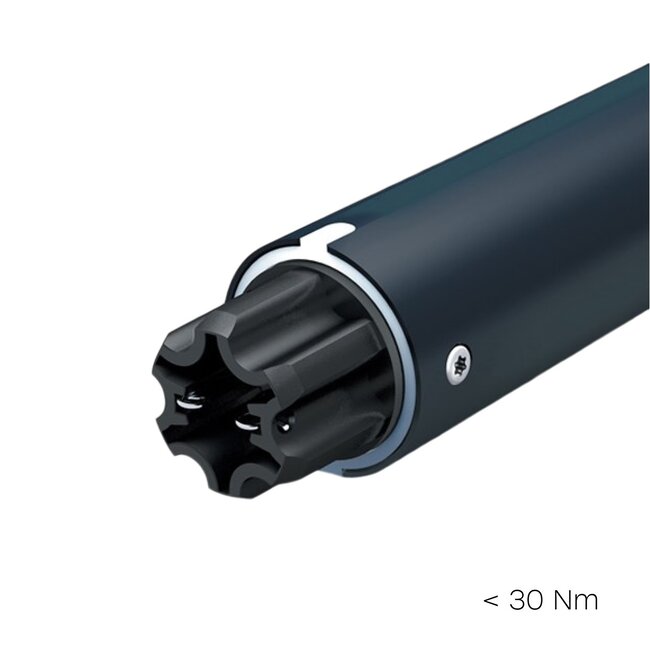

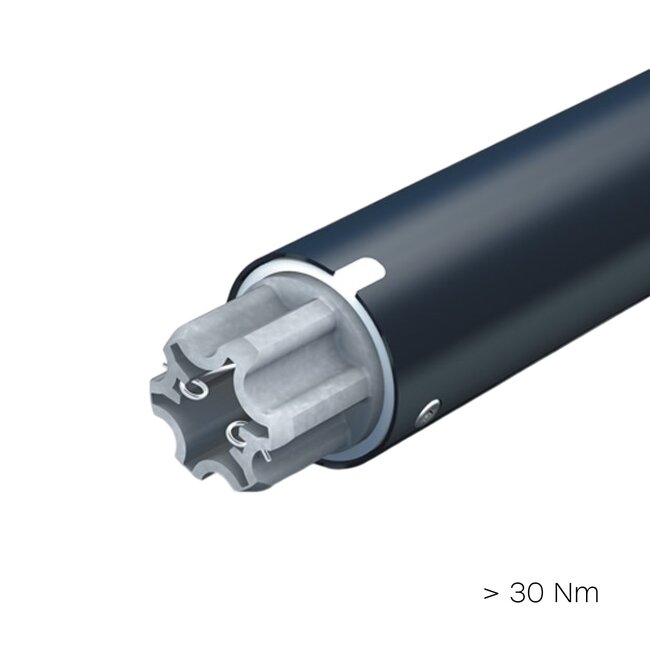

- in the forces 10 to 40 Nm with a speed of 17 rpm
- the 50 Nm motor has a speed of 12 rpm
- specifically for roller shutters
- motor is equipped with frost protection
- integrated hindrance detection when rigid connections are used
- the Handheld transmitter is easy to program
- precise electronic adjustment of the end positions
- Motor can be switched in parallel
- fits in tubes with a minimum inner diameter of 50 mm

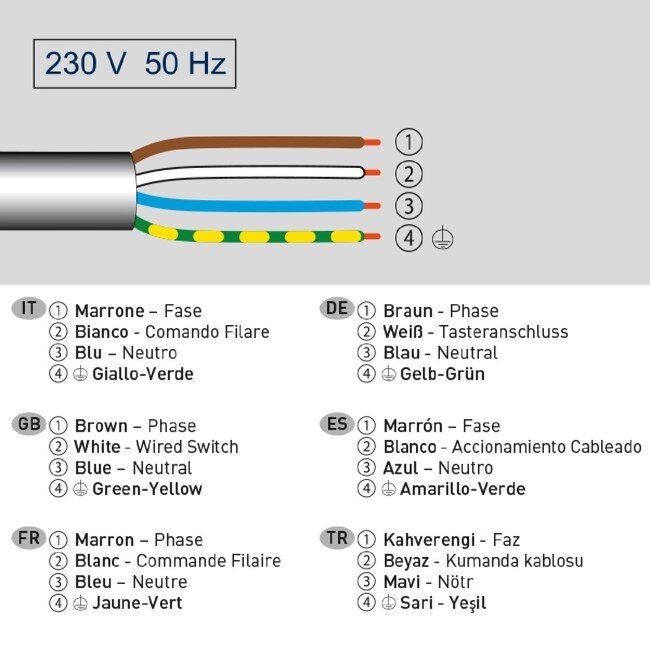

- supplied as standard with 4-wire white cable, length 2.5 metres
- not suitable for continuous use

Type Cherubini Modo RX Ø 45 tubular motors

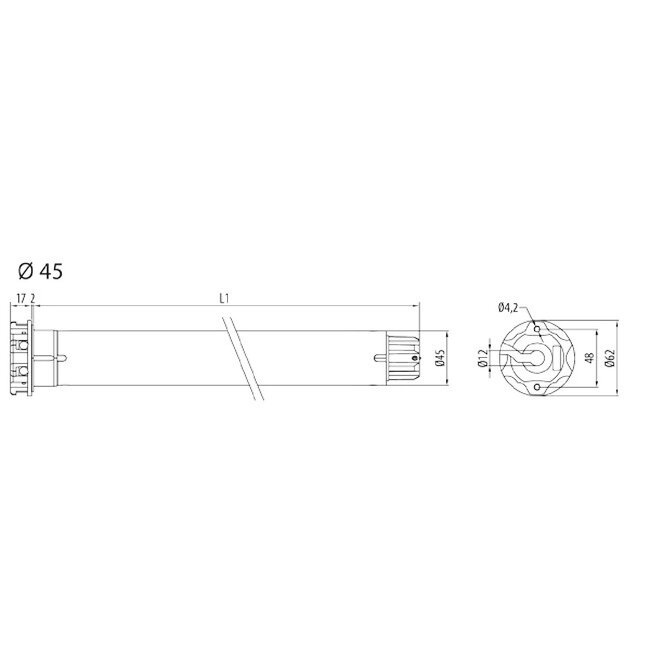

- Modo RX Ø 45 10/17 - 10 Nm - 17 rpm - 135 Watt - length 546 mm
- Modo RX Ø 45 20/17 - 20 Nm - 17 rpm - 195 Watt - length 546 mm
- Modo RX Ø 45 30/17 - 30 Nm - 17 rpm - 250 Watt - length 586 mm
- Modo RX Ø 45 40/17 - 40 Nm - 17 rpm - 275 Watt - length 586 mm
- Modo RX Ø 45 50/12 - 50 Nm - 12 rpm - 275 Watt - length 586 mm

download the Cherubini Modo RX tubular motor manual here

Important notes
If you are using this Motor to replace a defective Altron tube motor, you should also order the correct adapter set with it. Also, the old Altron handheld transmitter will not work on this tube motor.
