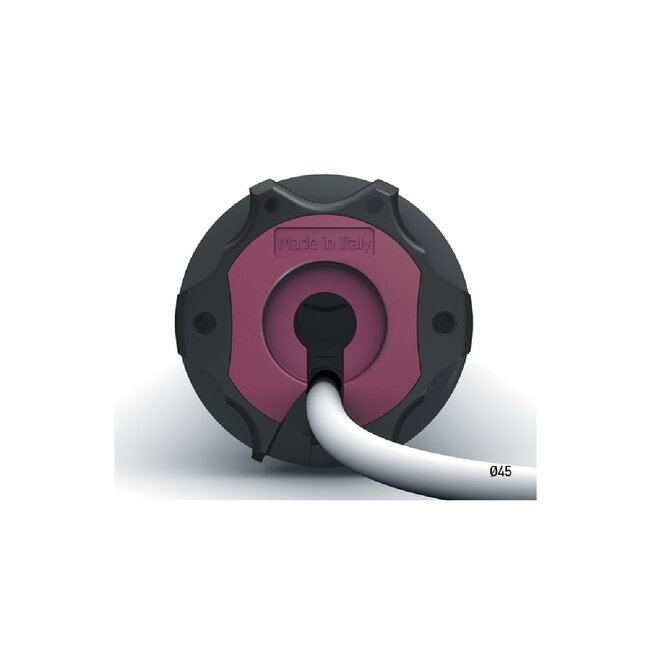

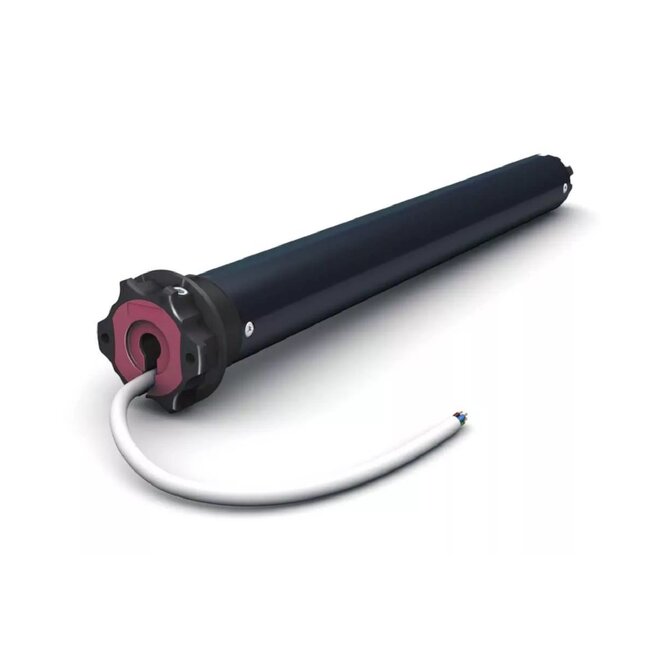

Cherubini Movi Ø 45 tubular motor

Designed with a mechanical end adjustment, this Cherubini Movi Ø 45 tubular motor is suitable for Axle/Shafts with a diameter of 50 mm or larger. Different force options are available, ranging from 10 to 40 Nm at 17 rpm, and a force of 50 Nm at 12 rpm. It is important to note that these motors cannot be switched in parallel without the use of relays. A notable feature of these tubular motors is the simple and reliable final adjustment, which can be adjusted using adjustment screws on the motor head. However, it is essential to note that these motors do not have an obstacle detection function. These tube motors are particularly suitable for use in Roller shutters, blinds and Screens, where they offer an ideal solution for automating these applications.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- in powers from 10 to 40 Nm with a speed of 17 rpm
- the 50 Nm motor is called a speed of 12 rpm

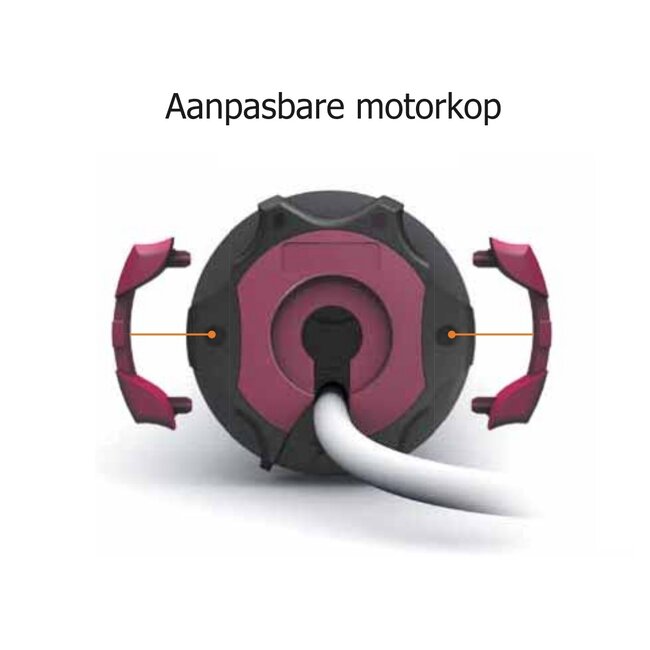

- adaptable motor head
- for standard Cherubini, Faac o Altron motor support
- when removing inserts suitable for Somfy support
- suitable for roller shutters, awnings and screens
- simple and precise adjustment of the end positions
- motors cannot be connected in parallel
- suitable for tube with minimum inner diameter of 50 mm
- capacity of the end position adjustment 25 revolutions

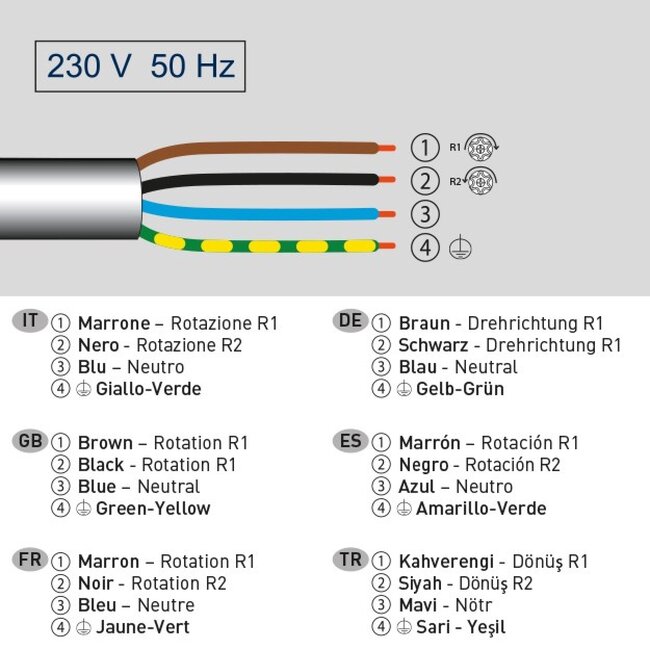

- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Cherubini Roll Ø 45 tubular motors
- Roll Ø 45 10/17 - 10 Nm - 17 rpm - length 496 mm
- Roll Ø 45 15/17 - 15 Nm - 17 rpm - length 546 mm
- Roll Ø 45 25/17 - 25 Nm - 17 rpm - length 546 mm
- Roll Ø 45 30/17 - 30 Nm - 17 rpm - length 546 mm
- Roll Ø 45 40/17 - 40 Nm - 17 rpm - length 546 mm
- Roll Ø 45 50/12 - 50 Nm - 12 rpm - length 546 mm

Important notes
This tubular motor is interchangeable one-to-one with the Faac TM2 45 tubular motor
If you use this motor to replace a defective Altron tube motor, you should also order the correct adapter set.
