Nice Next Solar Kit tube motor set

With the Nice Next Solar Kit you have a complete set to convert your manually operated roller shutter with an 8-angular 60 mm Axle/Shaft to a solar-powered tube motor that can be operated by remote control.

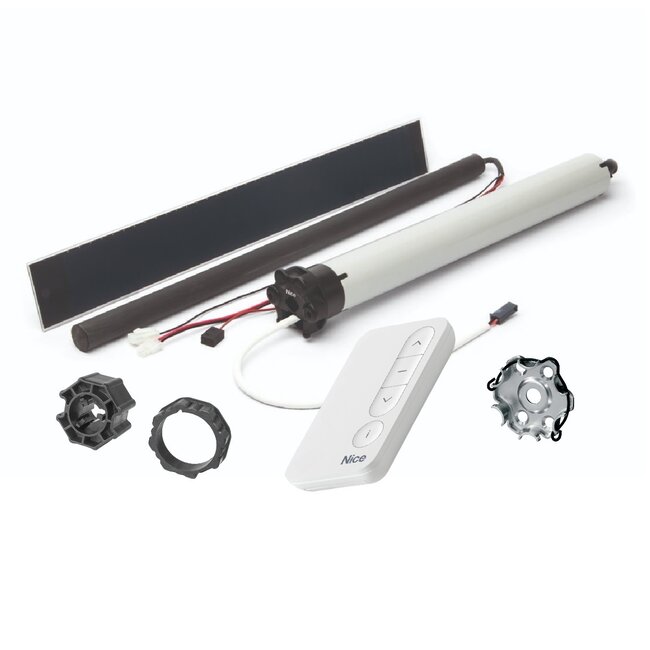

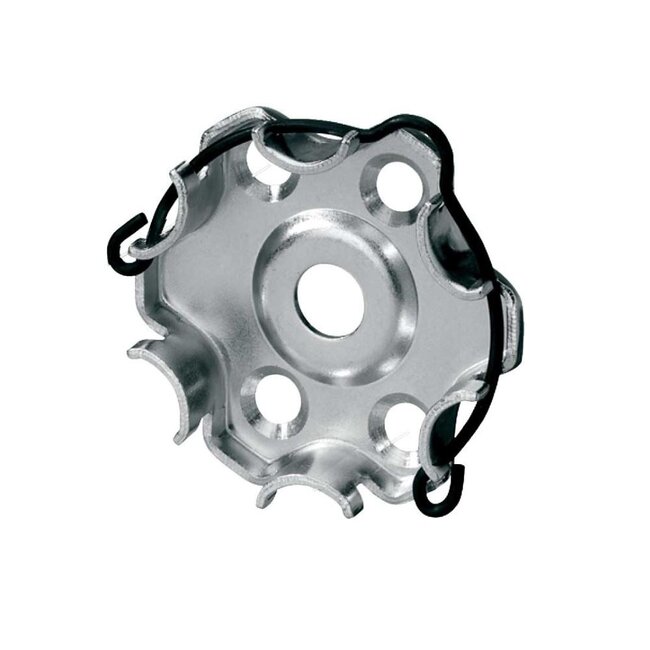

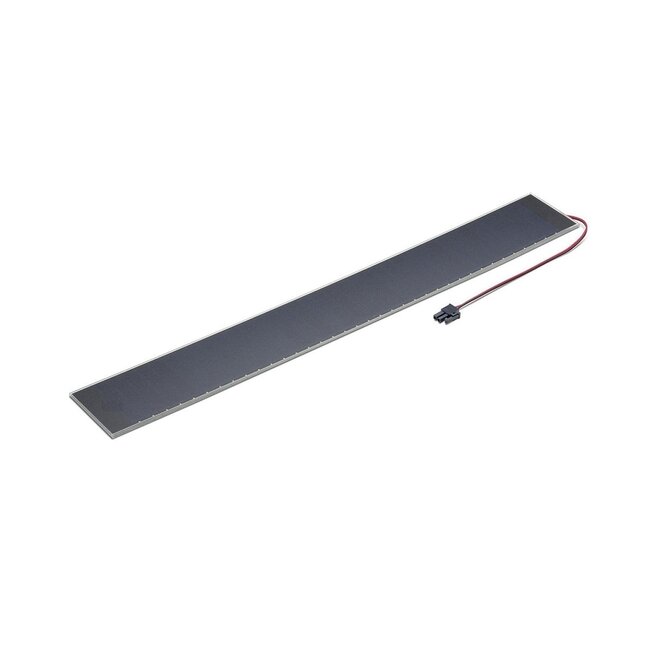

- including tubular motor, adapter set 8-side 60, motor support, solar panel, batteries and transmitter

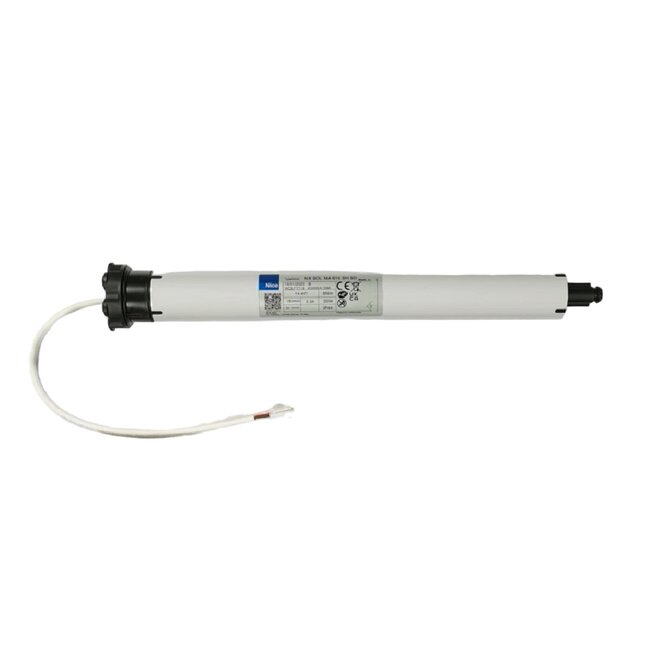

- tubular motor 12 Volt DC
- speed depends on force
- available in 6, 10 and 20 Nm

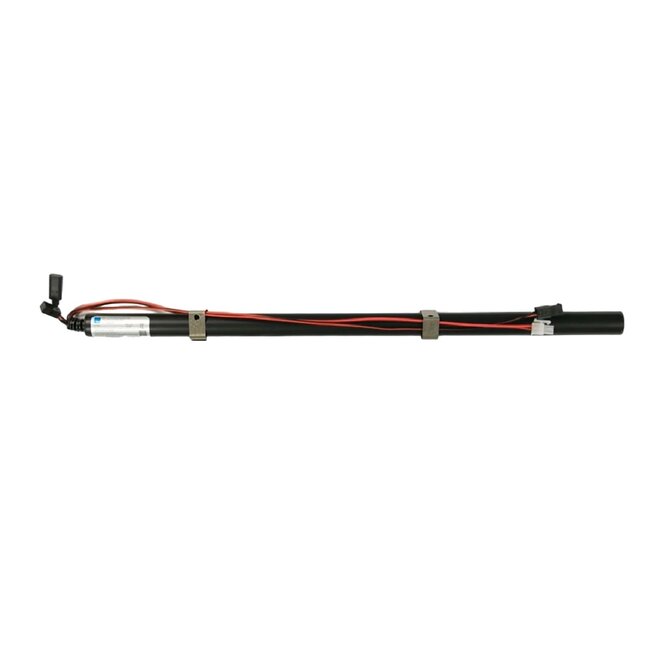

- length of battery is ± 550 mm
- battery has USB-C connection for recharging

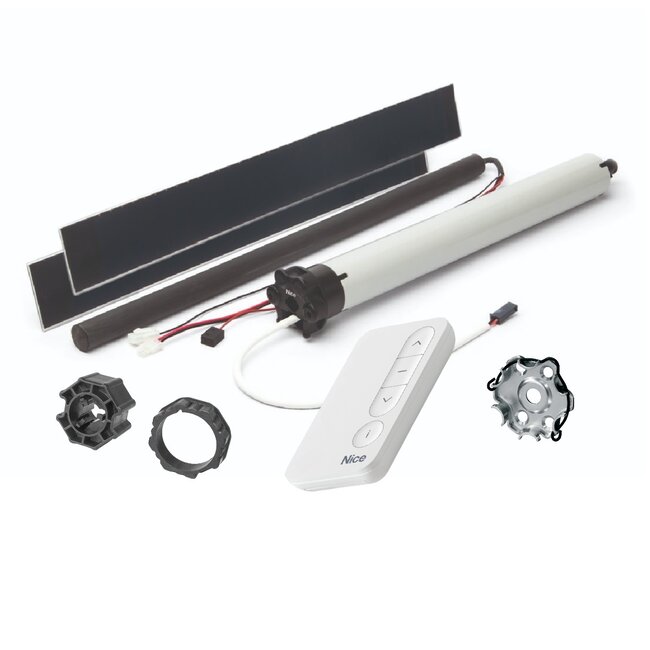

- the 20 Nm set includes two solar panels
- limit switch range 40 rpm
- protection class IP44
- operating environment temperature -20 to +60 (°C)

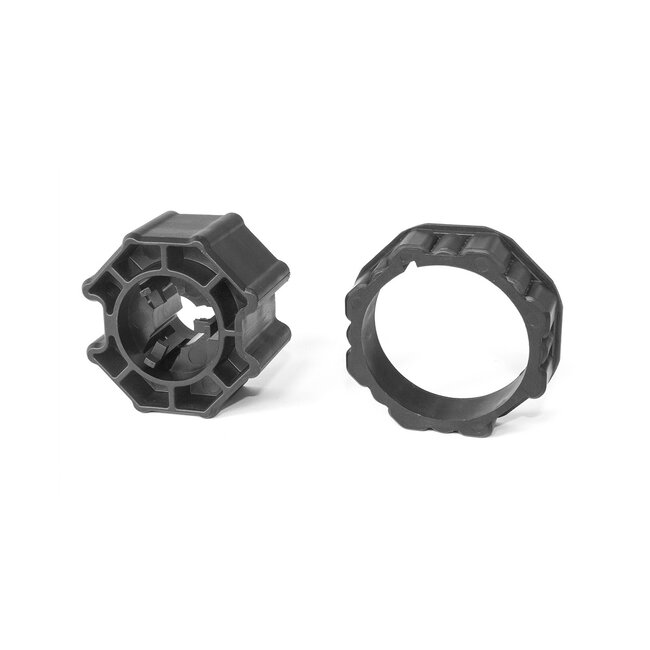

- set 8-sided 60 Axle/Shaft, but can also be used for screens with other adapter set
- electronic limit switch with soft switch-off
- integrated bi directional receiver
- end positions can be set via the Handheld transmitter
- intelligent force measurement
- low-noise soft brake
- not suitable for continuous operation

- NIce Next Solar kit 6/15 - 6 Nm - 15 rpm - 35 Watt - length 440 mm
- NIce Next Solar kit 6/15 - 6 Nm - 15 rpm - 40 Watt - length 440 mm
- NIce Next Solar kit 6/15 - 6 Nm - 15 rpm - 60 Watt - length 440 mm
