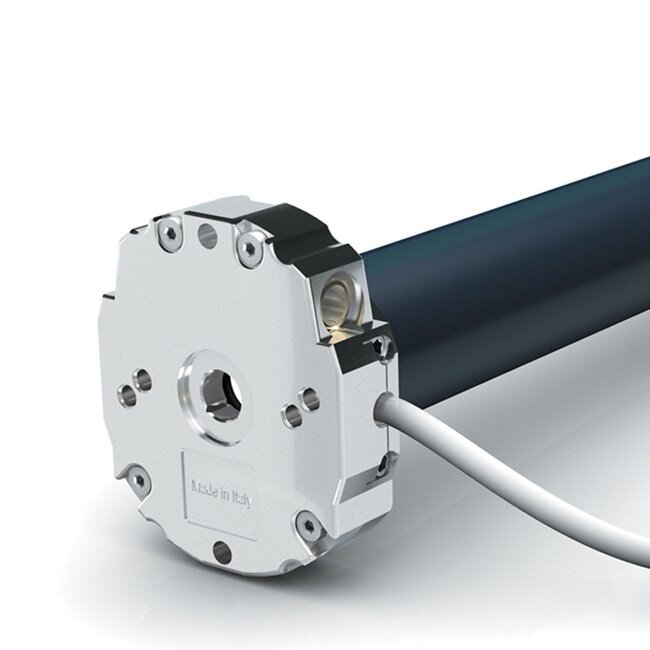

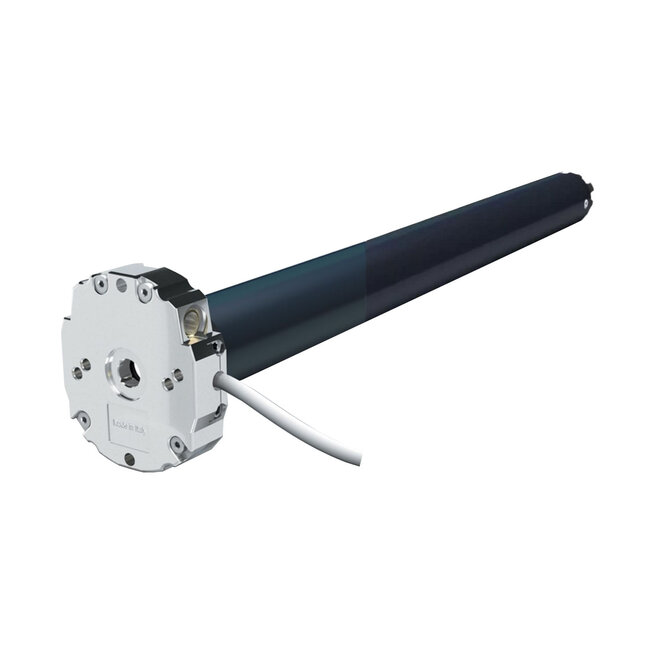

Cherubini Ocean Ø 45 mm tubular motor with mechanical end adjustment for driving roller shutters and blinds Read more.
Motor with mechanical end adjustment and emergency hand control. Suitable for shaft diameters from 50 mm. Available with forces from 15 to 50 Nm with the speed depends on the force of the motor, see table below. Maximum number of revolutions of the Motor is 32. The Motor is equipped with a mechanical end position and an integrated emergency hand control. Motor does not lose its end positions when manual control is used. Without relay, the Motor cannot be switched in parallel. No obstacle detection. Ideal for roller shutters, awnings and roller gates.
- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available in 15 to 50 Nm

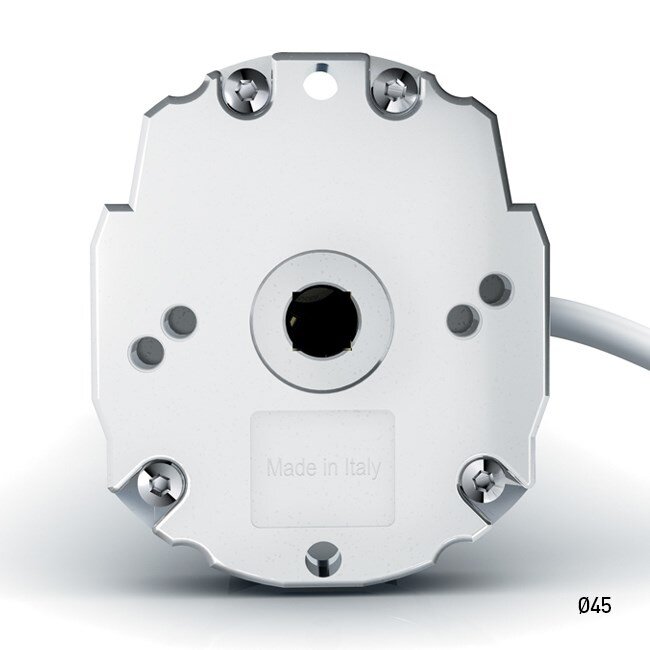

- direct mounting of the metal motor head possible, without special motor support
- suitable for roller shutters, roller gates and awnings
- simple and precise adjustment of the end positions
- motors cannot be connected in parallel
- suitable for emergency hand lever square 6 mm or hexagon 7 mm
- adjustment screws mechanically adjustable from both sides
- delay ratio emergency hand lever 1:24

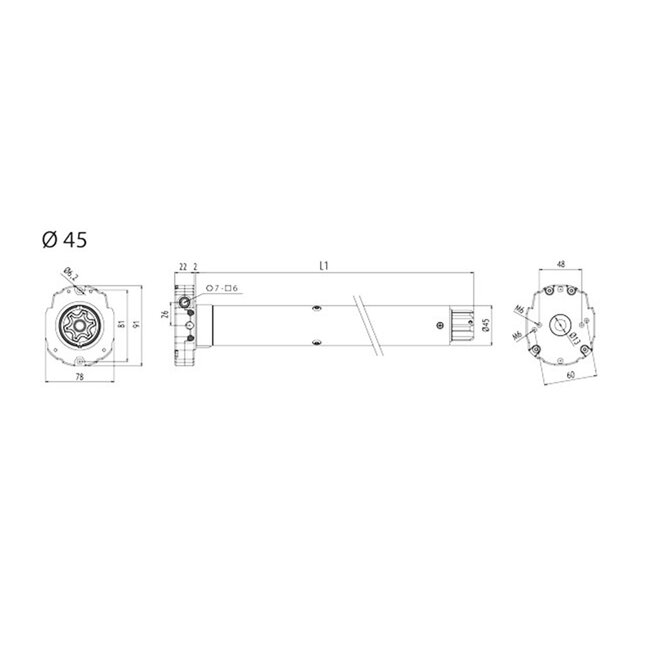

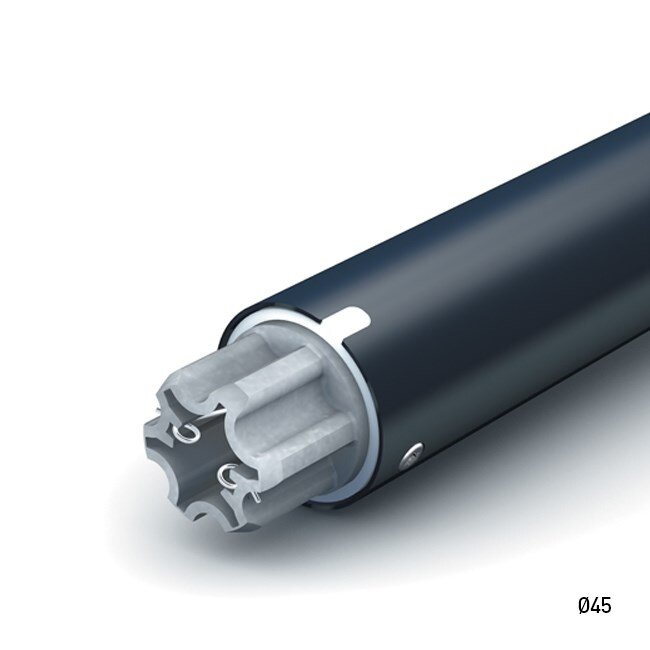

- the Cherubini Ocean 45 mm fits tube with a minimum inside diameter of 50 mm
- final adjustment capacity 25 revolutions

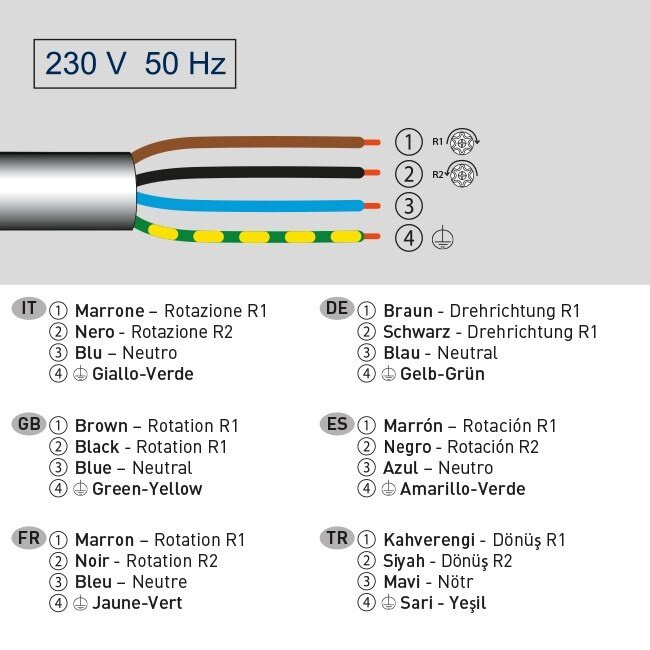

- white cable, length 2.5 metres, supplied as standard
- not suitable for continuous use
Type Cherubini Ocean Ø 45 tube motors
- Cherubini Ocean 15/17 - 15 Nm - 17 rpm - 170 Watt - length 646 mm
- Cherubini Ocean 25/17 - 25 Nm - 17 rpm - 225 Watt - length 646 mm
- Cherubini Ocean 32/17 - 32 Nm - 17 rpm - 250 Watt - length 646 mm
- Cherubini Ocean 40/17 - 40 Nm - 17 rpm - 275 Watt - length 646 mm
- Cherubini Ocean 50/12 - 50 Nm - 12 rpm - 275 Watt - length 646 mm
Important notes
This tubular motor is interchangeable one-to-one with the Faac TM2 45 M tubular motor
If you are using this motor to replace a defective Altron tubular motor, you should also order the correct adapter set.
