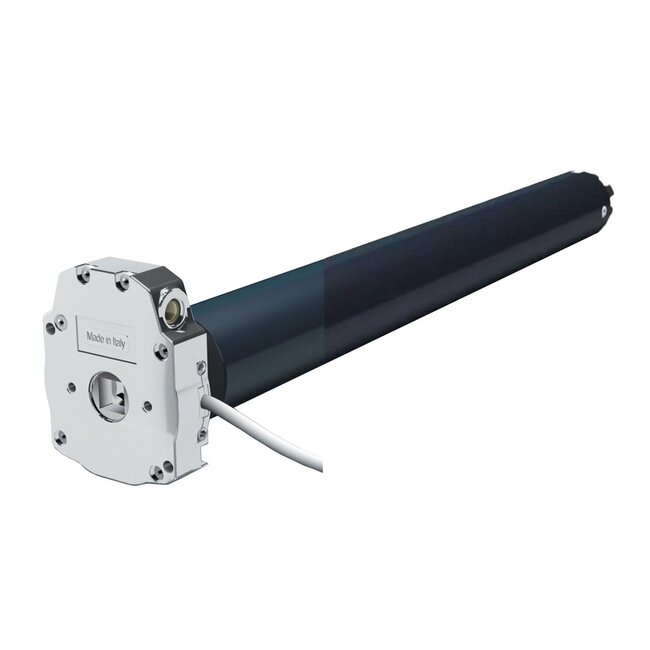

Cherubini Ocean Ø 58 tubular motor with emergency hand control

Tubular motor with mechanical end adjustment and emergency hand control. Suitable for shaft diameters from 70 mm. Available with forces 85, 100 and 120 Nm force, the speed depends on the force of the motor, see table below. Simple and reliable final adjustments, adjustable by adjustment screws on the motor head. Maximum number of revolutions of the Motor is 29. Motor is equipped with mechanical end positions and an integrated emergency hand control. The Motor does not lose its end positions when manual control is used. The Motor offers various mounting possibilities, as the cranks can be mounted on both sides using control shafts. Motor cannot be switched in parallel, without relay. No obstacle detection. Ideal for roller shutters, roller gates and blinds.

- Motor support and adapter set not included.
- tubular motor 230 V/50 Hz
- emergency hand control
- fixing eye 6 mm square or 7 mm hexagonal
- available with a speed of 11 and 17 rpm
- available in 85, 100 and 120 Nm

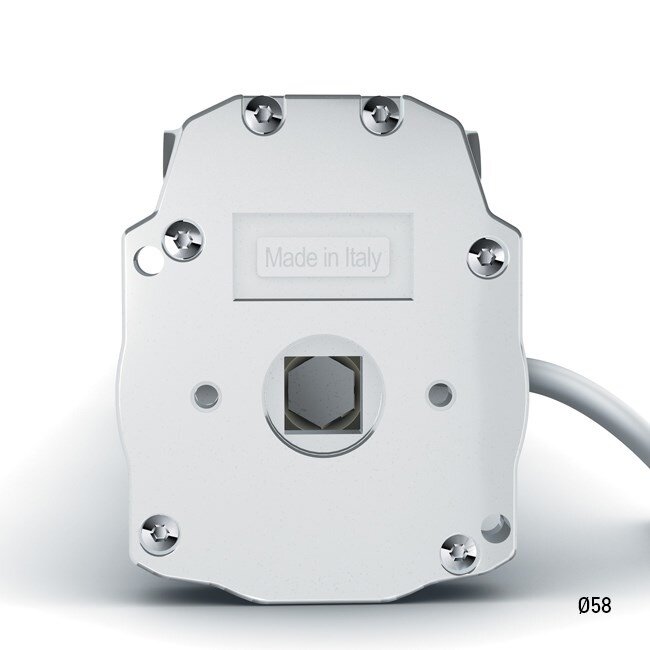

- direct fixing of the metal motor head possible, without special motor support
- suitable for roller shutters and awnings
- simple and precise adjustment of the end positions
- motors cannot be connected in parallel
- delay ratio emergency hand control 1:55

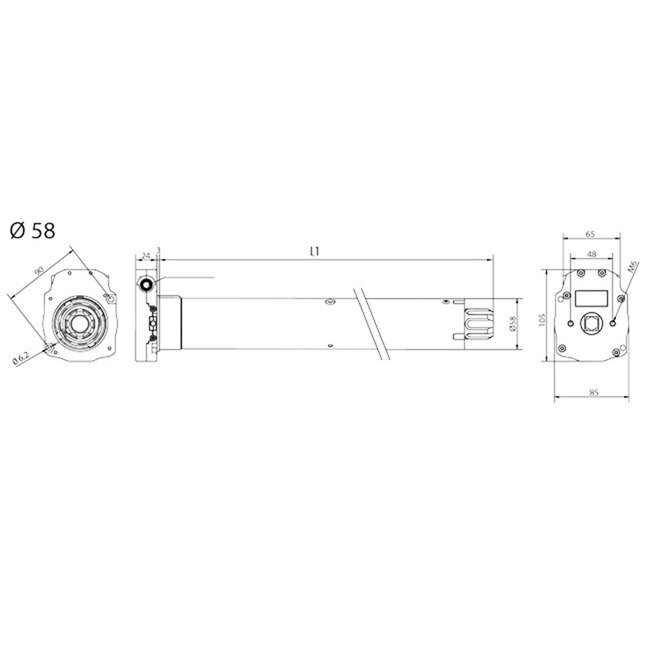

- Motor fits into pipe with a minimum inner diameter of 70 mm
- final adjustment capacity of 29 revolutions

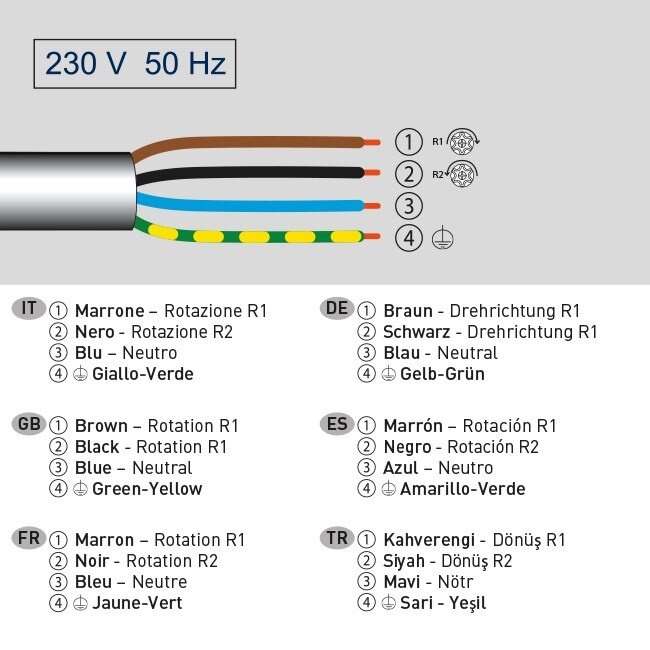

- white cable, length 2.5 metres, supplied as standard
- not suitable for continuous use

Type Cherubini Ocean Ø 58 tube motors
- Cherubini Ocean 85/17 - 85 Nm - 17 rpm - 375 Watt - length 703 mm
- Cherubini Ocean 100/17 - 100 Nm - 17 rpm - 360 Watt - length 703 mm
- Cherubini Ocean 120/11 - 120 Nm - 11 rpm - 415 Watt - length 703 mm
