The Somfy Orea RTS motor for cassette awnings

The Somfy Orea RTS tubular motor is a discontinued article, not all powers are available anymore, as an alternative to this specific tubular motor for sun blinds you can order the Somfy Sunea io, keep in mind that with this Somfy io tubular motor you also need another Handheld transmitter.

- Motor support and adapter set are not included.
- power supply 230 volts
- tube motor is equipped with an integrated RTS receiver
- reception range approximately 20 metres through 2 concrete walls
- perfect closure of the awning thanks to fabric stretch compensation
- fast and simple adjustment and operation with Somfy RTS transmitter such as Situo RTS
- adjustable automatic intermediate position possible
- cannot be used with relay boxes, standard switches and standard controllers
- fits in a tube with a minimum inner diameter of 47 mm
- supplied as standard with a white 3-wire (VVF) cable, length 5 m. Axial and radial cable outlet.
- not suitable for continuous use and in combination with free-wheel systems (ABS)
- can be operated with up to 12 Somfy RTS transmitters and up to 3 RTS sensors
- final adjustment capacity 250 revolutions, operating time limited to 4 min.
- automatic corrections to the set upper end position, based on mechanical stops (e.g. on the front strip of the cassette)

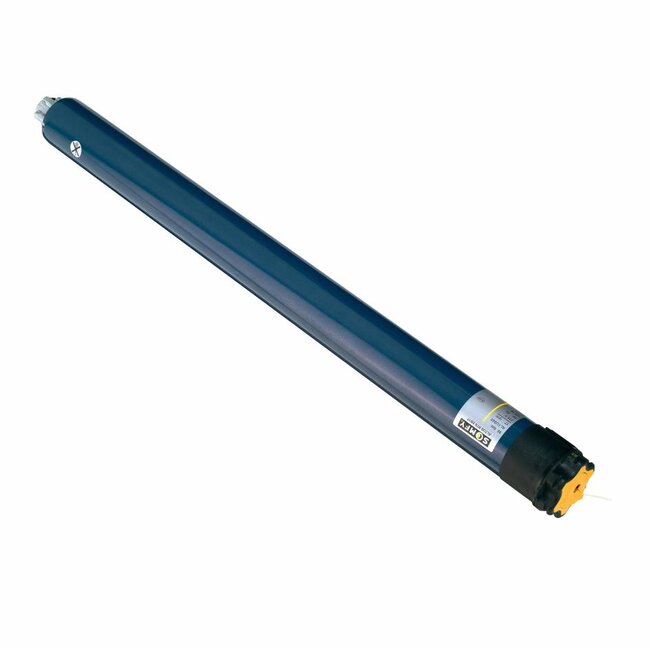

Somfy Orea 50 RTS awning motor is available in the following versions
- Somfy Orea 50 RTS 6/17 - 6 Nm - 17 rpm - length 605 mm
- Somfy Orea 50 RTS 10/17 - 10 Nm - 17 rpm - length 655 mm
- Somfy Orea 50 RTS 15/17 - 15 Nm - 17 rpm - length 655 mm
- Somfy Orea 50 RTS 20/17 - 20 Nm - 17 rpm - length 655 mm
- Somfy Orea 50 RTS 25/17 - 25 Nm - 17 rpm - length 655 mm
- Somfy Orea 50 RTS 30/17 - 30 Nm - 17 rpm - length 675 mm
- Somfy Orea 50 RTS 35/17 - 35 Nm - 17 rpm - length 675 mm
- Somfy Orea 50 RTS 40/17 - 40 Nm - 17 rpm - length 745 mm
- Somfy Orea 50 RTS 50/12 - 50 Nm - 12 rpm - length 675 mm
