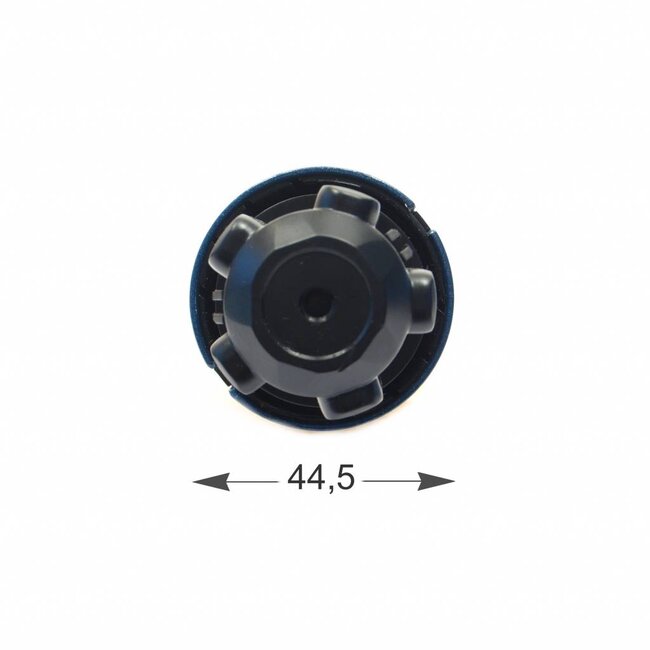

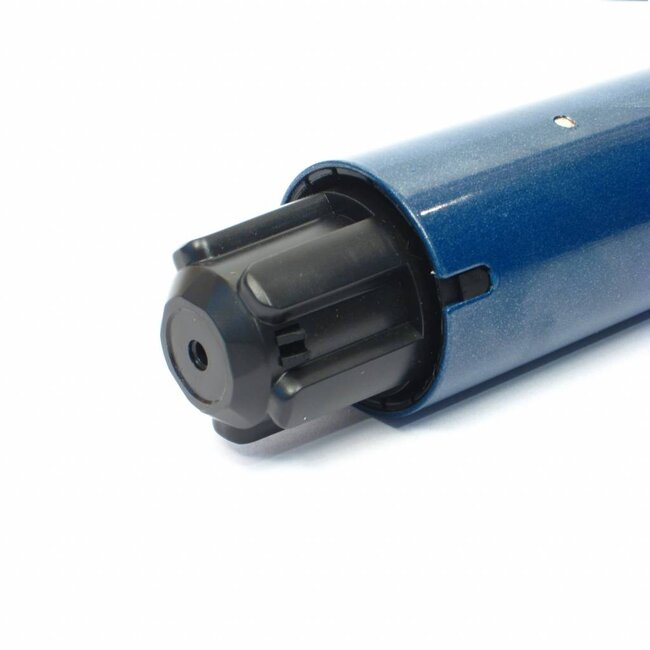

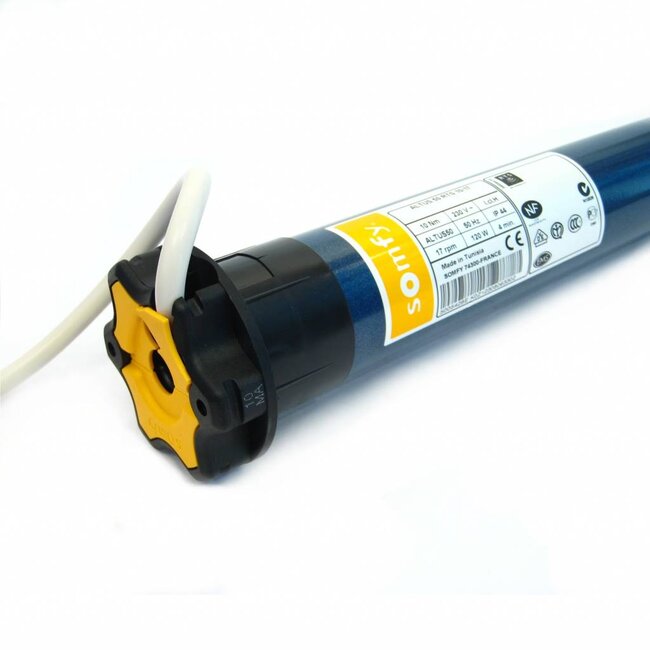

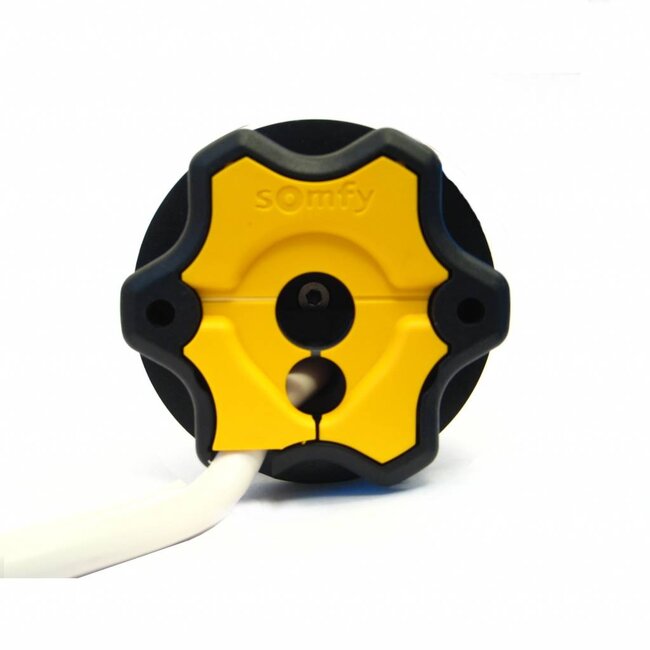

Somfy Orea 50 WT tubular motor for cassette awnings

Somfy Orea 50 WT tubular motor with 12 or 17 rpm, a tubular motor for perfect awning closure (fabric stretch compensation) with torque reduction and immediate power interruption.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available in 6 Nm to 50 Nm
- speeds of 12 and 17 rpm
- a Somfy adjustment cable is required for adjustment
- adjustment without access to the motor head
- applicable with all Somfy controllers
- equipped with fabric stretch compensation
- parallel connection of several motors possible
- minimum inside diameter of 47 mm
- final adjustment capacity: 250 revolutions
- running time limited to 4 minutes
- supplied as standard with a white 4-wire (VVF) cable, length 3 m
- axial and radial cable outlet
- not suitable for continuous use and not in combination with free-wheel systems (ABS)

Somfy Orea 50 WT is available in the following versions
- Orea 50 WT 6/17 - 6 Nm - 17 rpm - length 613 mm
- Orea 50 WT 10/17 - 10 Nm - 17 rpm - length 663 mm
- Orea 50 WT 15/17 - 15 Nm - 17 rpm - length 663 mm
- Orea 50 WT 20/17 - 20 Nm - 17 rpm - length 663 mm
- Orea 50 WT 25/17 - 25 Nm - 17 rpm - length 663 mm
- Orea 50 WT 40/17 - 30 Nm - 17 rpm - length 683 mm
- Orea 50 WT 35/17 - 35 Nm - 17 rpm - length 683 mm
- Orea 50 WT 40/17 - 40 Nm - 17 rpm - length 753 mm
- Orea 50 WT 50/12 - 50 Nm - 12 rpm - length 683 mm
