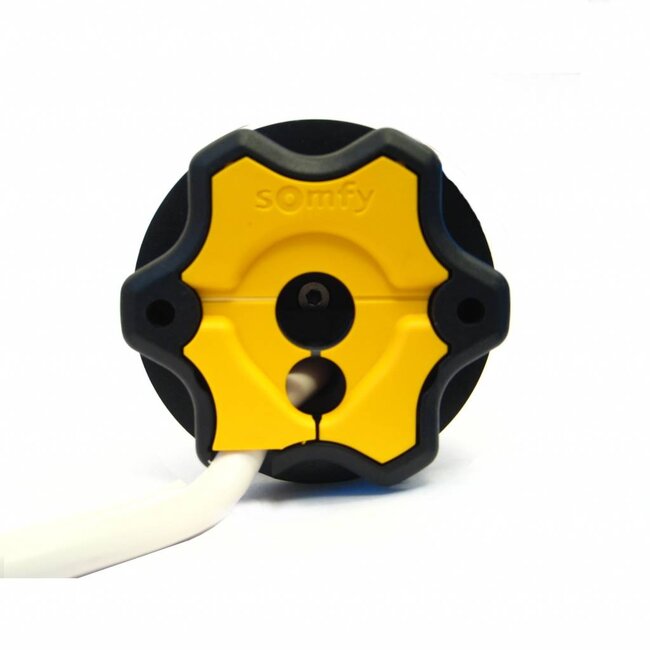

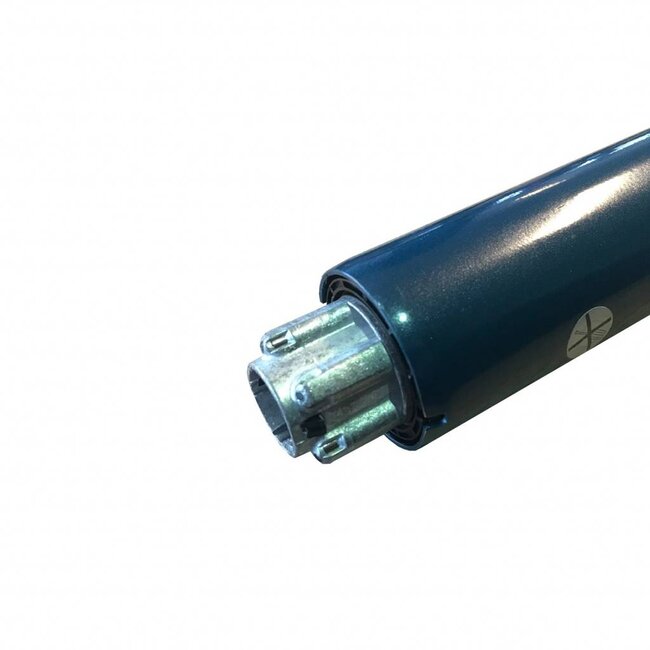

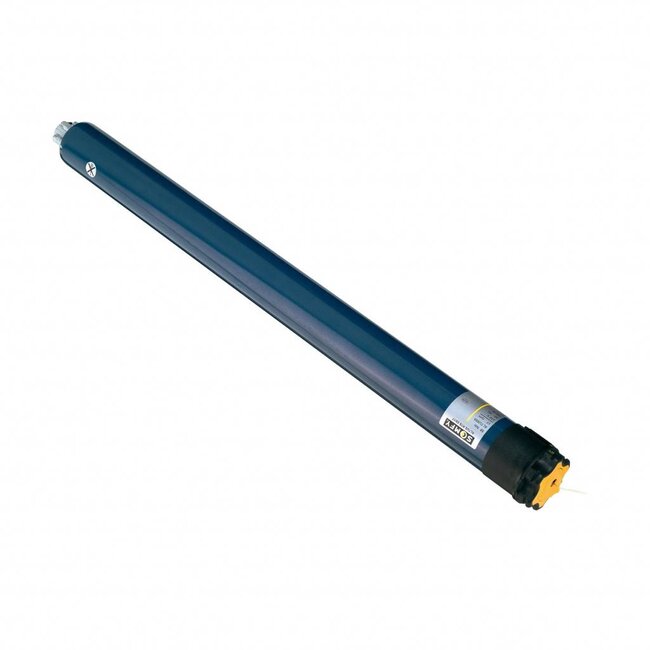

Somfy Orea 60 WT tubular motor for cassette awnings

Somfy Orea 60 WT tubular motor with 12 or 17 rpm, a tubular motor for perfect awning closure (fabric stretch compensation) with torque reduction and immediate interruption of power supply.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available in 55 Nm to 120 Nm
- speeds of 12 and 17 rpm
- a Somfy adjustment cable is required for adjustment
- adjustment without access to the motor head
- applicable with all Somfy controllers
- equipped with fabric stretch compensation
- parallel connection of several motors possible

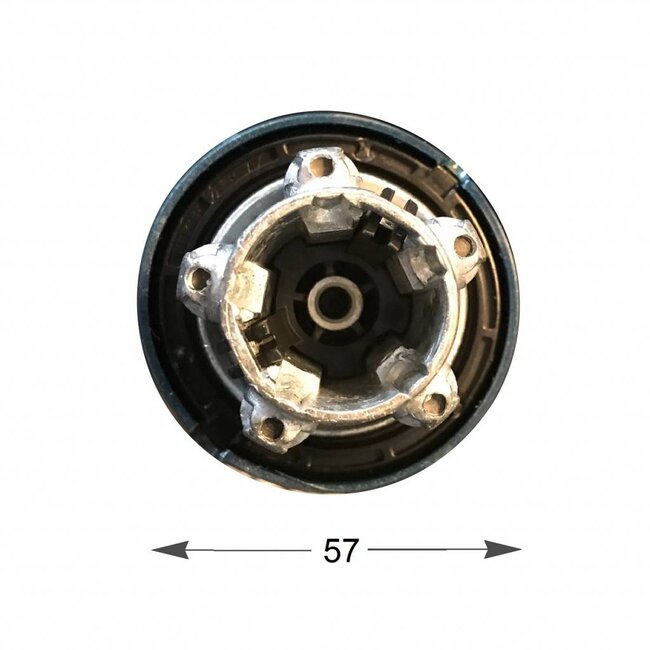

- minimum inside diameter of 60 mm
- final adjustment capacity: 250 revolutions
- running time limited to 4 minutes
- supplied as standard with a white 4-wire (VVF) cable, length 3 m
- axial and radial cable outlet
- not suitable for continuous use and not in combination with free running systems (ABS)

Somfy Orea 60 WT is available in the following models
- Orea 60 WT 55/17 - 55 Nm - 17 rpm - length 470 mm
- Orea 60 WT 70/17 - 70 Nm - 17 rpm - length 470 mm
- Orea 60 WT 85/17 - 85 Nm - 17 rpm - length 470 mm
- Orea 60 WT 100/12 - 100 Nm - 12 rpm - length 470 mm
- Orea 60 WT 120/12 - 120 Nm - 12 rpm - length 470 mm
