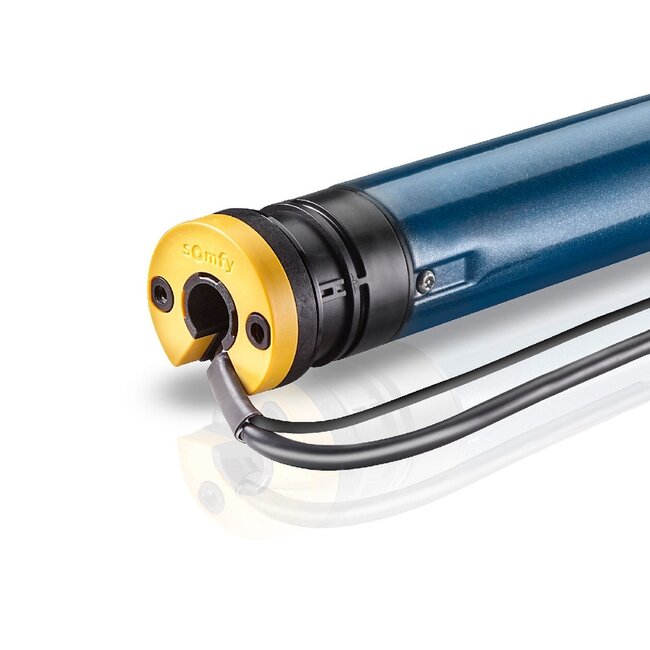

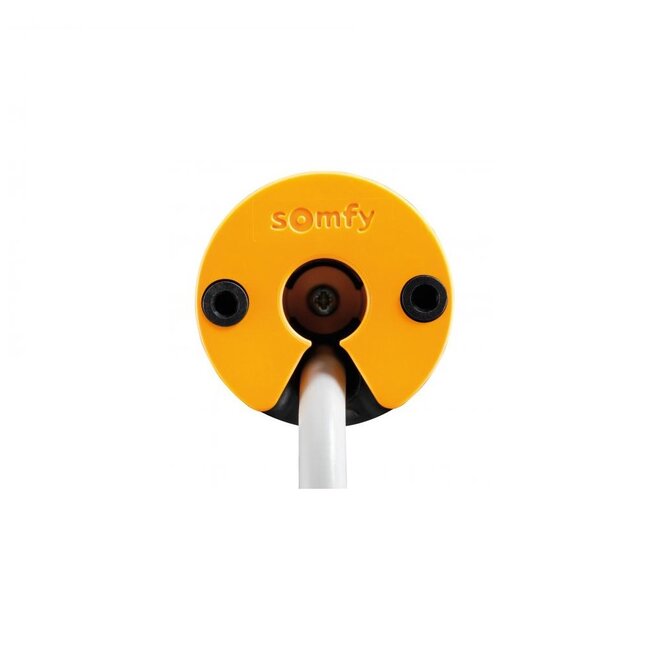

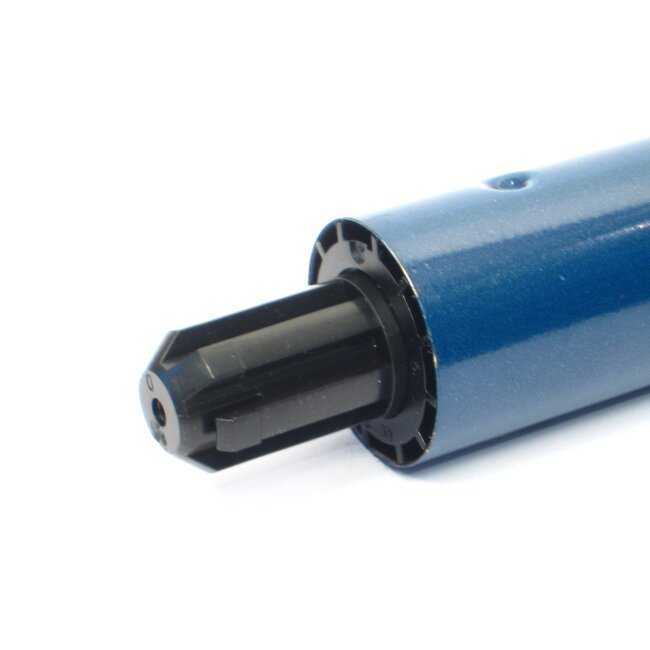

Somfy Oximo 40 WireFree II io roller shutter motor

The Oximo WireFree II io tubular motor is an ultra-efficient shutter motor that runs on sunlight, works day and night and in all weather conditions. Ø40 mm motor equipped with an integrated Somfy io-homecontrol receiver and powered by a separate solar panel and battery.

- Supplied without motor support and adapter set.
- tube motor 12 Volt DC, with built-in high-frequency receiver
- available in the following models:
- Oximo 40 Wirefree II io 3/23, force 3 Nm and speed 23 rpm
- Oximo 40 Wirefree II io 6/18, force 8 Nm and speed 18 rpm
- Oximo 40 Wirefree II io 10/12, force 10 Nm and speed 12 rpm
- with Y cable, item 3626, a 2nd solar module can be connected
- with extension cable, article 3627, solar module can be mounted on e.g. overhang
- transmission range: 20 metres through 2 concrete walls
- simple wireless adjustment with Somfy io remote control
- compatible with all Somfy io controls
- setting of fixed upper and lower end position
- automatic intermediate position pre-programmed as standard to the daylight position
- integrated hindrance detection
- integrated soft-start and dust-stop function increases the lifetime of the tubular motor
- tubular motor can be put in sleep mode during transport
- fits in an 8-sided 40 tube with external bright edge
- one Oximo 40 WireFree II RTS tubular motor can be operated wirelessly with up to 12 transmitters
- cannot be used with relay boxes, standard switches and standard controllers
- not suitable for continuous use
- final adjustment capacity 200 revolutions, operating time limited to 4 min
- a complete atonomous system includes:
- Somfy Oximo 40 io WireFree II shutter motor
- Somfy battery for Oximo 40 WireFree, article 3615
- Somfy solar panel for Oximo 40 WireFree, item 3616
- Somfy charger for Oximo 40 Wirefree, item 3617
- Somfy Handheld transmitter Somfy Situo io 1 or 5, item 4270 or 4275
- with a Tahoma Switch, article 4961 the Motor can be controlled via an app
- recommended wireless controllers
- Nina Timer io home control Remote control, item 2197
- Sunis WireFree II io autonomous sun sensor, item 2285
- Eolis WF (WireFree) io wireless wind sensor, item 4689

Adding a sun Sensor increases the number of cycles per day of the Motor resulting in greater consumption of battery energy

Somfy Oximo 40 WireFree io shutter motor is available in the following versions
- Oximo 40 WireFree II io 3/23 - 3 Nm - 23 rpm - length 470 mm
- Oximo 40 WireFree II io 6/18 - 6 Nm - 18 rpm - length 470 mm
- Oximo 40 WireFree II io 10/12 - 10 Nm - 12 rpm - length 470 mm
