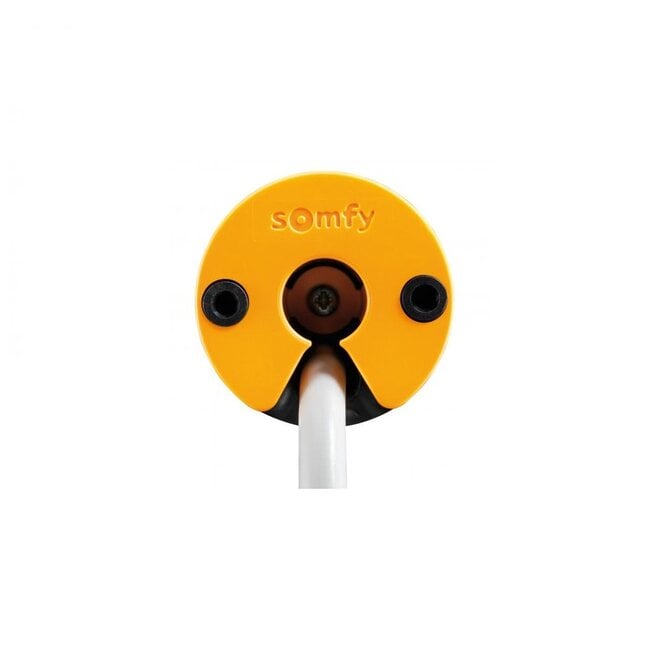

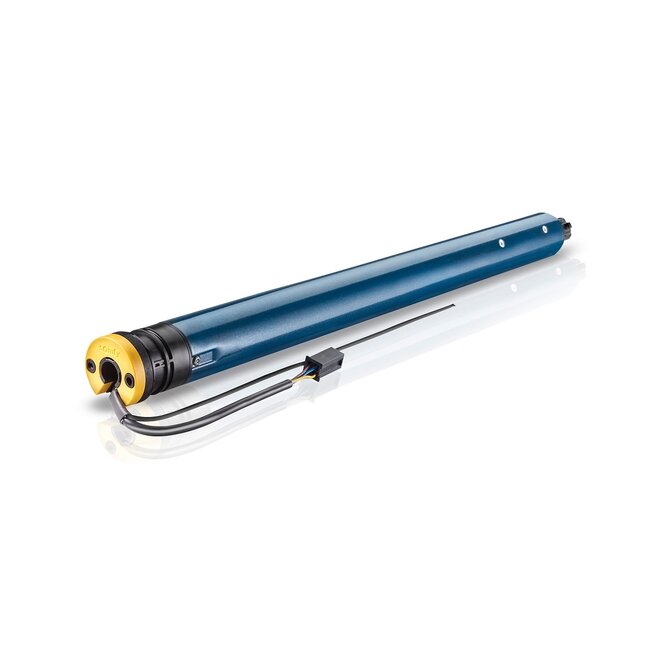

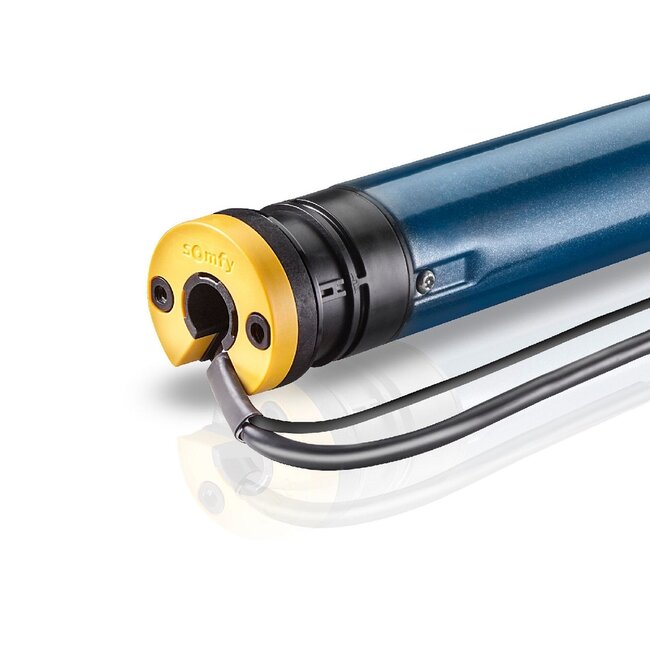

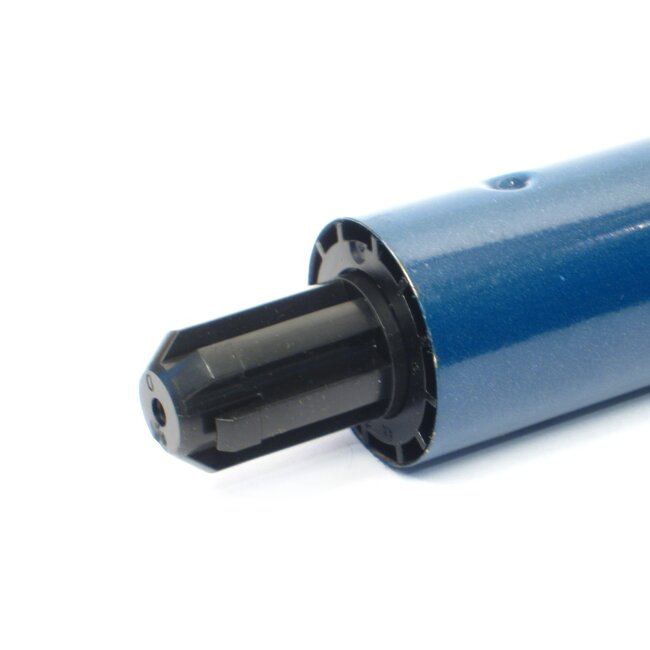

Somfy Oximo 40 WireFree II RTS roller shutter motor
The Oximo WireFree II RTS Motor is a dedicated roller shutter motor powered by a solar panel. A 100% autonomous solution for roller shutters. The ideal solution for motorising roller shutters when it is not possible to bring 230 V to the shutter.
- Supplied without motor support and adapter set.
- tube motor 12 Volt DC, with built-in high-frequency receiver
- available in the following models:
- Oximo 40 Wirefree II RTS 3/23, force 3 Nm and speed 23 rpm
- Oximo 40 Wirefree II RTS 6/18, force 8 Nm and speed 18 rpm
- Oximo 40 Wirefree II RTS 10/12, force 10 Nm and speed 12 rpm
- with Y cable, item 3626, a 2nd solar module can be connected
- with extension cable, article 3627, solar module can be mounted on e.g. overhang
- transmission range: 20 metres through 2 concrete walls
- simple wireless adjustment with Somfy RTS Remote control
- compatible with all Somfy RTS Controls
- setting of fixed upper and lower end position
- automatic intermediate position pre-programmed as standard to the daylight position
- integrated hindrance detection
- integrated soft-start and dust-stop function increases the lifetime of the tubular motor
- tubular motor can be put in sleep mode during transport

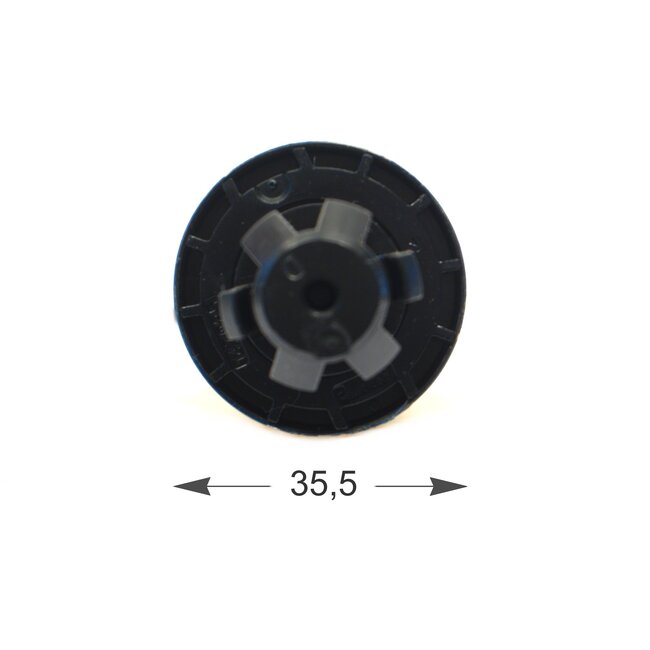

- fits in an 8-sided 40 tube with external bright edge
- one Oximo 40 WireFree II RTS tubular motor can be operated wirelessly with up to 12 transmitters
- cannot be used with relay boxes, standard switches and standard controllers
- not suitable for continuous use
- final adjustment capacity 200 revolutions, operating time limited to 4 min
- a complete atonomous system includes:
- Somfy Oximo 40 RTS WireFree II roller shutter motor
- Somfy battery for Oximo 40 WireFree, article 3615
- Somfy solar panel for Oximo 40 WireFree, item 3616
- Somfy charger for Oximo 40 Wirefree, item 3617
- Somfy Situo 1 or 5 handheld transmitter, item 1506 or 1510
- with a Tahoma Switch the Motor can be controlled via an app
- recommended wireless controllers
- Telis 6 Chronis RTS wireless timer
- stand-alone Sunis indoor WireFree RTS and Sunis WireFree Sensor RTS
- stand-alone sun and temperature sensor Thermosunis WireFree RTS
Adding a sun sensor increases the number of cycles per day of the Motor resulting in greater consumption of battery energy
Somfy Oximo 40 WireFree RTS roller shutter motor is available in the following versions
- Oximo 40 WireFree II RTS 3/23 - 3 Nm - 23 rpm - length 470 mm
- Oximo 40 WireFree II RTS 6/18 - 6 Nm - 18 rpm - length 470 mm
- Oximo 40 WireFree II RTS 10/12 - 10 Nm - 12 rpm - length 470 mm
Download your manuals for Somfy Altus RTS here
- adjusting and programming
- adding an extra Somfy RTS Transmitter
- adjusting end positions
- returning tube motor to factory settings
Somfy RTS tubular motors
All the advantages of wired tube motors plus the benefits of innovative RTS technology. These are the Somfy RTS tubular motors: Altus RTS, Orea RTS and Oximo RTS. Thanks to an integrated
high-frequency receiver, these motors can be controlled with remote controls and wireless wall switches, among others.
Frequency and safety
Somfy RTS applications communicate via the transmission/reception frequency 433.42 MHz. For safety reasons, Somfy transmitter/receiver technology has 16 million varying codes. Up to 12 wireless control points can be set on an RTS tubular motor. No data loss occurs during any power failure.
Flexible
One remote control for several tubular motors? One Switch per tubular motor? Or several Remote controls and Switches for one tubular motor? With Somfy RTS technology, almost any combination between wireless control points and receiver(s) is possible. With a Telis remote control, all settings can be changed continuously, without dismantling the tubular motors.
Intermediate position
A favourite intermediate position can be set on all RTS tube motors. One push on the middle button of the remote control, for example, is then sufficient to reach this position automatically. Think of setting a 'half shade position' for sun blinds or the 'daylight opening' for Roller shutters.
Automatic operation
RTS tubular motors can also be operated automatically, for example via the 'wireless' automatic sun and wind controller Soliris Sensor RTS (for sun blinds) and via the wireless timer Telis 1 or 6 Chronis RTS (for roller shutters). An automatic sun and wind sensor opens and closes the blinds based on fully automatic sun and wind measurement and your personal preferences. With the timer, you program in advance the times you want the roller shutters to open and close. A light function is also possible here - as an extra option.
