Somfy Oximo 40 WireFree II RTS Solar kit

The Oximo WireFree II RTS Motor is a dedicated roller shutter motor powered by a solar panel. A 100% autonomous solution for roller shutters. The ideal solution for motorising roller shutters when it is not possible to bring 230 V to the roller shutter.
This solar kit has all the parts/Components to make your Roller shutter function autonomously.

When ordering the kit, you can specify whether the roller shutter has an 8-angular 40 or 60 mm Axle/Shaft and whether you want a 1-channel, a 5-channel transmitter or no transmitter.

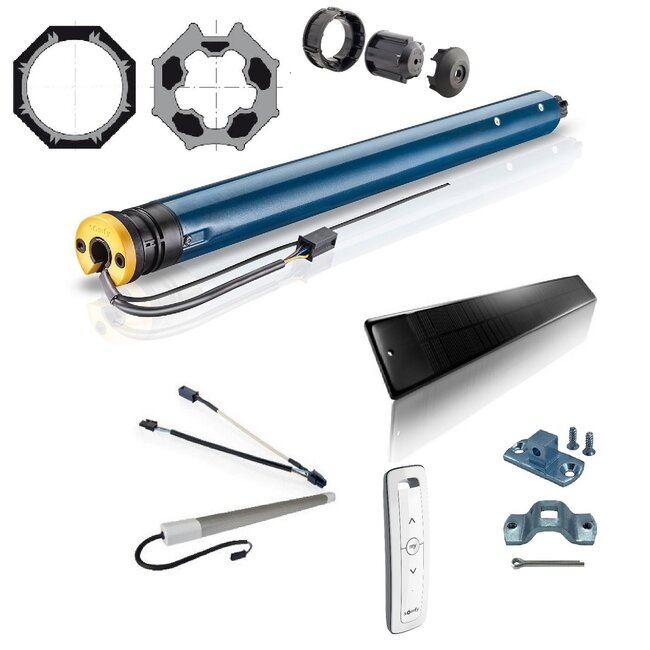

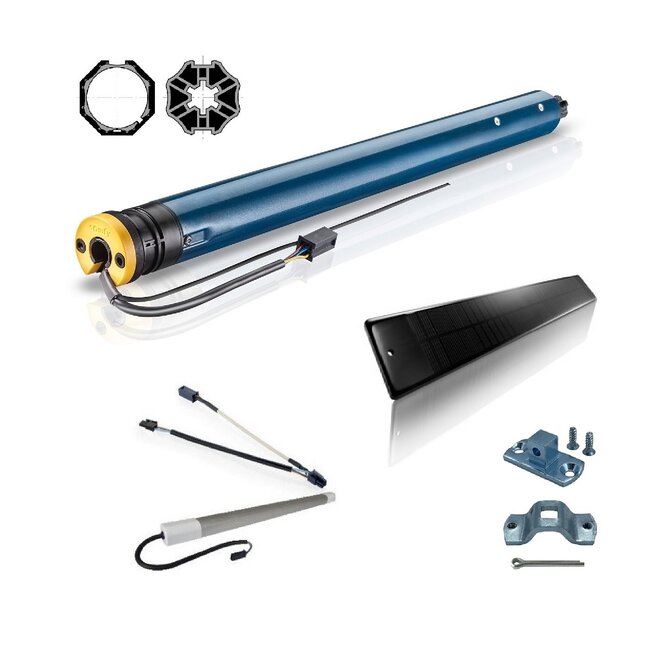

The Roller shutter solar kit consists of:
- Somfy Oximo 40 Wirefree RTS 10/12 tube motor
- battery incl. Y cable
- solar panel
- adapter set 8-side 40
- Motor support

- tubular motor 12 Volt DC, with built-in high-frequency receiver
- force 10 Nm
- speed 12 rpm
- simple wireless adjustment with Somfy RTS remote control
- compatible with all Somfy RTS Controls
- setting of fixed upper and lower end position
- automatic intermediate position preset as standard
- integrated hindrance detection
- integrated soft-start and dust-stop function increases tube motor service life
- tubular motor can be put in sleep mode during transport
- with appropriate adapter set suitable for 8-sided 40 or 60 mm Axle/Shaft
- one Oximo 40 WireFree II RTS tubular motor can be operated wirelessly with up to 12 transmitters
- not suitable for continuous use

Adding a sun sensor increases the number of cycles per day of the Motor, resulting in greater consumption of battery energy

Download your manuals for Somfy Altus RTS here
- adjustment and programming
- adding an extra Somfy RTS Transmitter
- adjusting end positions
- returning tube motor to factory settings

Somfy RTS tubular motors
All the advantages of wired tube motors plus the benefits of innovative RTS technology. These are the Somfy RTS tubular motors: Altus RTS, Orea RTS and Oximo RTS. Thanks to an integrated
high-frequency receiver, these motors can be controlled with remote controls and wireless wall switches, among others.

Frequency and safety
Somfy RTS applications communicate via the transmission/reception frequency 433.42 MHz. For safety reasons, Somfy transmitter/receiver technology has 16 million varying codes. Up to 12 wireless control points can be set on an RTS tubular motor. No data loss occurs during any power failure.

Flexible
One remote control for several tubular motors? One Switch per tubular motor? Or several Remote controls and Switches for one tubular motor? With Somfy RTS technology, almost any combination between wireless control points and receiver(s) is possible. With a Telis remote control, all settings can be changed continuously, without dismantling the tubular motors.

Intermediate position
A favourite intermediate position can be set on all RTS tube motors. One push on the middle button of the remote control, for example, is then sufficient to reach this position automatically. Think of setting a 'half shade position' for sun blinds or the 'daylight opening' for Roller shutters.

Automatic operation
RTS tubular motors can also be operated automatically, for example via the 'wireless' automatic sun and wind controller Soliris Sensor RTS (for sun blinds) and via the wireless timer Telis 1 or 6 Chronis RTS (for roller shutters). An automatic sun and wind sensor opens and closes the blinds based on fully automatic sun and wind measurement and your personal preferences. With the timer, you program in advance the times you want the roller shutters to open and close. A light function is also possible here - as an extra option.
