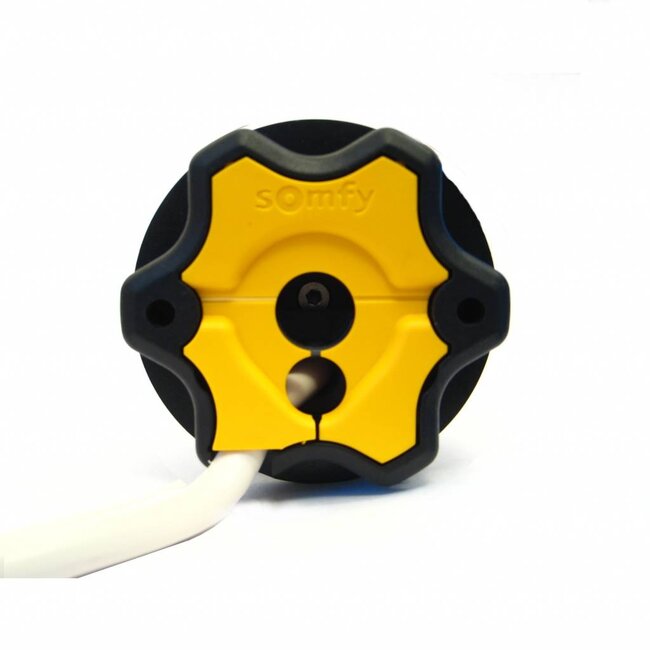

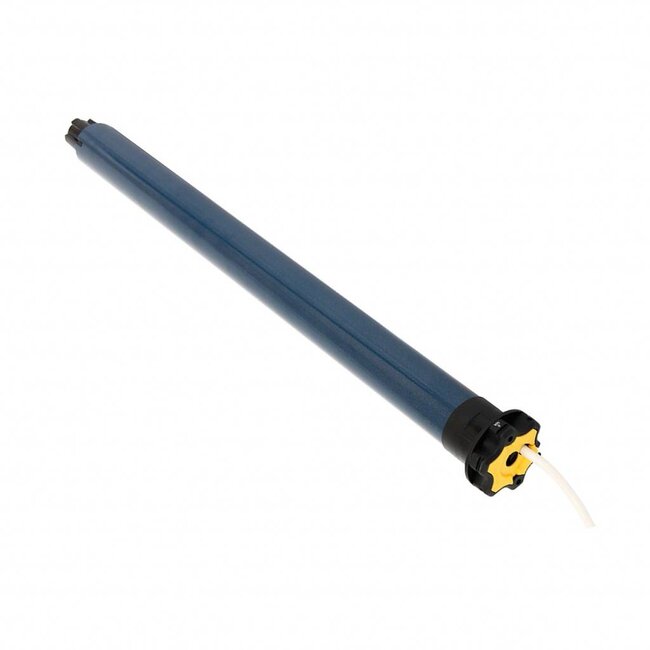

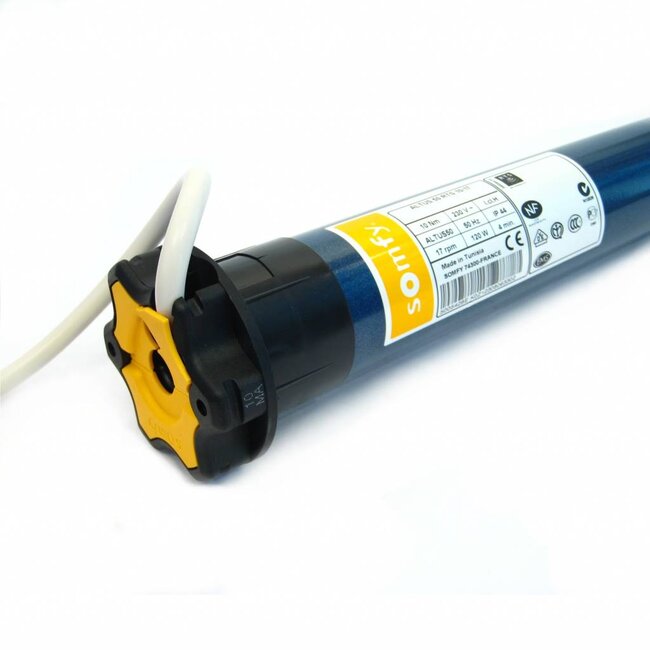

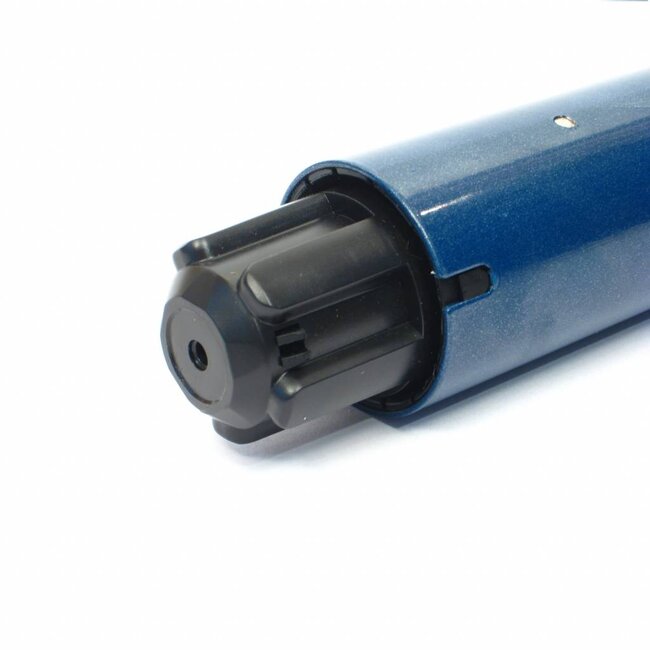

Somfy Oximo 50 io tubular motor for Roller shutters

Somfy Oximo 50 io universal tube motor with integrated receiver for all different types of Roller shutters. A short motor is also available for narrow Roller shutters. This Oximo S Auto io Motor can automate roller shutters with an outer dimension of 425 mm.

- Supplied without motor support and adapter set.
- Tubular motor 230 V/50 Hz, with built-in high-frequency Somfy io receiver
- available in 6 to 40 Nm

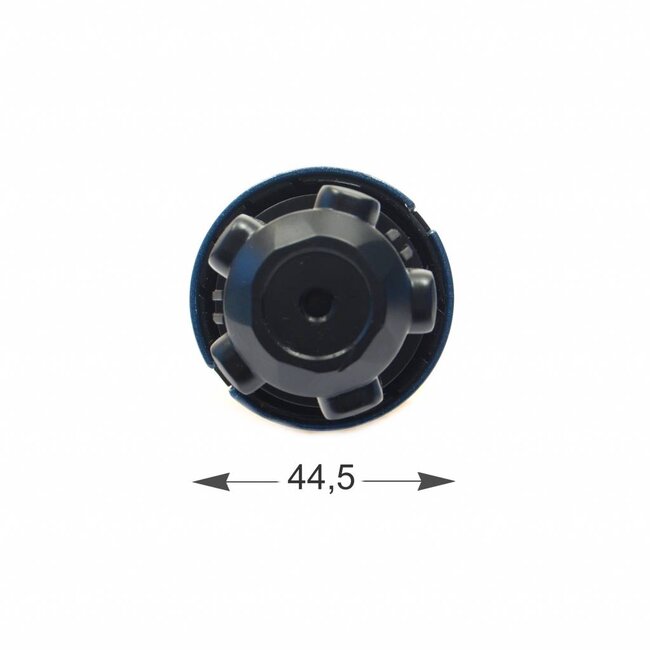

- series Oximo 50 io fits in a tube with a minimum inner diameter of 47 mm
- speed 17 rpm
- total motor length between 613 and 753 mm
- reception range: 20 metres through 2 concrete walls, can be doubled by using a
repeater
- simple wireless adjustment by remote control
- intelligent hindrance detection in both the up and down direction, when Roller shutter
is equipped with stoppers and rigid joints
- Motor stops automatically in case of an obstacle or freezing
- automatic maintenance cycle (monthly with automatic end-point adjustment)
as a result of which the Roller Shutter always opens and closes perfectly
- possibility of combination with wireless timer (Chronis io or Nina Timer io)
- automatic intermediate position pre-programmed as standard to the daylight position
- one Oximo io tubular motor can be operated wirelessly with up to 9 1-way controllers
and an infinite number of 2-way controls
- not applicable with relay boxes, standard switches and standard controllers
- final adjustment capacity: operating time limited to 3 min.
- supplied as standard with a white 3-wire (VVF) cable, length 5 metres Axial and
radial cord outlet
- recommended wireless control:
- Smoove 1 A/M io wall transmitter
- Nina io as central controller
- Chronis io or Nina Timer io as timing control
- Connexoon io as control via an app or in combination with the sun sensor
- TaHoma
- not suitable for continuous use

Somfy Oximo 50 io tubular motors are available in the following versions
- Oximo 50 io 6/17 - 6 Nm - 17 rpm - length 613 mm
- Oximo 50 io 10/17 - 10 Nm - 17 rpm - length 663 mm
- Oximo 50 io 15/17 - 15 Nm - 17 rpm - length 663 mm
- Oximo 50 io 20/17 - 20 Nm - 17 rpm - length 663 mm
- Oximo 50 io 30/17 - 30 Nm - 17 rpm - length 683 mm
- Oximo 50 io 40/17 - 40 Nm - 17 rpm - length 753 mm

io-homecontrol® - the intelligent solution for maximum home comfort
io-homecontrol® controls the entire house, i.e. not only Roller shutters, blinds and garage doors, but also the front door, skylights, windows, heating, lighting and ventilation. The 2-way radio technology informs the user, is operationally reliable and becomes the new standard on the market.

Somfy io-homecontrol® tubular motors
These motors have all the advantages of existing RTS motors + the benefits offered by io-homecontrol. An extensive range of motors will be available in 2017. These motors can be controlled by any io-homecontrol® 1-way or 2-way control. We recommend programming a local control (1-way) per motor. On the 2-way remote controls or in the app, the consumer receives feedback on whether the requested command was executed or other information that makes it easy for him to understand the operation.

Frequency and safety
2-way io-homecontrol® products can communicate on 3 different frequencies between 868 and 870 MHz. If the frequency used is not free, it is automatically switched to another frequency. The 1-way products only communicate on the 868 MHz frequency. Power failure does not affect stored data.

Flexibility
The 1-way remote controls are designed to control one Motor. The 2-way controls are group or central controls where the consumer receives feedback via an LED, via pictograms, via text or via sound. Sun and wind sensors operate the products automatically. Automatic operation can easily be blocked using the Smoove 1 A/M io, a Situo 5 VAR A/M io or in the app.
