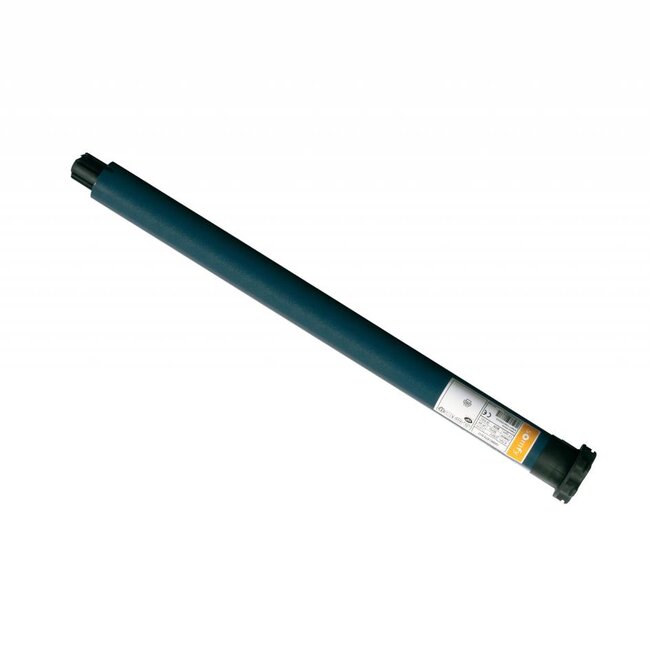

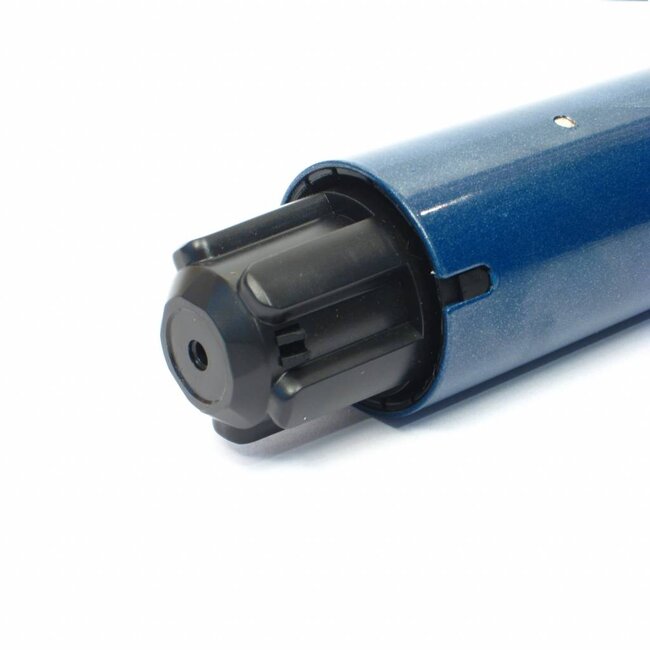

Somfy Oximo 50 RTS roller shutter motor
Somfy Oximo 50 RTS is a tubular motor especially for roller shutters. If the roller shutter is equipped with rigid joints, the Motor can adjust itself automatically. Equipped with intelligent obstacle detection throughout the entire up and down direction. As a result, the Motor blocks for instance when the window is open or freezing, without damaging the Motor or Roller Shutter. Also features a monthly automatic maintenance cycle.
- Supplied without motor support and adapter set
- power supply 230 Volt / 50 Hz
- tubular motor with built-in Somfy RTS receiver
- successor of the Somfy Ipso VR50 or VR 50
- available in 6 Nm to 40 Nm
- adapters and carriers of Somfy 50 series
- Due to the fully automatic adjustment, the Motor requires no adjustment and switches off
the motor stops on the measured resistance.
- quick and easy adjustment and operation with wireless RTS control point, e.g. Telis
Remote control

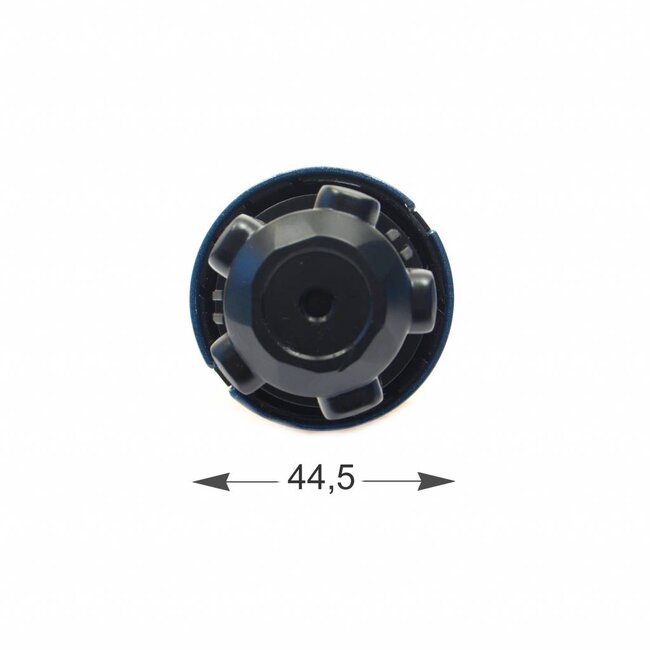

- fits in a tube with a minimum inner diameter of 47 mm
- capacity of the final adjustment: 200 revolutions, runtime limited to 4 min.

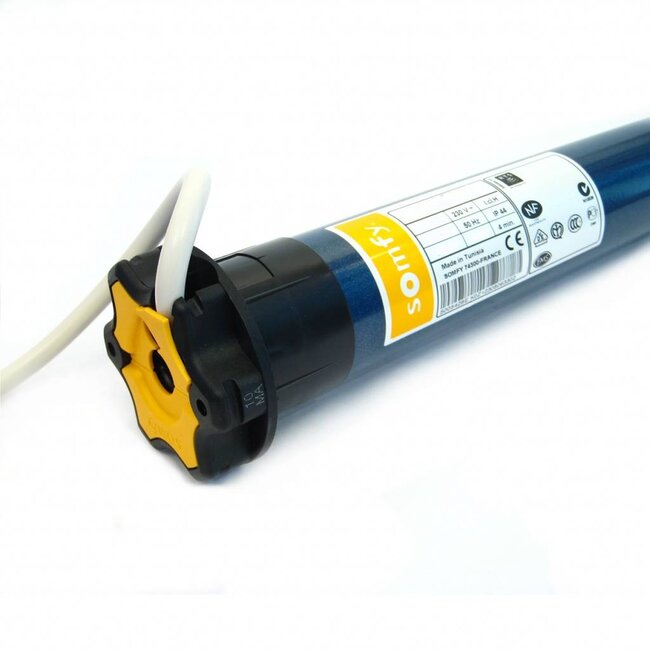

- supplied as standard with a white 3-wire (VVF) cable, length 3 m. Axial and
radial cord outlet
- not suitable for continuous use
- intelligent obstacle detection in both the up and down direction
- Motor stops when obstacle or freezing occurs
- automatic maintenance cycle (monthly when end points are set automatically)
as a result of which the Roller Shutter always opens and closes perfectly
- Parallel connection of motors possible
- not applicable with standard suspension springs, only with rigid connection to Axle/Shaft
- recommended wireless control:
- Chronis Comfort RTS radio timer with/without light sensor
- atonomous sun sensor Sunis Indoor WireFree RTS
- autonomous sun and temperature sensor Thermosunis WireFree RTS
Download your manuals Somfy Oximo RTS here
- adjusting and programming
- adding an extra Somfy RTS Transmitter
- adjusting end position
- reset tube motor to factory settings
Somfy Oximo 50 RTS tubular motor is available in the following models
- Oximo RTS 6/17 - 6 Nm - 17 rpm - length 613 mm
- Oximo RTS 10/17 - 10 Nm - 17 rpm - length 663 mm
- Oximo RTS 15/17 - 15 Nm - 17 rpm - length 663 mm
- Oximo RTS 20/17 - 20 Nm - 17 rpm - length 663 mm
- Oximo RTS 30/17 - 30 Nm - 17 rpm - length 683 mm
- Oximo RTS 40/17 - 40 Nm - 17 rpm - length 753 mm
Somfy RTS tubular motors
All the advantages of wired tubular motors plus the benefits of innovative RTS technology. These are the Somfy RTS tubular motors: Altus RTS, Orea RTS and Oximo RTS. Thanks to an integrated
high-frequency receiver, these motors can be controlled with remote controls and wireless wall switches, among others.
Frequency and safety
Somfy RTS applications communicate via the transmission/reception frequency 433.42 MHz. For safety reasons, Somfy transmitter/receiver technology has 16 million varying codes. Up to 12 wireless control points can be set on an RTS tubular motor. No data loss occurs during any power failure.
Flexible
One Remote control for several tubular motors? One Switch per tubular motor? Or several Remote controls and Switches for one tubular motor? With Somfy RTS technology, almost any combination between wireless control points and receiver(s) is possible. With a Telis remote control, all settings can be changed continuously, without dismantling the tubular motors.
Intermediate position
A favourite intermediate position can be set on all RTS tube motors. One push on the middle button of the remote control, for example, is then sufficient to reach this position automatically. Think of setting a 'half shade position' for sun blinds or the 'daylight opening' for Roller shutters.
Automatic operation
RTS tubular motors can also be operated automatically, for example via the 'wireless' automatic sun and wind controller Soliris Sensor RTS (for sun blinds) and via the wireless timer Telis 1 or 6 Chronis RTS (for roller shutters). An automatic sun and wind sensor opens and closes the blinds based on fully automatic sun and wind measurement and your personal preferences. With the timer, you program in advance the times you want the roller shutters to open and close. A light function is also possible here - as an extra option.
