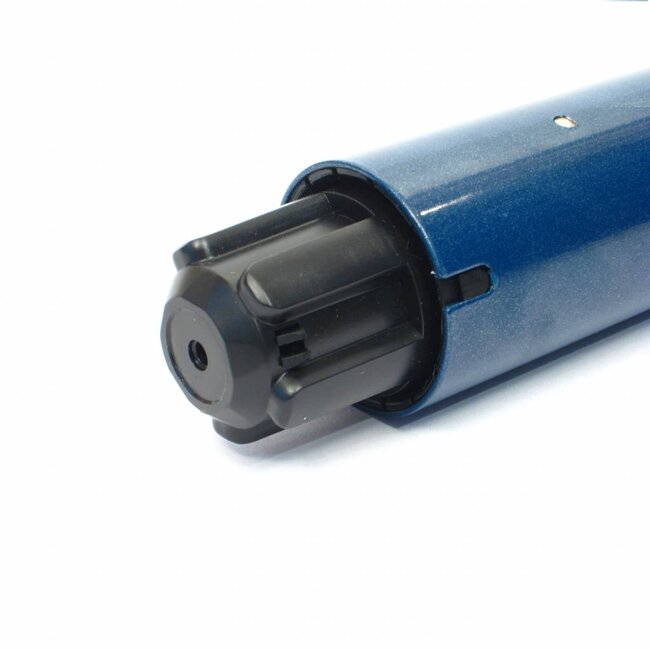

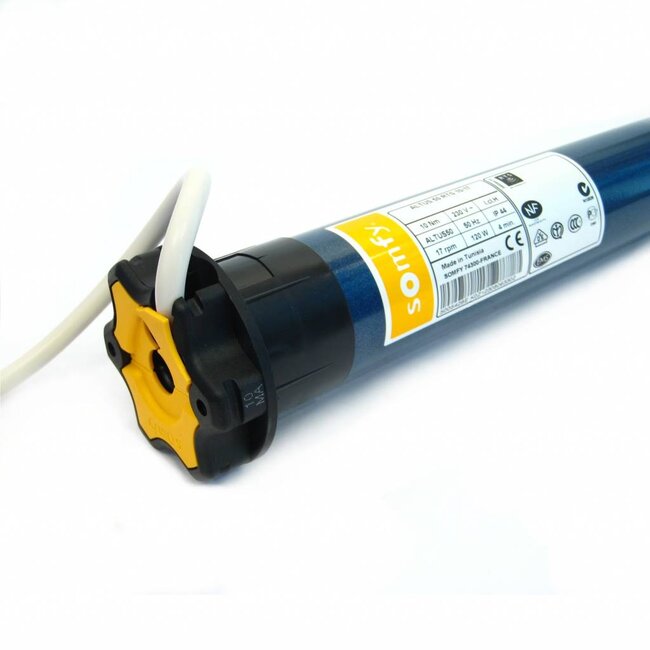

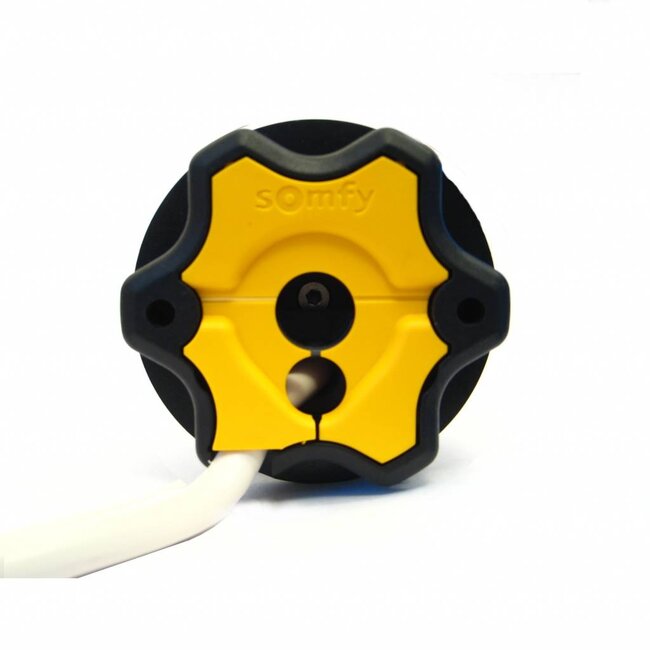

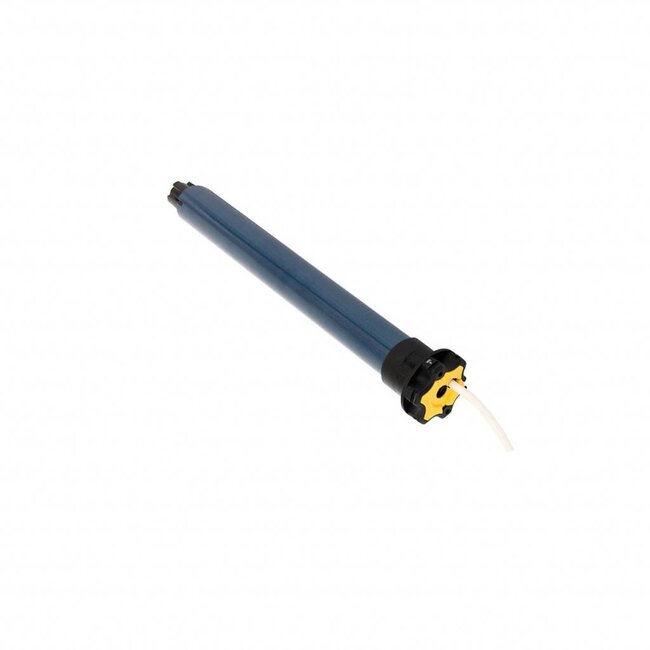

Somfy Oximo 50 S Auto io roller shutter motor with adapters and carriers of Somfy 50 series. Suitable for Axle/Shaft with inner diameter of 47 mm. 17 rpm. Read more.
Somfy Oximo 50 S Auto io universal short tube motor with integrated receiver for Roller shutters from 425 mm width, equipped with stoppers and rigid joints.
- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz, with built-in high-frequency Somfy io receiver
- available in 6 Nm
- series Oximo S 50 io fits in a tube with a minimum inner diameter of 47 mm
- speed 17 rpm
- total motor length 375 mm
- can motorise a Roller shutter from 425 mm width thanks to the short Axle prop
- feedback of the executed commands to 2-way control points
- receiving range: 20 metres through 2 concrete walls, can be doubled by means of a
repeater
- no adjustment required, only setting of direction of rotation
- possibility of combination with wireless timer (Chronis io or Nina timer io)
- automatic intermediate position pre-programmed as standard to the daylight position
- one Oximo io tubular motor can be operated wirelessly with up to 9 1-way controllers
and an infinite number of 2-way controls
- not applicable with relay boxes, standard switches and standard controllers
- final adjustment capacity 200 revolutions, operating time limited to 3 min
- supplied as standard with a white 3-wire (VVF) cable, length 5 metres Axial and
radial cable outlet
- intelligent hindrance detection in both the up and down direction. Attention before
unrolling of the roller shutter blade in the roller shutter box
- Motor blocks in case of obstacle or freezing
- recommended wireless control:
- Smoove 1 A/M io
- Chronis io and Nina Timer io
- TaHoma and connexoon io
- Nina io
- fast mounting thanks to unique clip system
- compatible with the Sunis WireFree (II) Sensor io with Connexoon io and TaHoma
- not suitable for continuous use
io-homecontrol® - the intelligent solution for maximum home comfort
io-homecontrol® controls the whole house, i.e. not only Roller shutters, blinds and garage doors, but also the front door, skylights, windows, heating, lighting and ventilation. The 2-way radio technology informs the user, is operationally reliable and becomes the new standard on the market.
Somfy io-homecontrol® tubular motors
These motors have all the advantages of existing RTS motors + the benefits offered by io-homecontrol. An extensive range of motors will be available in 2017. These motors can be controlled by any io-homecontrol® 1-way or 2-way control. We recommend programming a local control (1-way) per motor. On the 2-way remote controls or in the app, the consumer receives feedback on whether the requested command was executed or other information that makes it easy for him to understand the operation.
Frequency and safety
2-way io-homecontrol® products can communicate on 3 different frequencies between 868 and 870 MHz. If the frequency used is not free, it is automatically switched to another frequency. The 1-way products only communicate on the 868 MHz frequency. Power failure does not affect stored data.
Flexibility
The 1-way remote controls are designed to control one Motor. The 2-way controls are group or central controls where the consumer receives feedback via an LED, via pictograms, via text or via sound. Sun and wind sensors operate the products automatically. Automatic operation can be easily blocked using the Smoove 1 A/M io, a Situo 5 VAR A/M io or in the app.
