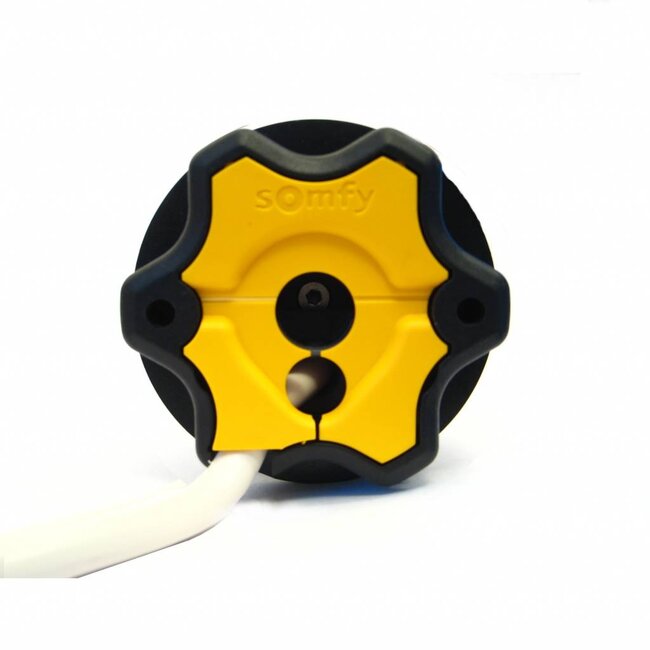

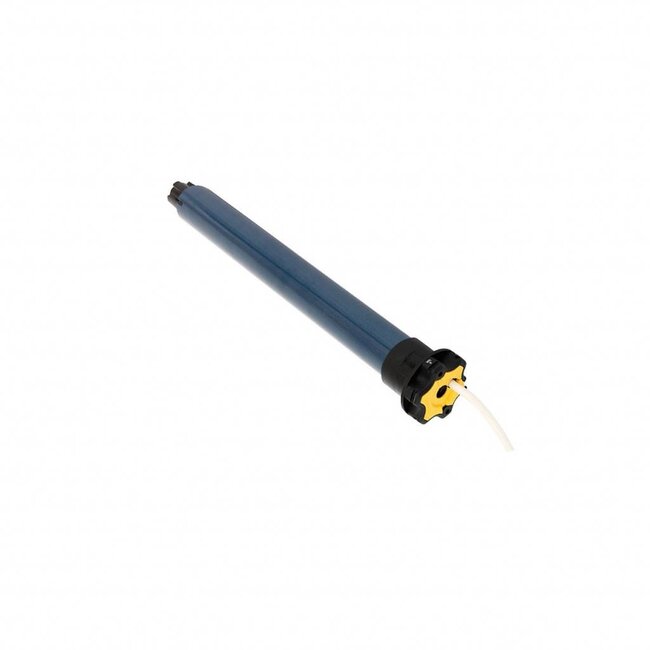

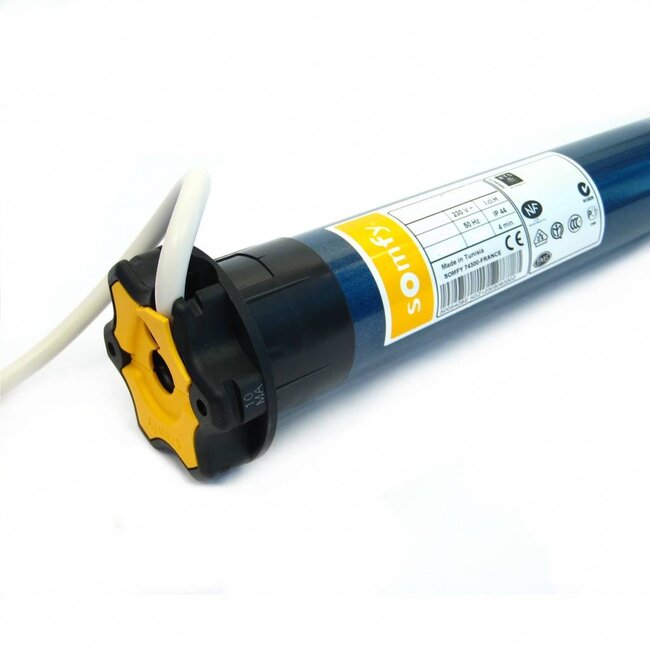

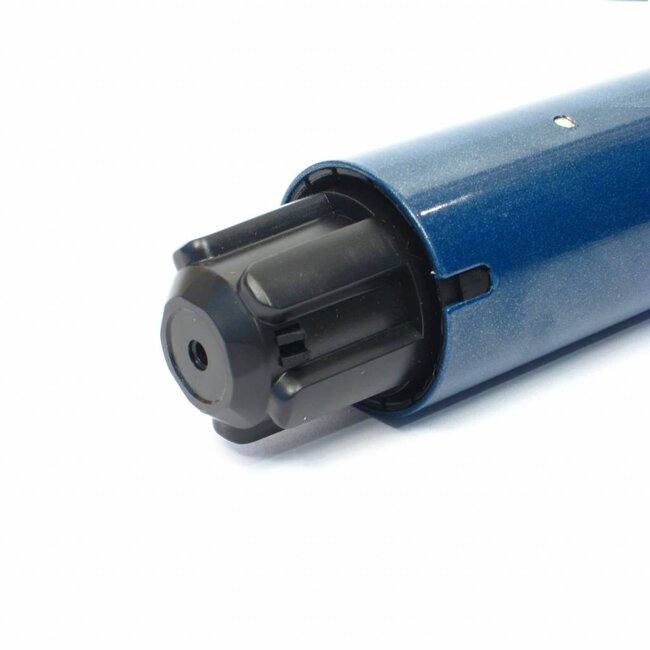

Somfy Oximo 50 S Auto RTS short tube motor for Roller shutters equipped with stopper and rigid joints

- supplied without motor support and adapter set
- tubular motor 230 V/50 Hz with external platine with built-in high-frequency receiver
- available in 6 Nm with 17 rpm
- reception range is approximately 20 metres through 2 concrete walls
- no adjustment required, only setting the direction of rotation
- attention tubular motor only works with rigid connections, not with standard suspension springs
- possibility of combination with wireless timer
- automatic intermediate position pre-programmed as standard to the daylight position
- 1 Oximo S Auto RTS tubular motor can be operated wirelessly with up to 12
wireless control points
- cannot be used with relay boxes, standard switches and standard controls

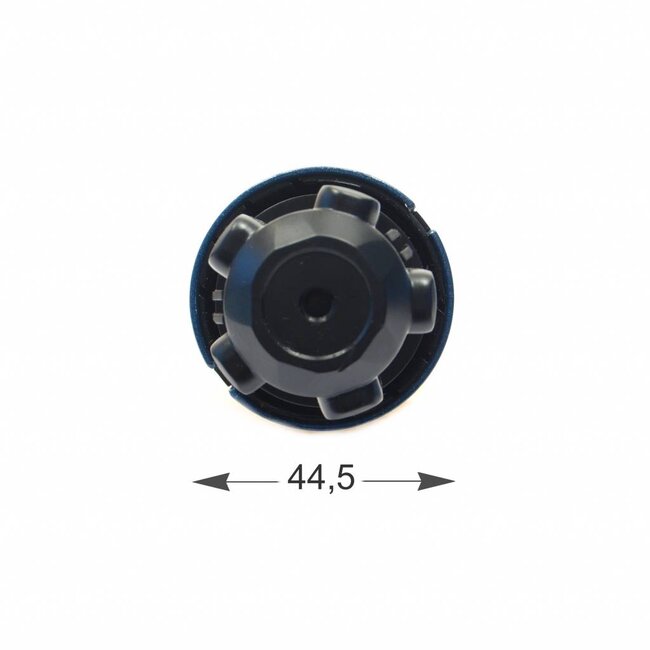

- fits in a tube with a minimum inner diameter of 47 mm
- final adjustment capacity: operating time limited to 3 min.
- supplied as standard with module Oximo RTS, with a 3-wire (VVF) cable, length 3 m
and a cable with motor plug
- not suitable for continuous use.
- can motorise a Roller shutter from 425 mm width thanks to the short Axle prop
- intelligent obstacle detection in both the up and down direction
- Motor stops when obstacle or freezing occurs
- recommended wireless control:
- Telis 1 or 6 wireless timer
- chronis RTS
- Sunis indoor RTS autonomous sun sensor
- Thermosunis RTS independent sun and temperature sensor
- fast assembly thanks to unique clip system
- for private use only
- compatible with the Sunis Sensor RTS

Somfy Oximo 50 S Auto RTS Motor is only available in the following versions
- Oximo S Auto RTS 6/17 - 6 - 17 rpm - length 375 mm

Somfy RTS tubular motors
All the advantages of wired tubular motors plus the benefits of innovative RTS technology. Those are the Somfy RTS tubular motors: Altus RTS, Orea RTS and Oximo RTS. Thanks to an integrated
high-frequency receiver, these motors can be controlled with remote controls and wireless wall switches, among others.

Frequency and safety
Somfy RTS applications communicate via the transmission/reception frequency 433.42 MHz. For safety reasons, Somfy transmitter/receiver technology has 16 million varying codes. Up to 12 wireless control points can be set on an RTS tubular motor. No data loss occurs during any power failure.

Flexible
One remote control for several tubular motors? One Switch per tubular motor? Or several Remote controls and Switches for one tubular motor? With Somfy RTS technology, almost any combination between wireless control points and receiver(s) is possible. With a Telis remote control, all settings can be changed continuously, without dismantling the tubular motors.

Intermediate position
A favourite intermediate position can be set on all RTS tube motors. One push on the middle button of the remote control, for example, is then sufficient to reach this position automatically. Think of setting a 'half shade position' for sun blinds or the 'daylight opening' for Roller shutters.

Automatic operation
RTS tubular motors can also be operated automatically, for example via the 'wireless' automatic sun and wind controller Soliris Sensor RTS (for sun blinds) and via the wireless timer Telis 1 or 6 Chronis RTS (for roller shutters). An automatic sun and wind sensor opens and closes the blinds based on fully automatic sun and wind measurement and your personal preferences. With the timer, you program in advance the times you want the roller shutters to open and close. A light function is also possible here - as an extra option.
